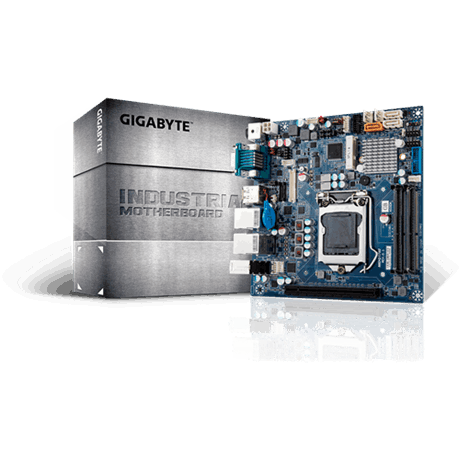

| Form Factor |
Mini-ITX
170W x 170D (mm) |
| Operating Properties |
Operating temperature: -10°C to 60°C
Operating humidity: 0-85% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-85% (non-condensing) |
| CPU |
Supports for Intel® Core™ i7 processors
Intel® Core™ i5 processors
Intel® Core™ i3 processors
Intel® Pentium® processors
Intel® Celeron® processors
L3 cache varies with CPU |
| Socket |
1 x LGA 1151 |
| Chipset |
Intel® Q170 Express Chipset |
| Memory |
2 x SO-DIMM slots
1.2V DDR4 memory module
Dual channel memory architecture
Up to 32GB
DDR4 2133MHz |
| LAN |
2 x GbE LAN ports (Intel® I219LM + Intel® I211AT) |
| Video |
Intel® HD Graphics supports triple display
1 x DisplayPort up to 4096 x 2304 @60Hz
* Support for DisplayPort 1.2 version
1 x HDMI port up to 4096 x 2160 @24Hz
* Support for HDMI 1.4 version
1 x LVDS connector up to 1920 x 1200 @60Hz
* Support for up to 3 displays at the same time |
| Audio |
Realtek ALC269 codec
High Definition Audio
2 channels |
| SATA |
3 x SATA 6Gb/s ports
One port with SATA DOM supported
1 x M.2 slot:
- M-key
- SATA 6Gb/s or PCIe 3.0 x4
- Supports NGFF-2242/2280 |
| RAID |
Intel® SATA RAID 0, RAID 1, RAID 5, and RAID 10 |
| Expansion Slots |
1 x PCIe x16 (Gen3 x16 bus) slot
1 x Mini PCI-e x1 slot:
- Supports mSATA & wifi cards |
| Internal I/O |
1 x 4 pin (2 x 2) power connector
3 x SATA 6Gb/s ports
1 x eDP connector
1 x LVDS 18/24bit connector
1 x CPU fan header
1 x System fan header
1 x USB 3.0 headers
2 x USB 2.0 headers ( 4 x ports)
1 x Front panel header
1 x Front audio header
1 x LCD selection jumper
1 x Clear CMOS jumper
1 x TPM header
1 x COM_1 header (RS232 / RS422 / RS485, RI / 5V / 12V) |
| Rear I/O |
1 x 12V-24V DC-in with key lock
2 x RJ45
4 x USB 3.0
1 x HDMI 1.4
1 x DisplayPort 1.2
1 x D-sub VGA
1 x COM_2 header (RS232 / RS422 / RS485, RI / 5V / 12V)
1 x Line-in
1 x Line-out
1 x MIC-in |
| TPM |
1 x TPM header for TPM 2.0 module
TPM module in option |
| OS Supported |
Windows 10 (x64)
Windows 8.1 (x64)
Windows 8 (x64)
Windows 7 (x32 / x64)
- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7 |
| PSU Connectors |
1 x 12-24V DC-in or
1 x 4 pin (2 x 2) power connector |
| Packaging Content |
1 x Quick Installation Guide
1 x IO shielding |
| Ordering Information |
9MDQ17BINR-SI
20 units per carton
Packaging dimensions: 550 x 451 x 330 mm |
