| Form Factor |
microATX
244W x 244D (mm) |
| CPU |
AppliedMicro® X-Gene 1 processor
ARMv8 architecture
8 cores
2.4 GHz
45W max. TDP |
| Socket |
- |
| Chipset |
- |
| Memory |
8 x DIMM slots
Quad channel memory architecture
ECC RDIMM/UDIMM modules supported
Single, dual rank UDIMM modules up to 8GB supported
Supported speeds:
- 1 DIMM per channel: up to 1600 MHz
- 2 DIMM per channel: up to 1333 MHz |
| LAN |
2 x 10GbE SFP+ LAN ports (integrated)
2 x GbE LAN ports (Marvell® 88E1512)
1 x 10/100/1000 management LAN |
| Video |
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Audio |
- |
| SAS |
- |
| SATA |
4 x SATA III 6Gb/s ports |
| RAID |
- |
| Expansion Slots |
2 x PCIe x16 (Gen3 x8 bus) slots |
| Internal I/O |
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA III 6Gb/s ports
1 x CPU fan header
4 x System fan headers
1 x SD card slot
1 x USB 2.0 header
2 x Front panel headers
1 x APM strap header
1 x HDD back plane board header
1 x PMBUS header
1 x BMC JTAG header
1 x JTAG PLD header
1 x BIOS_H header
1 x Chassis intrusion header
1 x SATA DOM jumper
1 x BIOS recovery jumper
1 x ACK selection jumper
1 x IPMB connector |
| Rear I/O |
2 x USB 2.0
1 x VGA
1 x Serial
2 x SFP+
3 x RJ45
1 x ID button with LED
1 x Power button with LED
1 x Status LED |
| TPM |
- |
| OS Supported |
Open Linux (included) |
| Board Management |
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| PSU Connectors |
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector |
| Operating Properties |
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Content |

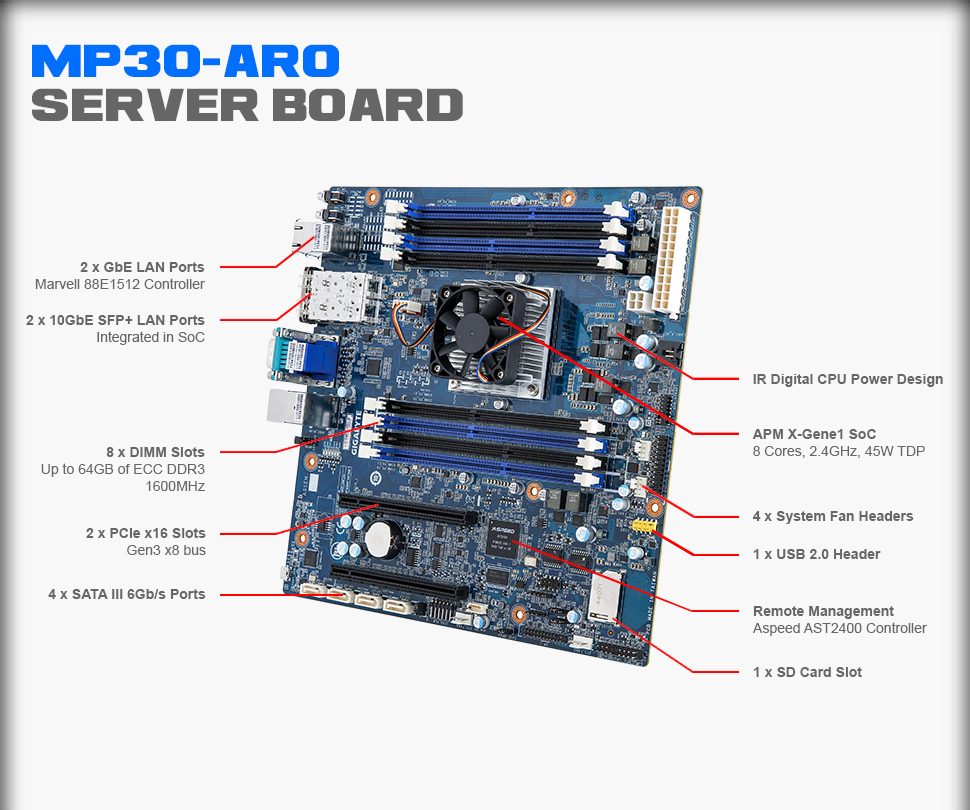

1 x MP30-AR0
1 x I/O shield
4 x SATA III 6Gb/s cables
Box dimensions: 321 x 308.5 x 78.5 mm |
| Bulk Packaging Content |
10 x MP30-AR0
10 x I/O shields
Box dimensions : 600 x 386 x 368 mm |
| Reference Numbers |
Retail: 9MP30AR0MR-00
Bulk: 9MP30AR0NR-00 |
