| Form Factor |
Thin Mini-ITX
170W x 170D (mm) |
| Operating Properties |
Operating temperature: -10°C to 60°C
Operating humidity: 0-85% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-85% (non-condensing) |
| CPU |
Supports AMD A series APU or Athlon™ series CPU |
| Socket |
1 x FM2+ |
| Chipset |
AMD A75 |
| Memory |
2 x SO-DIMM DDR3/DDR3L slots
Dual channel memory architecture
Up to 16GB
1.35V, 1.5V modules: 1600/1866/2133 MHz |
| LAN |
1 x GbE LAN port (Realtek RTL8111G) |
| Video |
APU with integrated AMD Radeon HD 8000/7000 series graphics:*To use the onboard graphics ports, you must install an AMD APU with integrated graphics.
1 x DisplayPort supports a maximum resolution of 2560 x 1600
1 x HDMI supports a maximum resolution of 4096 x 2160
Onboard LVDS supports a maximum resolution of 1920 x 1080 @ 24Hz
Maximum shared memory of 2 GB |
| Audio |
Realtek ALC887 codec
Supports 2/4/5.1/7.1 channels |
| SAS |
- |
| SATA |
4 x SATA III 6Gb/s ports |
| RAID |
AMD SATA RAID 0/1/10 |
| Expansion Slots |
1 x PCIe x4 (3.0 x4 bus)
1 x mSATA slot supports SATA 6Gb/s
1 x Half-size Mini-PCIe slot |
| Internal I/O |
1 x 2-pin 19V ATX power connector
1 x LVDS 18/24bit connector
1 x 80H connector
1 x 15-pin SATA power connector
4 x SATA III 6Gb/s ports
1 x CPU fan header
1 x System fan header
3 x USB 2.0 headers (for 5 x USB 2.0 ports)
1 x Front audio header
1 x Digital MIC header
1 x Front panel header
1 x Speaker header
1 x Serial header
1 x Monitor switch header
1 x Backlight header
1 x FPD header
1 x FPD power jumper
1 x LCD voltage selection jumper
1 x Clear CMOS jumper |
| Rear I/O |
1 x DC-in
1 x RJ45
1 x DisplayPort v1.2
1 x HDMI v1.4
4 x USB 3.0
1 x Line-out
1 x MIC-in |
| TPM |
- |
| OS Supported |
Windows 8.1 (x64)
Windows 7 (x32/x64) |
| PSU Connectors |
1 x 2-pin 19V ATX power connector |
| Power Supply |
DC-in 19V / 12V |
| Packaging Content |

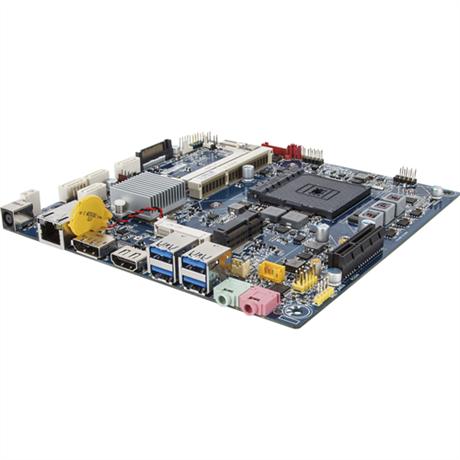

1 x M9M3XAI
1 x I/O shield
1 x SATA power cable |
| Ordering Information |
9M9M3XAINR-SI
20 units per carton
Packaging dimensions: 550 x 451 x 330 mmSpare parts:
- I/O shield: 12AIO-H77TN4-00R
- SATA power cable: 25CRI-710300-S8R |
