| Form Factor |
Mini-ITX
170W x 170D (mm) |
| CPU |
Intel® Xeon® D-1521 processor
4 cores, 8 threads
2.4 - 2.7 GHz
6MB cache
45W TDP |
| Socket |
BGA 1667 |
| Chipset |
- |
| Memory |
4 x DIMM slots
Supports 1.2V DDR4 memory
Single & dual rank modules supported
ECC & non-ECC modules supported
RDIMM supported up to 32GB per module
UDIMM supported up to 16GB per module
1600/1866/2133 MHz |
| LAN |
2 x GbE LAN ports (Intel® I210)
1 x 10/100/1000 management LAN |
| Video |
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Audio |
- |
| NVMe |
- |
| SAS |
- |
| SATA |
5 x SATA III 6Gb/s ports
1 x SATA III 6Gb/s port supporting SATA DOM |
| RAID |
- |
| Expansion Slots |
1 x PCIe x16 (Gen3 x16 bus) slot |
| Internal I/O |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x CPU fan header
2 x System fan headers
1 x USB 3.0 header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x JTAG BMC header
1 x Clear CMOS jumper
1 x IPMB connector
1 x PMBus connector |
| Rear I/O |
2 x USB 3.0
1 x VGA
3 x RJ45
1 x ID button with LED
1 x Power button with LED
1 x Status LED |
| TPM |
1 x TPM header |
| OS Supported |
Windows Server 2012 R2 (x64)
Red Hat Enterprise Linux 7.1 (x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 14.04.2 LTS
Fedora 22
CentOS 7.1 |
| Board Management |
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration) |
| PSU Connectors |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector |
| Operating Properties |
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Content |

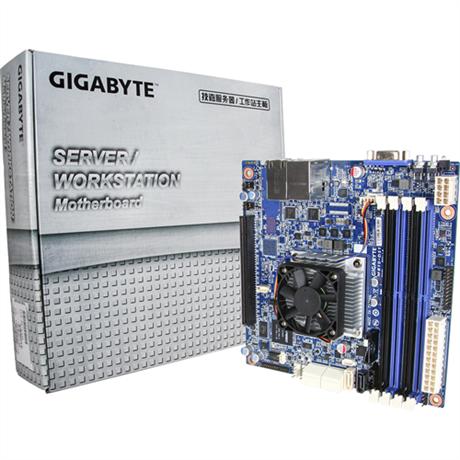

1 x MB10-DS1
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables (600mm)
Box dimensions: 233 x 214 x 62 mm |
| Bulk Packaging Content |
10 x MB10-DS1
10 x I/O shields
Carton dimensions: 421 x 292 x 268 mm |
| Reference Numbers |
Retail: 9MB10DS1MR-00
Bulk: 9MB10DS1NR-00 |
