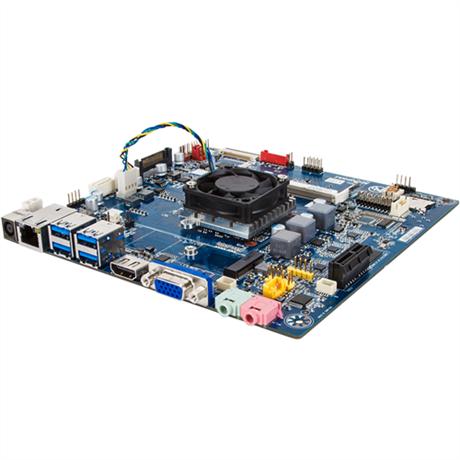

MZBSWAI (rev. 1.0)

製品種別 マザーボード
CPU
CPUソケット FCBGA1170
マザーボード規格 Mini-ITX
製品説明

製品仕様

Form Factor Thin Mini-ITX 170W x 170D (mm)
Operating Properties Operating temperature: -10°C to 50°C Operating humidity: 0-85% (non-condensing) ŠNon-operating temperature: -40°C to 70°C Non-operating humidity: 0%-85% (non-condensing)
CPU Intel Celeron N3150 processor 4 cores, 4 threads 1.6 - 2.08 GHz 2MB L2 cache 6W max. TDP
Socket 1 x BGA 1170
Memory 1 x SO-DIMM slot Supports 1.35V DDR3L memory Up to 8GB 1600MHz
LAN 1 x GbE LAN port (Realtek® RTL8111HS)
Video Intel HD graphics supports triple display - 1 x HDMI up to 3840 x 2160 @ 30Hz - 1 x VGA up to 2048 x 1536 @ 60Hz - 1 x LVDS up to 1920 x 1200 @ 60Hz
Audio Realtek ALC887
SATA 2 x SATA III 6Gb/s ports
RAID -
Expansion Slots 1 x PCIe x1 (2.0 x1 bus) slot 1 x M.2 slot: - E-key - PCIe 2.0 x1 signal - Supports NGFF-2230 cards
Internal I/O 1 x 2-pin ATX 12V power connector 2 x SATA III 6Gb/s ports 1 x SATA power connector 1 x LVDS 18/24bit connector 1 x CPU fan header 1 x System fan header 3 x USB 2.0 headers (for up to 4 x USB 2.0 ports) 1 x Front panel header 1 x Front audio header 1 x Serial header 1 x LPT header 1 x Digital microphone header 1 x Backlight switch header 1 x FPD power jumper 1 x LCD selection jumper 1 x Clear CMOS jumper 1 x MON jumper
Rear I/O 1 x DC-in 1 x RJ45 4 x USB 3.0 1 x HDMI v1.4 1 x VGA 1 x Line-out 1 x MIC-in
TPM -
OS Supported Windows 10 (x64) Windows 8.1 (x64) Windows 8 (x64) Windows 7 (x32/x64)
PSU Connectors 1 x 2-pin ATX 12V power connector
Power Supply 1 x DC-in 12-19V
Packaging Content 1 x MZBSWAI 1 x I/O shield (44.45mm) 1 x I/O shield (25.54mm) 1 x SATA power cable 1 x screw
Ordering Information 9MZBSWAINR‐SI
