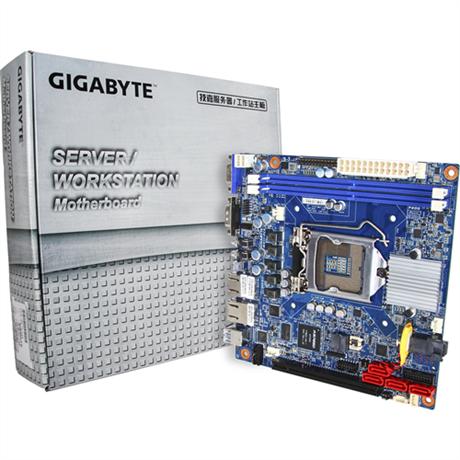

MX11-PC0 (rev. 1.0)
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA1151 (Socket H4) |
| マザーボードサイズ | Mini-ITX |
| 製品説明 |
製品仕様
| Form Factor | Mini-ITX 170W x 170D (mm) |
|---|---|
| CPU | Supports Intel® Xeon® processor E3-1200 V6/V5 product family Supports 7th/ 6th Gen Intel® Core™ i3 processors, Intel® Celeron® processors, Intel® Pentium® processors |
| Socket | 1 x LGA 1151 |
| Chipset | Intel® C232 |
| Memory | 2 x DIMM slots Dual channel memory architecture Supports 1.2V DDR4 memory ECC UDIMM modules supported Up to 32GB Supported speeds: 2400/2133 MHz |
| LAN | 2 x GbE LAN ports (Intel® I210) |
| Video | Integrated in Aspeed® AST2400 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Audio | - |
| NVMe | 1 x Mini-SAS HD connector (for 1 x NVMe device) PCIe Gen3 x4 bus |
| SAS | - |
| SATA | 4 x SATA III 6Gb/s ports |
| RAID | Intel® SATA RAID 0/1/10/5 |
| Expansion Slots | 1 x PCIe x16 (Gen3 x16 bus) connector 1 x Mini-SAS HD connector |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 4-pin power connector 4 x SATA III 6Gb/s ports 1 x Mini-SAS HD port 1 x CPU fan header 3 x System fan headers 1 x USB 3.0 header 1 x Front VGA header 1 x TPM header 1 x Front panel header 1 x JTAG PLD header 1 x Chassis intrusion header 1 x Power DET header 1 x IPMB connector |
| Rear I/O | 1 x Serial 1 x VGA 1 x ID button with LED 1 x Power button with LED 1 x Reset button 1 x NMI button 2 x RJ45 2 x USB 3.0 |
| TPM | 1 x TPM header |
| OS Compatibility | Windows Server 2012 R2 (x64) Windows Server 2016 RHEL 7.2 (x64) Ubuntu 12.04 LTS x64 Ubuntu 14.04 LTS x64 SUSE Linux Enterprise Server 11.4 x64 SUSE Linux Enterprise Server 12 x64 VMware 5.5 U3 (x64) VMware 6.0 U1 (x64) |
| Board Management | Aspeed® AST2400 management controller Avocent® MergePoint IPMI 2.0 web interface: - Network settings - Network security settings - Users control - Services settings - IPMI settings - Sessions control - LDAP settings - Power control -Voltages, fans and temperatures monitoring - System event log - Events management (platform events, trap settings, email settings) - Serial Over LAN - vKVM & vMedia (launch, configuration) |
| PSU Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin power connector |
| Operating Properties | Operating temperature: 0°C to 40°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Content | 1 x MX11-PC0 1 x I/O shield 1 x Quick start guide 2 x SATA III 6Gb/s cables Box dimensions: 233 x 214 x 62 mm |
| Bulk Packaging Content | 10 x MX11-PC0 10 x I/O shields |
| Reference Numbers | Retail: 9MX11PC0MR-00 Bulk: 9MX11PC0NR-00 |
