![](/admin/imgs/gigabyte/MW21-SE0.jpg?2.73783761383132")

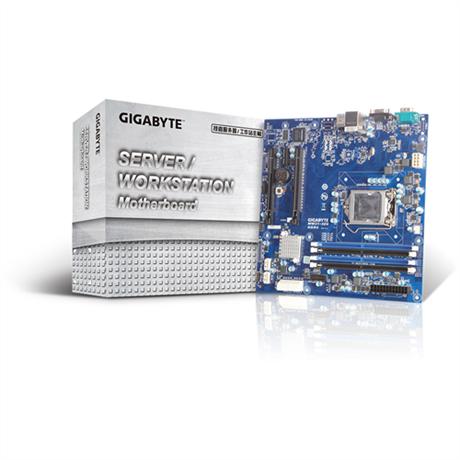

MW21-SE0 (rev. 1.0)
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA1151 (Socket H4) |
| マザーボードサイズ | Micro-ATX |
| 製品説明 |
製品仕様
| Form Factor | microATX 244W x 244D (mm) |
|---|---|
| CPU | Supports Intel® Xeon® processor E3-1200 V6/V5 product family Supports 7th/ 6th Gen Intel® Core™ i3 processors, Intel® Celeron® processors, Intel® Pentium® processors |
| Socket | LGA 1151 |
| Chipset | Intel® C232 |
| Memory | 4 x DIMM slots Dual channel memory architecture Supports 1.2V DDR4 memory ECC UDIMM modules supported Up to 64GB Supported speeds: 2400/2133 MHz |
| LAN | 1 x GbE LAN port (Intel® I219LM) |
| Video | Integrated in Aspeed® AST1400 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Audio | - |
| SAS | - |
| SATA | 6 x SATA III 6Gb/s ports |
| RAID | Intel® SATA RAID 0/1/10/5 |
| Expansion Slots | 1 x PCIe x16 (Gen 3 x16 bus) connector 1 x PCIe x16 (Gen 3 x4 bus) connector 1 x PCIe x1 (Gen 3 x1 bus) connector |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA III 6Gb/s ports 1 x CPU fan header 1 x System fan header 1 x USB 3.0 header 1 x USB 2.0 header 1 x Front panel header 1 x TPM header 1 x Chassis intrusion header 1 x Clear CMOS jumper 1 x BIOS password recovery jumper 1 x ME recovery jumper |
| Rear I/O | 4 x USB 3.0 1 x VGA 1 x Serial 1 x RJ45 |
| TPM | 1 x TPM header |
| OS Compatibility | Windows Server 2012 R2 (x64) Windows Server 2016 RHEL 7.2 (x64) Ubuntu 12.04 LTS x64 Ubuntu 14.04 LTS x64 SUSE Linux Enterprise Server 11.4 x64 SUSE Linux Enterprise Server 12 x64 VMware 5.5 U3 (x64) VMware 6.0 U1 (x64) |
| Board Management | - |
| PSU Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Operating Properties | Operating temperature: 0°C to 40°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Content | 1 x MW21-SE0 1 x I/O shield 1 x Quick start guide 4 x SATA III 6Gb/s cables Box dimensions: 321 x 308.5 x 78.5 mm |
| Bulk Packaging Content | 10 x MW21-SE0 10 x I/O shields Carton dimensions: 609 x 581 x 362 mm |
| Reference Numbers | Retail: 9MW21SE0MR-00 Bulk: 9MW21SE0NR-00 |
