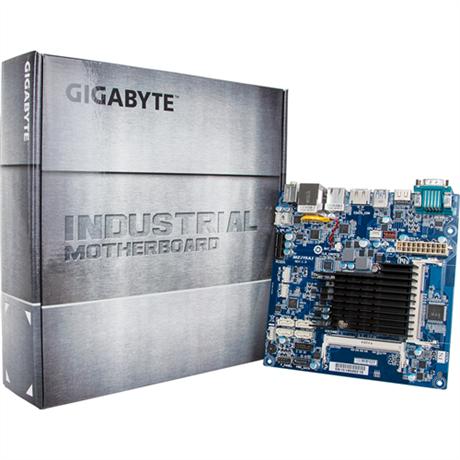

MZJ19AI (rev. 1.0)

製品種別 マザーボード
CPUソケット数
CPU 　
CPUソケット FCBGA1170
マザーボードサイズ Mini-ITX
製品説明

製品仕様

Form Factor Mini-ITX
170W x 170D (mm)
Operating Properties Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
ŠNon-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU Intel® Celeron® J1900
4 cores / 4 threads
2.0 - 2.42 GHz
10W max. TDP
Socket 1 x BGA 1170
Chipset -
Memory 2 x SO-DIMM DDR3L slots
Dual channel memory architecture
Up to 8GB
1.35V modules: 1333 MHz
Flash Memory -
LAN 2 x GbE LAN ports (Intel® I210)
Video Intel® HD Graphics, supporting:
  • 1 x HDMI port: max. resolution 1920x1080 at 60hz (HDMI 14.a)
  • 1 x D-SUB port: max. resolution 2560x1600 at 60hz (with compatible displays)
Audio Realtek® ALC269 controller
Supports 2/4 channel configurations
SAS -
SATA 4 x SATA III 6Gb/s ports
1 x SATA II 3Gb/s port
1 x eSATA 3Gb/s port
RAID Marvell® SATA RAID 0/1/10
Expansion Slots 1 x PCIe x1 (Gen2 x1 bus) slot
Internal I/O 1 x 20-pin ATX main power connector
1 x Front USB 2.0 header
1 x SATA GPIO header
1 x GPIO header
1 x TPM header
1 x Front audio header
1 x Speaker out header
4 x SATA III 6Gb/s ports
1 x SATA II 3Gb/s port
1 x Front panel header
1 x CPU fan header
1 x System fan header
Rear I/O 1 x USB 3.0
2 x USB 2.0
1 x eSATA
1 x VGA
1 x HDMI
1 x Serial
2 x RJ45
2 x Audio jacks
TPM 1 x TPM header
Infineon® SLB9635TT1.2 module in option
OS Compatibility Windows 7 (x64)
Windows 8 (x64)
Windows 8.1 (x64)
Windows Server IoT 2019
PSU Connectors 1 x 20-pin ATX main power connector
Power Supply -
Packaging Content 1 x I/O shield
Ordering Information 9MZJ19AINR-SI
