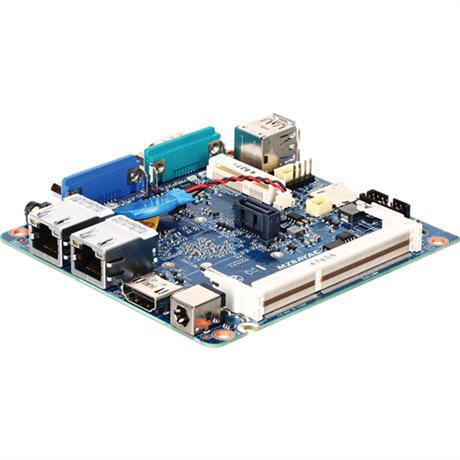

| Form Factor |
Proprietary
100(W) x 108.5(D) mm |
| Operating Properties |
Operating temperature: -10°C to 50°C
Operating humidity: 0%-85% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-85% (non-condensing) |
| CPU |
Intel Atom processor E3825
Dual core, 22nm
1.33GHz
1MB cache
6W TDP |
| Socket |
1 x BGA 1170 |
| Memory |
1 x SO-DIMM slot
DDR3L memory supported
Up to 8GB
1066Mhz |
| Flash Memory |
32GB of eMMC memory |
| LAN |
2 x GbE LAN ports (Realtek RTL8111G) |
| Video |
Intel HD Graphics |
| Audio |
Realtek ALC283 controller |
| SATA |
1 x SATA II 3Gb/s port |
| Expansion Slots |
1 x Half-size Mini-PCIe slot |
| Internal I/O |
1 x LPC (80h) header
1 x USB 2.0 header
1 x SATA II 3Gb/s port
1 x SATA power connector
1 x Battery connector
1 x TPM header |
| Rear I/O |
2 x RJ45
1 x HDMI-Out
1 x USB 3.0
1 x USB 2.0
1 x DC-in
1 x MicroSD card slot
1 x Serial
1 x VGA
1 x Line-out / MIC-in |
| TPM |
1 x TPM header |
| OS Supported |
Windows 7 (x32/x64)
Windows 8.1 (x32/x64) |
| PSU Connectors |
- |
| Power Supply |
AC 100~240V
12V DC-in |
| Packaging Content |
- |
| Ordering Information |
Bilk: 9MZBAYACNR-00
MoQ: 10 units
Box size: 311x258x199mm
Optional 30W adapter: 25EP2-500303-A3S
Optional TPM module: 5CMHWT1NR-HT
Optional 4 x Serial headers expansion board: 9CIOPANR-SI |
