製品情報

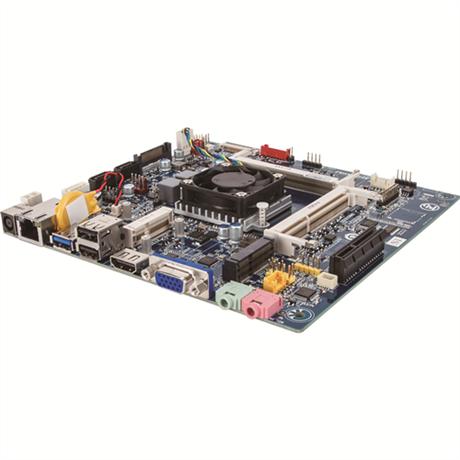

MZBAYAI (rev. 1.0)

製品種別 マザーボード
CPUソケット数
CPU
CPUソケット FCBGA1170
マザーボードサイズ Mini-ITX
製品説明

製品仕様

Form Factor Thin Mini-ITX 170W x 170D (mm)
Operating Properties Operating temperature: -10°C to 50°C Operating humidity: 0-85% (non-condensing) ŠNon-operating temperature: -40°C to 70°C Non-operating humidity: 0%-85% (non-condensing)
CPU Intel Celeron J1900 4 cores / 4 threads 2.0 - 2.42 GHz 10W max. TDP
Socket 1 x BGA 1170
Memory 2 x SO-DIMM DDR3L slots Dual channel memory architecture Up to 8GB 1.35V modules: 1333 MHz
LAN 1 x GbE LAN port (Realtek RTL8111G)
Video Intel HD graphics, supporting: 1 x HDMI port: max. resolution 1920 x 1080 at 60Hz 1 x D-SUB port: max. resolution 2560 x 1600 at 60Hz (with compatible displays) 1 x Onboard LVDS: max. resolution 1920 x 1080 (in 8-bit input with 60Hz refresh)
Audio Realtek ALC887 controller Supports 2/4/5.1/7.1 channel configurations
SATA 1 x SATA III 6Gb/s port (ASMedia ASM1061 controller) 1 x mSATA 6Gb/s slot (ASMedia ASM1061 controller) 2 x SATA II 3Gb/s ports
RAID -
Expansion Slots 1 x PCIe x4 (2.0 x4 bus) 1 x Half-size mini-PCIe slot
Internal I/O 1 x 2-pin power connector 1 x CPU fan header 1 x System fan header 1 x SATA III 6Gb/s port (white) 2 x SATA II 3Gb/s ports (black) 1 x mSATA slot 1 x SATA power connector 3 x USB 2.0 headers 1 x Front panel header 1 x Front audio header 1 x Digital microphone header 1 x LVDS 18/24bit connector 1 x Backlight jumper 1 x COM header 1 x LPT header
Rear I/O 1 x DC-in 1 x RJ45 1 x USB 3.0 2 x USB 2.0 1 x HDMI v1.4 1 x VGA 1 x Line-out 1 x MIC-in
TPM -
OS Supported Windows 7 (x64) Windows 8 (x64) Windows 8.1 (x64)
PSU Connectors 1 x 2-pin power connector
Power Supply DC-in 12-19V
Packaging Content 3 x screws 1 x SATA power cable 1 x I/O shield (25.54 mm) 1 x I/O shield (44.45 mm) 1 x Driver DVD
Ordering Information 9MZBAYAINR-SI 20 units per carton Packaging dimensions: 550 x 451 x 251 mm
