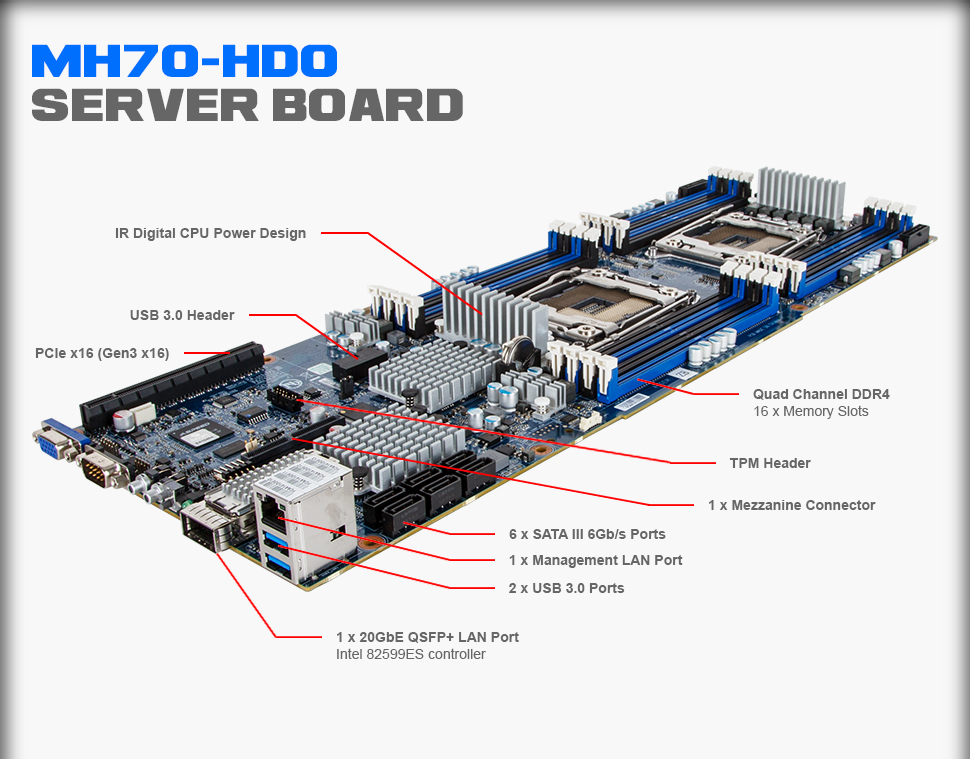

MH70-HD0 (rev. 1.0)

製品種別 マザーボード
CPUソケット数
CPU 　
　
　
CPUソケット LGA2011
マザーボードサイズ Proprietary（独自規格）
製品説明

製品仕様

Form Factor Proprietary half-width form factor
165W x 490D (mm)
CPU Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Socket 2 x LGA 2011-3
Mounting pitch: narrow ILM (56x94mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset Intel® C612
Memory 16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN 1 x 20GbE QSFP+ LAN port (Intel® 82599ES) supporting dual 10GbE SFP+ output via splitter cable
1 x 40GbE QSFP+ LAN port (Intel® XL710-AM1) in option
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio -
SAS -
SATA 6 x SATA III 6Gb/s ports
RAID Intel® SATA RAID 0/1/10/5
Expansion Slots 1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x8 mezzanine (Gen3 x8 bus) slot
Internal I/O 2 x 18-pin ATX 12V power connectors
6 x SATA III 6Gb/s ports
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x Serial header
1 x Front VGA header
1 x Front panel header
1 x SATA SGPIO header
1 x BMC SGPIO header
1 x Software RAID header
1 x JTAG BMC header
1 x PMBus header
1 x PLD header
1 x SMB selection jumper
1 x Clear CMOS jumper
1 x ACK selection jumper
1 x S3 mask jumper
1 x ME recovery jumper
1 x LT debug jumper
1 x BIOS WP jumper
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x ME update jumper
1 x IPMB connector
Rear I/O 2 x USB 3.0
1 x VGA
1 x Serial
1 x QSFP+
1 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x BMC reset button
1 x System status LED
2 x LAN activity LEDs
TPM 1 x TPM header
OS Compatibility Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016

Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)

SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)

Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)

VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Board Management Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
PSU Connectors 2 x 18-pin ATX 12V power connectors
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
ŠNon-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
