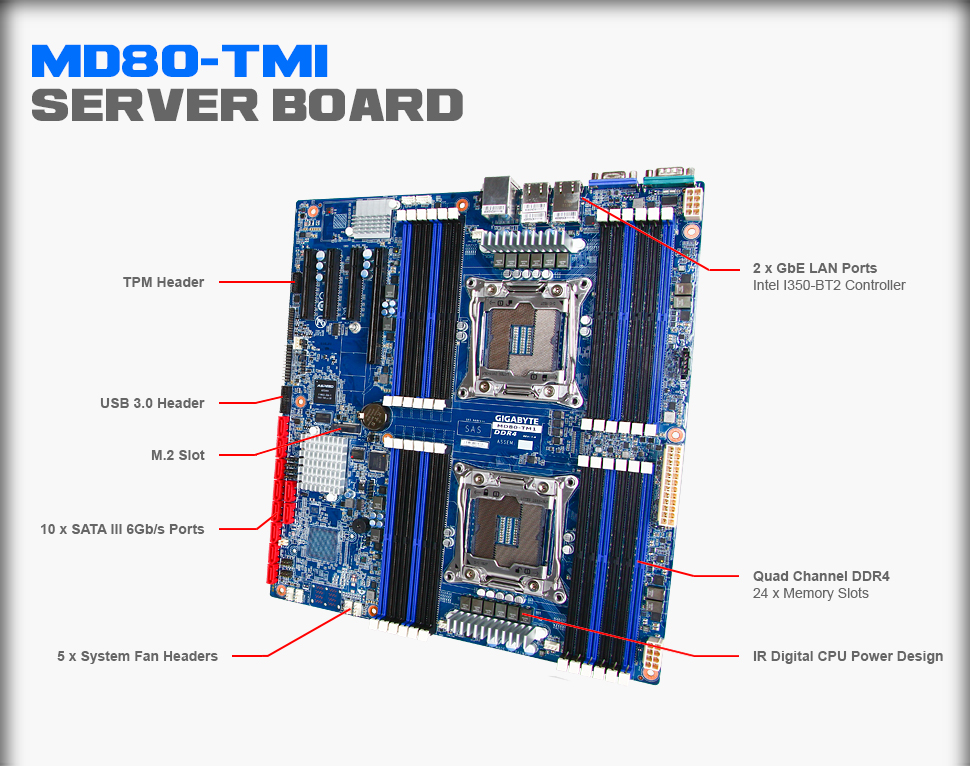

MD80-TM1 (rev. 1.0)

製品種別 マザーボード
CPUソケット数
CPU 　
　
　
CPUソケット LGA2011
マザーボードサイズ Extended ATX (SSI EEB)
製品説明

製品仕様

Form Factor E-ATX / SSI EEB
305W x 330D (mm)
CPU Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.
Socket 2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset Intel® C612
Memory 24 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN 2 x GbE LAN ports (Intel® I350-BT2)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio -
SAS -
SATA 10 x SATA III 6Gb/s ports
RAID Intel® SATA RAID 0/1/10/5
Expansion Slots 1 x PCIe x16 (Gen3 x16 bus) slot
3 x PCIe x8 (Gen3 x8 bus) slots
1 x M.2 (Gen2 x4 bus) slot:
- Socket 3
- M key
- Max. width: 22mm
- Max. length: 80mm
Internal I/O 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
5 x System fan headers
10 x SATA III 6Gb/s ports
1 x USB 3.0 header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x IMR key header
2 x SGPIO headers
1 x Software RAID header
1 x Chassis intrusion header
1 x LSI UART header
1 x JTAG PLD header
1 x BMC JTAG header
1 x Clear CMOS jumper
1 x ME update jumper
1 x ME recovery jumper
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x S3 mask jumper
1 x BMC FRB jumper
1 x PMBus connector
1 x IPMB connector
Rear I/O 2 x USB 3.0
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED
TPM 1 x TPM header
OS Compatibility Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016

Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)

SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)

Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)

VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Board Management Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
PSU Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content 1 x MD80-TM1
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA III 6Gb/s cables
Box dimensions: 409 x 355 x 78 mm
Bulk Packaging Content 10 x MD80-TM1
10 x I/O shields
Carton dimensions: 473 x 600 x 495 mm
Reference Numbers Retail: 9MD80TM1MR-00
Bulk: 9MD80TM1NR-00
