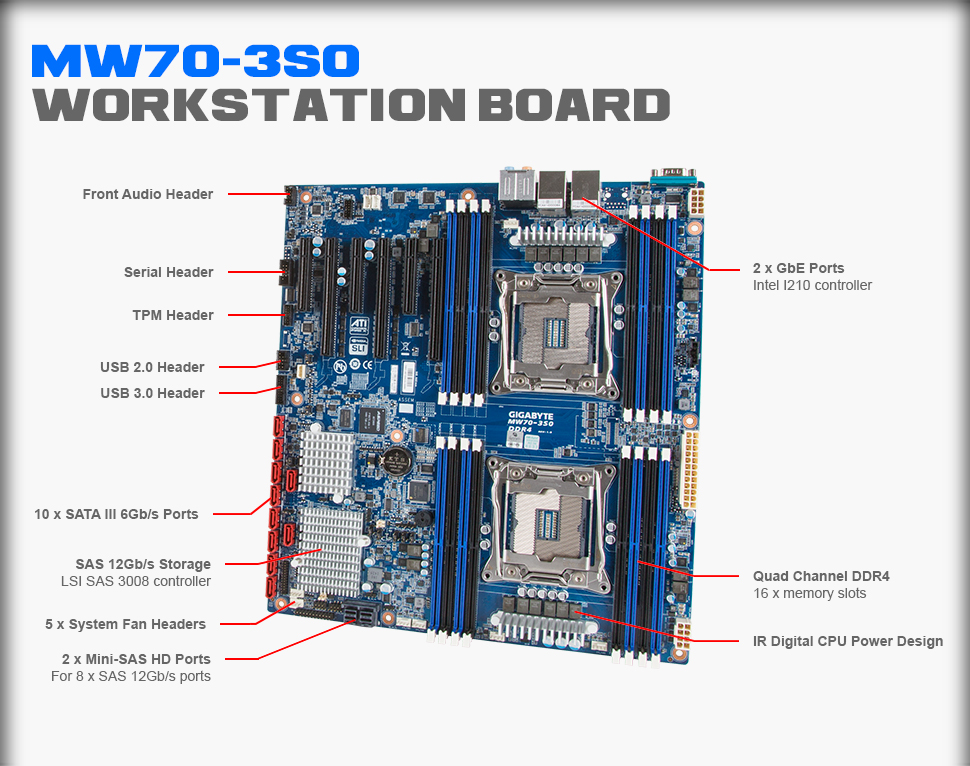

MW70-3S0 (rev. 1.0)
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA2011 |
| マザーボードサイズ | Extended ATX (SSI EEB) |
| 製品説明 |
製品仕様
| Form Factor | E-ATX / SSI EEB 305W x 330D (mm) |
|---|---|
| CPU | Intel® Xeon® E5-2600 V3 processors Intel® Xeon® E5-2600 V4 processors NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable. |
| Socket | 2 x LGA 2011-3 Mounting pitch: square ILM (80x80mm) Max. length of M4 screw threads: 3.7mm Screws longer than 3.7mm might damage the motherboard |
| Chipset | Intel® C612 |
| Memory | 16 x DIMM slots DDR4 memory supported only Quad channel memory architecture RDIMM modules up to 32GB supported LRDIMM modules up to 64GB supported 3DS LRDIMM modules up to 128GB supported 1.2V modules: 1600/1866/2133/2400 MHz |
| LAN | 2 x GbE LAN ports (Intel® I210) |
| Video | - |
| Audio | Realtek® ALC887 controller Supports 2/4/5.1/7.1 channel configurations |
| SAS | 2 x Mini-SAS (for 8 x SAS 12Gb/s) LSI SAS 3008 controller |
| SATA | 8 x SATA III 6Gb/s ports 2 x SATA III 6Gb/s port supporting SATA DOM |
| RAID | Intel® SATA RAID 0/1/10/5 LSI® SAS RAID 0/1/1E/10 |
| Expansion Slots | 1 x PCIe x16 (Gen3 x16 bus) slot 2 x PCIe x16 (Gen3 x8 bus) slots 2 x PCIe x8 (Gen3 x8 bus) slots 1 x PCIe x8 (Gen3 x4 bus) slot or (via PCIe switch): 3 x PCIe x16 (Gen3 x16 bus) slots 1 x PCIe x8 (Gen3 x4 bus) slot Support NVIDIA® SLI™ & AMD® CrossFireX™ technologies (2-way, 3-way) |
| Internal I/O | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 2 x Mini-SAS ports 10 x SATA III 6Gb/s ports 2 x CPU fan headers 5 x System fan headers 1 x USB 3.0 header 1 x USB 2.0 header 1 x Front audio header 1 x Serial header 1 x TPM header 2 x SATA SGPIO headers 1 x Front panel header 1 x HDD back plane board header 1 x JTAG PLD header 1 x LSI UART header 1 x Chassis intrusion header 1 x JTAG BMC header 2 x LAN LED headers 1 x S/PDIF-Out header 1 x S/PDIF-In header 2 x SATA DOM jumpers 1 x BIOS recovery jumper 1 x BIOS password recovery jumper 1 x ME recovery jumper 1 x ME update jumper 1 x Clear CMOS jumper 1 x BMC FRB jumper 1 x S3 mask jumper 1 x PMBus connector 1 x IPMB connector |
| Rear I/O | 2 x USB 3.0 2 x USB 2.0 1 x Serial 2 x RJ45 5 x Audio jacks 1 x Optical S/PDIF-Out |
| TPM | 1 x TPM header |
| OS Compatibility | Windows Server 2008 R2 (x64) Windows Server 2012 (x64) Windows Server 2012 R2 (x64) Windows Server 2016 Windows 7 Ultimate SP1 (x86/x64) Windows 8 Enterprise (x86/x64) Windows 8.1 Enterprise (x86/x64) Windows 10 (x64) Red Hat Enterprise Linux 6.7 (x86/x64) Red Hat Enterprise Linux 7.2 (x64) SUSE Linux Enterprise Server 11.4 (x86/x64) SUSE Linux Enterprise Server 12 (x64) Ubuntu 12.04 LTS (x86/x64) Ubuntu 14.04 LTS (x86/x64) VMware ESXi 5.1 U2 VMware ESXi 5.5 U2 VMware ESXi 6.0 U1 |
| Board Management | - |
| PSU Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Content | 1 x MW70-3S0 1 x User manual 1 x I/O shield 2 x SATA III 6Gb/s cables (500mm) 1 x CrossFire™ bridges 1 x 2-SLI™ bridge 1 x 3-SLI™ bridge Box dimensions: 409 x 355 x 78 mm |
| Bulk Packaging Content | 10 x MW70-3S0 10 x I/O shields Carton dimensions: 473 x 600 x 495 mm |
| Reference Numbers | Retail: 9AW703S0MR-00 Bulk: 9MW703S0NR-00 |
