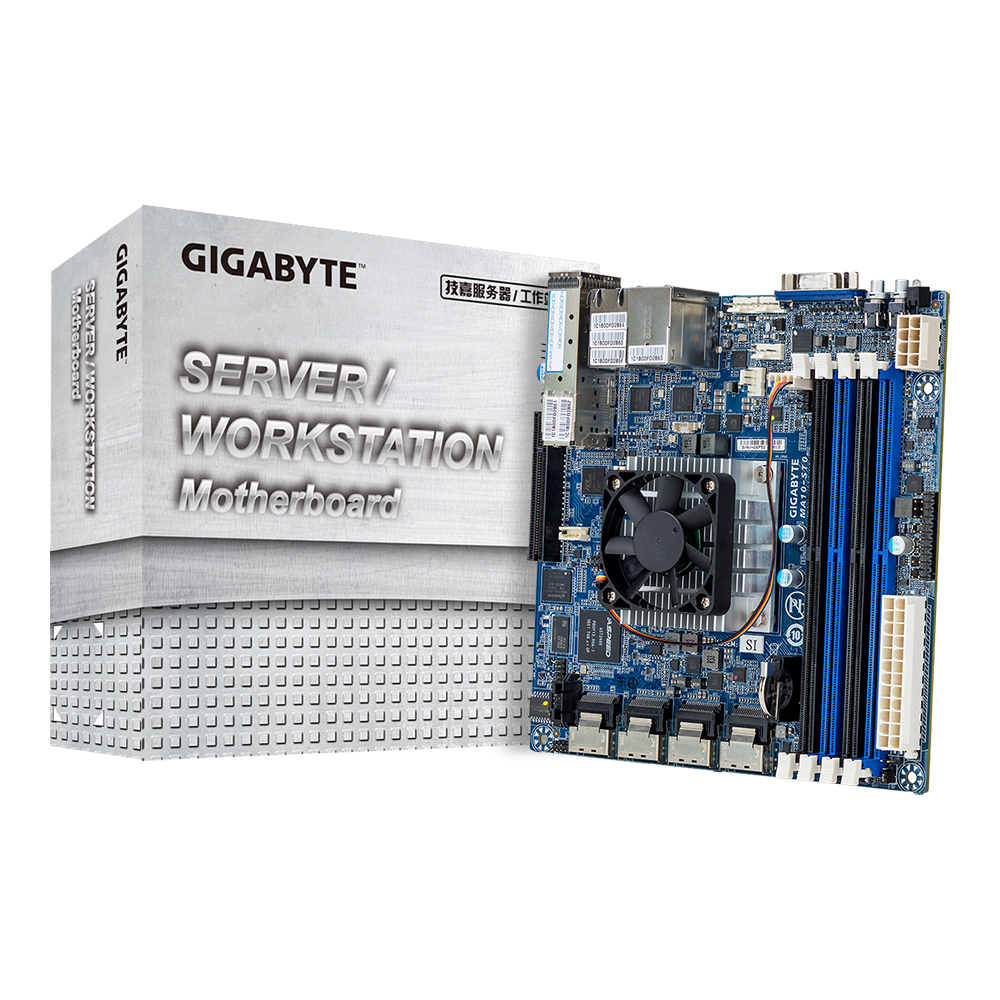

MA10-ST0 (rev. 1.1)

製品種別 マザーボード
CPUソケット数
CPU 　
CPUソケット FCBGA1310
マザーボードサイズ Mini-ITX
製品説明

製品仕様

Form Factor Mini-ITX
170W x 170D (mm)
CPU Intel® Atom™ C3958 SoC, 2.0Ghz, 16 cores
16MB L2 cache
31W TDP
DDR4 Frequency 2400Mhz
Socket 1 x BGA 1310
Chipset -
Memory 4 x DDR4 slots
Dual channels, 2DPC, 1.2V
2400/2133/1866 MHz
up to 64GB for ECC R-DIMM
up to 64GB for ECC/non-ECC UDIMM
Flash Memory 32GB eMMC
LAN 2 x 10Gb/s SFP+ LAN ports
2 x 1Gb/s LAN ports (Intel® I210-AT)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio -
SAS -
SATA 4 x Mini-SAS up to 16 x SATA 6Gb/s ports
- 2 x Mini-SAS ports are shared with PCIe x8 slot
RAID -
Expansion Slots 1 x PCIe x8 (Gen3 x8 bus) slot
- Shared with Mini-SAS ports, Mini_CN2, Mini_CM3
Internal I/O 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x Mini-SAS SFF8087 ports
1 x CPU fan header
4 x System fan headers
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x JTAG BMC header
1 x Clear CMOS jumper
1 x IPMB connector
1 x PMBus connector
1 x COM (RS-232)
Rear I/O 1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x VGA port
2 x USB 2.0 ports
2 x SFP+ LAN ports
2 x RJ45 LAN ports
1 x MLAN RJ45 port
TPM 1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
OS Compatibility Windows Server 2012 R2 with Update
Windows Server 2016
Red Hat Enterprise Linux Server 7.1
SuSE Linux Enterprise Server 12
Ubuntu 14.04.2 LTS
Fedora 22
CentOS 7.1
Board Management Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
PSU Connectors 1 x 24-pin ATX main power connector
1 x 8-pin 12V auxiliary power connector
Operating Properties Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content 1 x MA10-ST0
1 x I/O shield
1 x Quick start guide
Reference Numbers Retail: 9MA10ST0MR-SI
I/O shield: 12AIO-MB10D0-00R
