製品情報

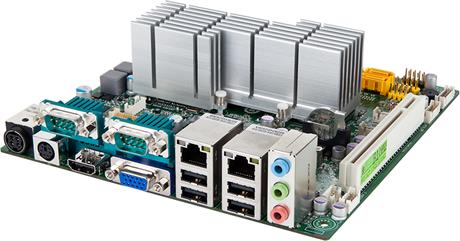

M10RDI (rev. 1.0)

製品種別 マザーボード
CPUソケット数
CPU
CPUソケット FCBGA559
マザーボードサイズ Mini-ITX
製品説明

製品仕様

Form Factor Mini-ITX 170W x 170D (mm)
Operating Properties Operating temperature: -10°C to 60°C Operating humidity: 0-85% (non-condensing) ŠNon-operating temperature: -40°C to 70°C Non-operating humidity: 0%-85% (non-condensing)
CPU Intel® Atom™ D2550 2 cores / 4 threads 1.86 GHz 10W max. TDP
Socket 1 x BGA 559
Chipset Intel® ICH10R
Memory 2 x SO-DIMM DDR3 slots Single channel memory architecture Up to 4GB 1.5V modules: 1066 MHz
LAN 2 x GbE LAN ports (Realtek® RTL8111E)
Video Intel® GMA3650
Audio Realtek® ALC269 controller Supports 2/4 channel configurations
SATA 4 x SATA II 3Gb/s ports
RAID Intel® SATA RAID 0/1/10/5
Expansion Slots 1 x Full-size Mini-PCIe slot 1 x Half-size Mini-PCIe slot 1 x PCI
Internal I/O 2 x USB 2.0 headers 4 x Serial headers 1 x Front audio header 1 x Speaker header 1 x System fan header 1 x Front panel header 1 x 4-pin 12V ATX power connector 1 x LPC 1 x GPIO 4 x SATA II 3Gb/s ports
Rear I/O 4 x USB 2.0 1 x PS/2 1 x HDMI 2 x Serial 1 x VGA 1 x MIC-In 1 x Line-Out 1 x Line-In 2 x RJ45 1 x DC-In
TPM -
OS Supported Windows 7 (32/64bit)
PSU Connectors 1 x 4-pin 12V ATX power connector
Power Supply 1 x DC-In 12V/19V
Ordering Information 9M10RDIMS-SI
Packaging Content 1 x I/O shield 1 x Serial cable (260mm) 1 x SATA II 3Gb/s cable (500mm) 1 x SATA power cable (100mm)
