| Form Factor |
Thin Mini-ITX
170W x 170D (mm)
2.5cm thick I/O shield |
| Operating Properties |
Operating temperature: -10°C to 60°C
Operating humidity: 0-85% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-85% (non-condensing) |
| CPU |
Supports Intel® 2nd & 3rd Gen processors
Up to 95W TDP |
| Socket |
1 x LGA 1155 |
| Chipset |
Intel® Q77 |
| Memory |
2 x SO-DIMM DDR3 slots
Dual channel memory architecture
Up to 16GB
1.5V modules: 1333/1600 MHz |
| LAN |
1 x GbE LAN port (Intel® 82579LM) |
| Video |
Integrated graphics processor |
| Audio |
Realtek® ALC887 controller
Supports 2/4/5.1/7.1 channel configurations |
| SATA |
2 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s |
| RAID |
Intel® SATA RAID 0/1/10/5 |
| Expansion Slots |
1 x PCIe x4 (Gen3 x4 bus) slot (25W only)
1 x mSATA slot
1 x Half-size Mini-PCIe slot |
| Internal I/O |
1 x 2-pin ATX 19V power connector
1 x CPU fan header
1 x System fan header
2 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports
1 x mSATA connector
1 x SATA power connector
3 x USB 2.0 headers
1 x Front panel header
1 x Front audio header
1 x Digital microphone header
1 x AIO speaker header
1 x LVDS connector
1 x LVDS drive voltage header
1 x Flat panel display power header (both panel and backlight inverter)
1 x Flat panel display power connector
1 x Backlight switch header
1 x Flat panel display switch header
1 x WiFi activity indicator LED header
1 x Clear CMOS jumper |
| Rear I/O |
4 x USB 3.0
1 x HDMI
1 x DisplayPort
1 x RJ45
1 x Line-Out
1 x Mic-In
1 x DC-In |
| TPM |
TPM module onboard
Infineon® SLB9635TT1.2 controller |
| OS Supported |
Windows 7 (32/64bit)
Windows 8 (32/64bit) |
| PSU Connectors |
1 x DC-In 12V/19V
1 x 2-pin ATX 19V power connector |
| Power Supply |
GIGABYTE recommends 180W power adapters for processors above 84W TDP. Processors with a TDP lower than 84W, may use 150W power adapters.
Adapters available in option:
120W, 19V, 6.3A, DC plug (74x51mm)
150W, 19V, 7.89A, DC plug (74x51mm)
180W, 19V, 9.47A, DC plug (74x51mm)
|
| Ordering Information |
9MQ77TNNR-SI |
| Packaging Content |
- |

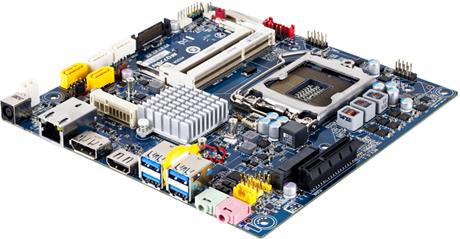

![](/admin/imgs/gigabyte/MQ77TN.jpg?3.22902813394652")
