| Form Factor |
Mini-ITX
170W x 170D (mm) |
| Operating Properties |
Operating temperature: -10°C to 60°C
Operating humidity: 0-85% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-85% (non-condensing) |
| CPU |
Intel Celeron J1900
4 cores / 4 threads
2.0 - 2.42 GHz
10W max. TDP |
| Socket |
1 x BGA 1170 |
| Chipset |
- |
| Memory |
2 x SO-DIMM DDR3L slots
Dual channel memory architecture
Up to 8GB
1.35V modules: 1333 MHz |
| LAN |
2 x GbE LAN ports (Realtek RTL8111G) |
| Video |
Intel HD Graphics, supporting:
1 x HDMI port: max. resolution 1920 x 1080 at 60Hz
1 x D-SUB port: max. resolution 2560 x 1600 at 60Hz (with compatible displays)
1 x Onboard LVDS: max. resolution 1920 x 1200 (in 8-bit input with 60Hz refresh)
|
| Audio |
Realtek ALC269 controller
Supports 2/4 channel configurations |
| SATA |
1 x SATA II 3Gb/s port |
| Expansion Slots |
1 x Full-size mSATA slot
1 x Full-size Mini-PCIe slot
1 x PCI slot |
| Internal I/O |
1 x 4-pin 12V ATX power connector
5 x COM headers
(COM1 supports RS232/422/485,
COM3 supports 5V/12V selectable)
1 x Keyboard + mouse header
1 x LVDS 18/24bit header
1 x Backlight control header
1 x UART header
1 x SATA power header
1 x SATA II 3Gb/s port
1 x mSATA slot
1 x USB 2.0 header
1 x LPC header
1 x GPIO header
1 x Full-size Mini-PCIe slot
1 x Front audio header
1 x 2W speaker header
1 x Front panel header
1 x CPU fan header
1 x System fan header
1 x CMOS battery
1 x Buzzer speaker |
| Rear I/O |
1 x USB 3.0
4 x USB 2.0
1 x HDMI v1.4
1 x Serial
1 x VGA
1 x MIC-in
1 x Line-out
1 x Line-in
2 x RJ45
1 x DC-in |
| TPM |
- |
| OS Supported |
Windows 8 32/64bit
Windows 8.1 32/64bit |
| PSU Connectors |
1 x DC-in 12V
1 x 4-pin 12V ATX power connector |
| Power Supply |
DC-In 12V |
| Ordering Information |
Fan version: 9MVBAYAINS-SI
Fanless version: 9MVBAYAINS-00 |

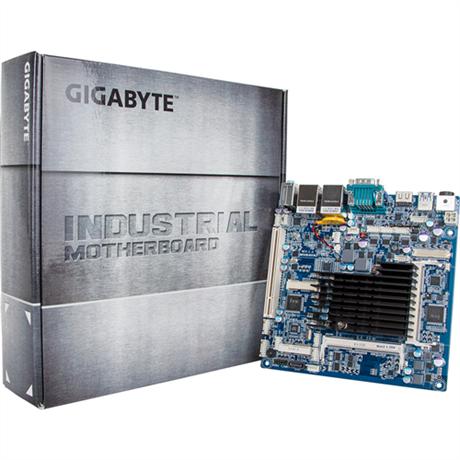

| Packaging Content |
- |
![](/admin/imgs/gigabyte/MVBAYAI.jpg?0.785224855217201")
