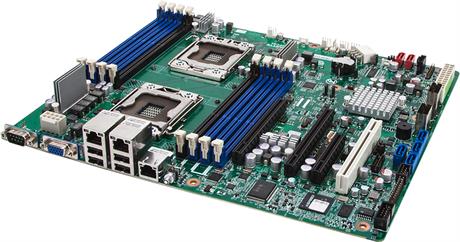

| Form Factor |
CEB
305W x 267D (mm) |
| CPU |
Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families |
| Socket |
2 x LGA 1356 |
| Chipset |
Intel® C602 |
| Memory |
8 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only |
| LAN |
2 x GbE LAN ports (Intel® 82574L)
1 x 10/100 management LAN |
| Video |
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x120060Hz 32bpp |
| Audio |
- |
| SAS |
1 x Mini-SAS connector (for 4 x SATA 3Gb/s ports)
1 x Mini-SAS connector (disabled, can be enabled via Intel® upgrade key) |
| SATA |
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports |
| RAID |
Intel® SATA RAID 0/1/10/5 |
| Expansion Slots |
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x8 (Gen3 x4 bus) slot
1 x PCI slot |
| Internal I/O |
1 x 24-pin main power connector
2 x 8 pin 12V power connectors
1 x CMOS battery socket
1 x Patsburg-A SKU select connector
2 x CPU fan headers
4 x System fan headers
2 x SATA III 6Gb/s ports
1 x PMBus connector
1 x HDD backplane connector
1 x Mini-SAS connector (SATA II 3Gb/s signal)
1 x Mini-SAS connector
2 x ME enable/disable jumpers
1 x USB 2.0 header
1 x Front panel header
1 x Serial header
1 x TPM header
1 x Chassis intrusion jumper
1 x SCU SGPIO connector
1 x IPMB connector
1 x BMC firmware readiness LED
1 x Clear password jumper
1 x BIOS recovery jumper
1 x Clear CMOS jumper
1 x BIOS write protect jumper
1 x SATA0/1 port DOM support jumper |
| Rear I/O |
4 x USB 2.0
1 x VGA
1 x Serial
3 x RJ45
1 x ID button with LED |
| TPM |
1 x TPM header |
| OS Supported |
Windows Server 2003 R2 SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
| Board Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| PSU Connectors |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors |
| Retail Packaging Content |
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA II 3Gb/s cables (500mm) |
| Reference Numbers |
Retail: 9M7PCSLMS-00
Bulk: 9M7PCSLNS-00 |
