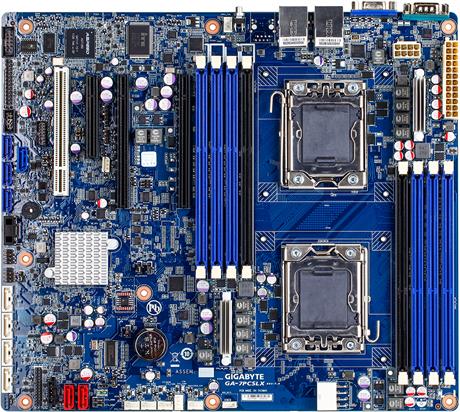

| Form Factor |
CEB
305W x 267D (mm) |
| CPU |
Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families |
| Socket |
2 x LGA 1356 |
| Chipset |
Intel® C602 |
| Memory |
8 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only |
| LAN |
2 x GbE LAN ports (Intel® 82574L) |
| Video |
Integrated in Aspeed® AST1300
2D Video Graphic Adapter with PCIe bus interface
1920x120060Hz 32bpp |
| Audio |
- |
| SAS |
1 x Mini-SAS connector (disabled, can be enabled for 4 x SAS/SATA 3Gb/s ports via upgrade ROM) |
| SATA |
AHCI SATA:
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
SCU SATA:
4 x SATA II 3Gb/s ports |
| RAID |
Intel® SATA RAID 0/1/10/5 |
| Expansion Slots |
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x8 (Gen3 x4 bus) slot
1 x PCI slot |
| Internal I/O |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CMOS battery
1 x Patsburg-A SKU select connector
2 x CPU fan header
4 x System fan headers
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x PMBus connector
1 x HDD back plane connector
2 x ME enable/disable jumpers
1 x SATA SGPIO coneector
1 x SCU SGPIO connector
2 x Mini-SAS connectors
1 x USB 2.0 header
1 x Front panel header
1 x Serial cable header
1 x TPM header
1 x Force to Stop FRB3 Timer jumper
1 x IPMB connector
1 x BMC firmware readiness LED
1 x Clear password jumper
1 x BIOS recovery jumper
1 x Chassis intrusion jumper
1 x Clear CMOS jumper
1 x BIOS write protect jumper
1 x SATA0/1 port DOM support jumper |
| Rear I/O |
4 x USB 2.0
1 x VGA
1 x Serial
2 x RJ45
1 x ID button with LED |
| TPM |
1 x TPM header |
| OS Supported |
Windows Server 2003 R2 SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
| Board Management |
- |
| PSU Connectors |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors |
| Retail Packaging Content |
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA II 3Gb/s cables (500mm) |
| Reference Numbers |
Retail: 9M7PCSLNMS-00
Bulk: 9M7PCSLNNS-00 |
