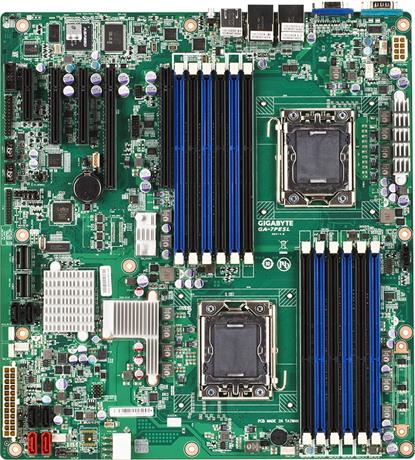

| Form Factor |
E-ATX / SSI EEB
305W x 330D (mm) |
| CPU |
Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families |
| Socket |
2 x LGA 1356 |
| Chipset |
Intel® C602 |
| Memory |
12 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only |
| LAN |
2 x GbE LAN ports (Intel® 82574L)
1 x 10/100 management LAN |
| Video |
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x120060Hz 32bpp |
| Audio |
- |
| SAS |
1 x Mini-SAS connector (for 4 x SATA 3Gb/s ports)
1 x Mini-SAS connector (disabled, can be enabled via Intel® upgrade key) |
| SATA |
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports |
| RAID |
Intel® SATA RAID 0/1/10/5 |
| Expansion Slots |
2 x PCIe x16 (Gen3 x16 bus) slots
1 x PCIe x8 (Gen3 x4 bus) slot
1 x PCIe x8 (Gen2 x4 bus) slot
1 x PCIe x4 (Gen2 x1 bus) |
| Internal I/O |
1 x 24-pin main power connector
2 x 8-pin 12V power connectors
4 x System fan headers
2 x CPU fan headers
1 x PMBus connector
1 x SGPIO connector
1 x BIOS write protect jumper
2 x SATA port DOM support jumpers
4 x SATA II 3Gb/s ports
1 x Patsburg-A SKU Select connector
1 x RAID select connector
2 x SATA III 6Gb/s ports
2 x Mini-SAS connectors
1 x ME enable/disable jumper
1 x BIOS recovery jumper
1 x Clear password jumper
1 x Force to stop FRB3 timer jumper
2 x USB 2.0 headers
1 x Front panel header
1 x Serial header
1 x CMOS battery
1 x Clear CMOS jumper
1 x IPMB connector
1 x BMC firmware readiness LED
1 x TPM header |
| Rear I/O |
4 x USB 2.0
1 x VGA
1 x Serial
3 x RJ45
1 x ID button with LED |
| TPM |
1 x TPM header |
| OS Supported |
Windows Server 2003 R2 SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 6.1 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
| Board Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| PSU Connectors |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors |
| Retail Packaging Content |
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA II 3Gb/s cables (500mm) |
| Reference Numbers |
Retail: 9M7PESLMS-00
Bulk: 9M7PESLNS-00 |
