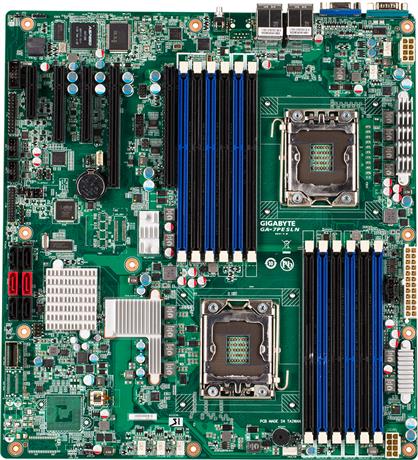

Form Factor |
E-ATX / SSI EEB
305W x 330D (mm) |
CPU |
Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families |
Socket |
2 x LGA 1356 |
Chipset |
Intel® C602 |
Memory |
12 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only |
LAN |
2 x GbE LAN ports (Intel® 82574L) |
Video |
Integrated in Aspeed® AST1300
2D Video Graphic Adapter with PCIe bus interface
1920x120060Hz 32bpp |
Audio |
- |
SAS |
1 x Mini-SAS connector (for 4 x SATA II 3Gb/s ports) |
SATA |
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports |
RAID |
Intel® SATA RAID 0/1/10/5 |
Expansion Slots |
2 x PCIe x16 (Gen3 x16 bus) slots
1 x PCIe x8 (Gen3 x4 bus) slot
1 x PCIe x8 (Gen2 x4 bus) slot
1 x PCIe x4 (Gen2 x1 bus) |
Internal I/O |
1 x 24-pin main power connector
2 x 8-pin 12V power connectors
4 x System fan headers
2 x CPU fan headers
1 x PMBus connector
1 x BIOS write protect jumper
1 x Mini-SAS connector
1 x SATA SGPIO connector
4 x SATA II 3Gb/s ports
2 x SATA III 6Gb/s ports
2 x SATA port DOM support jumpers
1 x ME enable/disable jumper
1 x BIOS recovery jumper
1 x Clear password jumper
1 x Force to Stop FRB3 Timer jumper
2 x USB 2.0 headers
1 x Front panel header
1 x Serial header
1 x TPM header |
Rear I/O |
4 x USB 2.0
1 x VGA
1 x Serial
2 x RJ45
1 x ID button with LED |
TPM |
1 x TPM header |
OS Supported |
Windows Server 2003 R2 SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 6.1 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
Board Management |
- |
PSU Connectors |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors |
Retail Packaging Content |
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm) |
Reference Numbers |
Retail: 9M7PESLNMS-00
Bulk: 9M7PESLNNS-00 |
