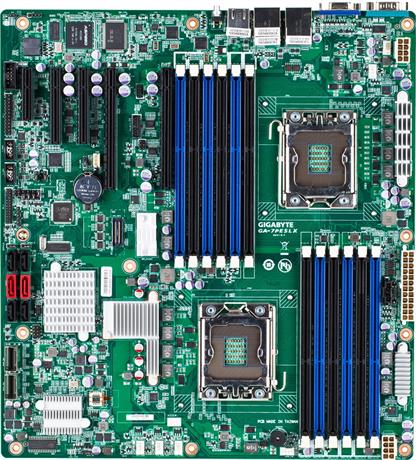

GA-7PESLX (rev. 1.0)

製品種別 マザーボード
CPUソケット数
CPU

CPUソケット LGA1356
マザーボードサイズ Extended ATX (SSI EEB)
製品説明

製品仕様

Form Factor E-ATX / SSI EEB 305W x 330D (mm)
CPU Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families
Socket 2 x LGA 1356
Chipset Intel® C602
Memory 12 x DIMM slots Tri channel memory architecture ECC & non-ECC UDIMM/RDIMM modules supported Single and dual rank UDIMM modules up to 8GB supported Single, dual and quad rank RDIMM modules up to 32GB supported 1.35V modules: 800/1066/1333 MHz 1.5V modules: 800/1066/1333/(1600*) MHz *RDIMM only
LAN 2 x GbE LAN ports (Intel® 82574L) 1 x 10/100 management LAN
Video Integrated in Aspeed® AST2300 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp
Audio -
SAS 2 x Mini-SAS connectors (for 8 x SAS 6Gb/s ports)
SATA 2 x SATA III 6Gb/s ports 4 x SATA II 3Gb/s ports
RAID Intel® SATA RAID 0/1/10/5 LSI® SAS2008 RAID 0/1/1E/10
Expansion Slots 2 x PCIe x16 (Gen3 x16 bus) slots 1 x PCIe x8 (Gen3 x4 bus) slot 1 x PCIe x8 (Gen2 x4 bus) slot 1 x PCIe x4 (Gen2 x1 bus) slot
Internal I/O 1 x 24-pin main power connector 2 x 8-pin 12V power connectors 4 x System fan headers 2 x CPU fan headers 1 x PMBus connector 1 x LSI® RAID select connector 1 x BIOS write protect jumper 1 x LSI® firmware readiness LED 2 x Mini-SAS connectors 1 x SATA SGPIO connector 4 x SATA II 3Gb/s ports 2 x SATA III 6Gb/s ports 2 x SATA port DOM support jumpers 1 x ME enable/disable jumper 1 x BIOS recovery jumper 1 x Clear password jumper 1 x Force to Stop FRB3 Timer jumper 2 x USB 2.0 headers 1 x Front panel header 1 x Serial header 1 x TPM header
Rear I/O 4 x USB 2.0 1 x VGA Š1 x Serial 3 x RJ45 1 x ID button with LED
TPM 1 x TPM header
OS Supported Windows Server 2003 R2 SP2 (x86/x64) Windows Server 2008 SP2 (x86/x64) Windows Server 2008 R2 (x64) Red Hat Enterprise Linux 6.1 (x86/x64) SUSE Linux Enterprise Server 11.1 (x86/x64) VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management Aspeed® AST2300 management controller Avocent® MergePoint IPMI 2.0 web interface:Network settings Network security settings Users control Services settings IPMI settings Sessions control LDAP settings Power control Voltages, fans and temperatures monitoring System event log Events management (platform events, trap settings, email settings) Serial Over LAN vKVM & vMedia (launch, configuration)
PSU Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
Retail Packaging Content 1 x Driver CD 1 x I/O shield 2 x SATA II 3Gb/s cables (500mm)
Reference Numbers Retail: 9M7PESLXMS-00 Bulk: 9M7PESLXNS-00
