製品情報

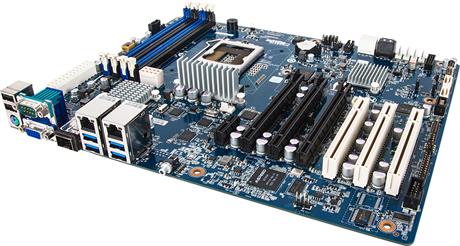

GA-6LXGL (rev. 1.0)

製品種別 マザーボード
CPUソケット数
CPU


CPUソケット LGA1150 (Socket H3)
マザーボードサイズ ATX
製品説明

製品仕様

Form Factor ATX 305W x 244D (mm)
CPU Supports Intel® Xeon® processor E3-1200 V3 product family Supports 4th gen Intel® Core™ i3 processors
Socket 1 x LGA 1150
Chipset Intel® C224
Memory 4 x DIMM slots Supports ECC UDIMM modules only Supports single rank and dual rank UDIMM modules Up to 32GB 1333/1600 MHz
LAN 2 x GbE LAN ports (Intel® I210) 1 x 10GbE SFP+ LAN ports (Intel® 82599)
Video Integrated in Aspeed® AST2400-VB 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp
Audio -
SAS -
SATA 4 x SATA III 6Gb/s ports 2 x SATA II 3Gb/s ports
RAID Intel® SATA RAID 0/1/10/5
Expansion Slots 1 x PCIe x16 (Gen3 x16 bus) slot 1 x PCIe x1 (Gen2 x1 bus) slot 3 x PCI slots or (via PCIe switch): 2 x PCIe x16 (Gen3 x8 bus) slots 1 x PCIe x1 (Gen2 x1 bus) slot 3 x PCI slots or (via PCIe switch): 1 x PCIe x16 (Gen3 x8 bus) slot 2 x PCIe x16 (Gen3 x4 bus) slots 1 x PCIe x1 (Gen2 x1 bus) slot 3 x PCI slots
Internal I/O 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x PMBus Select jumper 1 x PMBus connector 1 x BIOS upgrade ROM 1 x Battery socket 1 x Case open intrusion header 1 x S3 Power On Select jumper 1 x BIOS recovery jumper 1 x Skip supervisor password jumper 1 x ME recovery jumper 1 x Clear CMOS jumper 1 x TPM header 4 x SATA III 6Gb/s ports 2 x SATA II 3Gb/s ports 4 x System fan headers 1 x USB 3.0 header 1 x USB 2.0 header 1 x USB 2.0 vertical Type A port 1 x SATA port 1 DOM support jumper 1 x SATA port 0 DOM support jumper 1 x ME recovery jumper 1 x IPMB connector 1 x Back plane board header 1 x SGPIO header 1 x Front panel header 1 x Serial header 1 x BMC upgrade ROM 1 x CPU fan header 1 x BMC readiness LED
Rear I/O 4 x USB 3.0 2 x USB 2.0 1 x PS/2 1 x VGA 1 x Serial 2 x RJ45 1 x SPF+ 1 x ID button with LED
TPM 1 x TPM header
OS Supported Windows Server 2008 R2 (x64) Windows Server 2008 SP1 (x32) Windows Server 2012 (x64) Red Hat Enterprise Linux 5.9 (x86/x64) Red Hat Enterprise Linux 6.4 (x86/x64) SUSE Linux Enterprise Server 11.3 (x86/x64) VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management -
PSU Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Retail Packaging Content 1 x Driver CD 1 x I/O shield 2 x SATA II 3Gb/s cables (500mm)
Reference Numbers Retail: 9M6LXGLMR-00 Bulk: 9M6LXGLNR-00
