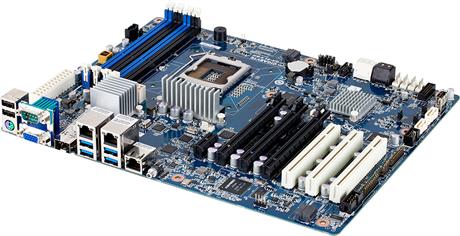

| Form Factor |
ATX
305W x 244D (mm) |
| CPU |
Supports Intel® Xeon® processor E3-1200 V3 product family
Supports 4th gen Intel® Core™ i3 processors |
| Socket |
1 x LGA 1150 |
| Chipset |
Intel® C224 |
| Memory |
4 x DIMM slots
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1333/1600 MHz |
| LAN |
2 x GbE LAN ports (Intel® I210)
1 x 10GbE SFP+ LAN port (Intel® 82599)
1 x 10/100 management LAN |
| Video |
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Audio |
- |
| SAS |
- |
| SATA |
4 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports |
| RAID |
Intel® SATA RAID 0/1/10/5 |
| Expansion Slots |
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots
or (via PCIe switch):
2 x PCIe x16 (Gen3 x8 bus) slots
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots
or (via PCIe switch):
1 x PCIe x16 (Gen3 x8 bus) slot
2 x PCIe x16 (Gen3 x4 bus) slots
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots |
| Internal I/O |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x PMBus Select jumper
1 x PMBus connector
1 x BIOS upgrade ROM
1 x Battery socket
1 x Case open intrusion header
1 x S3 Power On Select jumper
1 x BIOS recovery jumper
1 x Skip supervisor password jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x TPM header
4 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x USB 2.0 vertical Type A port
1 x SATA port 1 DOM support jumper
1 x SATA port 0 DOM support jumper
1 x ME recovery jumper
1 x IPMB connector
1 x Back plane board header
1 x SGPIO header
1 x Front panel header
1 x Serial header
1 x BMC upgrade ROM
1 x CPU fan header
1 x BMC readiness LED |
| Rear I/O |
4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
3 x RJ45
1 x SFP+
1 x ID button with LED |
| TPM |
1 x TPM header |
| OS Supported |
Windows Server 2008 R2 (x64)
Windows Server 2008 SP1 (x32)
Windows Server 2012 (x64)
Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)
SUSE Linux Enterprise Server 11.3 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
| Board Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| PSU Connectors |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector |
| Retail Packaging Content |
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cable (500mm) |
| Reference Numbers |
Retail: 9M6LXGHMR-00
Bulk: 9M6LXGHNR-00 |
