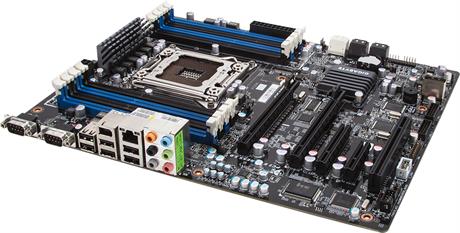

| Form Factor |
ATX
305W x 244D (mm) |
| CPU |
Supports:
Intel® Xeon® E5-2600 V2 processors
Intel® Xeon® E5-1600 V2 processors
Intel® Xeon® E5-2600 processors
Intel® Xeon® E5-1600 processors
|
| Socket |
1 x LGA 2011
Mounting pitch: square ILM (80x80mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
| Chipset |
Intel® C604 |
| Memory |
8 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors onlyDownload the detailed memory configuration table for the E5-1600/2600 V2 processorsDownload the detailed memory configuration table for the E5-1600/2600 processors |
| LAN |
1 x GbE LAN port (Intel® 82579LM) |
| Video |
- |
| Audio |
Realtek® ALC892 controller
Supports 2/4/5.1/7.1 channel configurations
Support for Dolby Home Theater
Support for S/PDIF In/Out
Support for CD-In
|
| SAS |
1 x Mini-SAS (for 4 x SAS 3Gb/s ports) |
| SATA |
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports |
| RAID |
Intel® SATA RAID 0/1/10/5
Intel® SAS RAID 0/1/10 |
| Expansion Slots |
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x8 (Gen3 x8 bus) slot
1 x PCIe x4 (Gen2 x4 bus) slot
1 x PCI slot |
| Internal I/O |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x System fan headers
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x CMOS battery
1 x Power LED header
1 x Clear CMOS jumper
1 x Front panel connector
1 x Front audio header
1 x Mini-SAS connector
2 x USB 3.0 headers
1 x TPM header
1 x IEEE 1394 header
1 x BIOS write protect jumper
1 x ME recovery jumper
1 x BIOS recovery jumper
1 x Clear password jumper
1 x S/PDIF header |
| Rear I/O |
6 x USB 2.0
1 x IEEE 1394
2 x Serial
1 x RJ45
6 x Audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone) |
| TPM |
1 x TPM header |
| OS Supported |
Windows Server 2008 SP2 (x86)
Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows 7 (x86/x64)
Red Hat Enterprise Linux 5.7 (x86/x64)
Red Hat Enterprise Linux 6.1 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
| Board Management |
- |
| PSU Connectors |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector |
| Retail Packaging Content |
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm) |
| Reference Numbers |
Retail: 9M6PXSV1MS-00 |
