製品情報

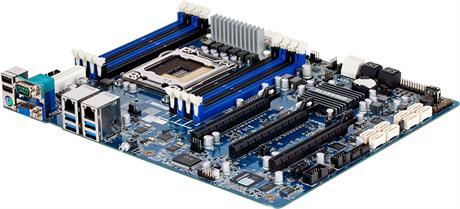

GA-6PXSVL (rev. 1.0)

製品種別 マザーボード
CPUソケット数
CPU



CPUソケット LGA2011
マザーボードサイズ ATX
製品説明

製品仕様

Form Factor ATX 305W x 244D (mm)
CPU Supports: Intel® Xeon® E5-2600 V2 processors Intel® Xeon® E5-1600 V2 processors Intel® Xeon® E5-2600 processors Intel® Xeon® E5-1600 processors
Socket 1 x LGA 2011 Mounting pitch: narrow ILM (56x94mm)Recommended cooling device dimension: 70x106mm Compatible coolers (for reference only):Noctua NH-U9DX i4 Noctua NH-U12DX i4 Dynatron R27 Dynatron R25 Dynatron R24 Dynatron T318A Dynatron R23 Dynatron T318 Dynatron R13 Dynatron R19 Dynatron R14 Dynatron R12 Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard
Chipset Intel® C602
Memory 8 x DIMM slots Quad channel memory architecture ECC & non-ECC UDIMM/RDIMM modules supported Single and dual rank UDIMM modules up to 8GB supported Single, dual and quad rank RDIMM modules up to 32GB supported 1.35V modules: 1066/1333/(1600*) MHz 1.5V modules: 1066/1333/1600/(1866*) MHz *Supported by Intel® Xeon® E5-2600 V2 processors onlyDownload the detailed memory configuration table for the E5-1600/2600 V2 processorsDownload the detailed memory configuration table for the E5-1600/2600 processors
LAN 2 x GbE LAN ports (Intel® 82574L)
Video Integrated in Aspeed® AST2400-VB 2D Video Graphic Adapter with PCIe bus interface 128MB memory 1920x1200@60Hz 32bpp
Audio -
SAS -
SATA 2 x SATA III 6Gb/s supporting SATA DOM 8 x SATA III 6Gb/s from Marvell® 88SE9230 controller 4 x SATA II 3Gb/s
RAID Intel® SATA RAID 0/1/10/5 Marvell® SATA RAID 0/1/10
Expansion Slots 2 x PCIe x16 (Gen3 x16 bus) slots or (via PCIe switch): 1 x PCIe x16 (Gen3 x16 bus) slot 2 x PCIe x16 (Gen3 x8 bus) slots
Internal I/O 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connectors 1 x CPU fan headers 4 x System fan headers 1 x USB 2.0 vertical Type A 1 x USB 3.0 header 1 x USB 2.0 header 10 x SATA III 6Gb/s ports 4 x SATA II 3Gb/s ports 2 x SATA port DOM support jumpers 1 x SATA SGPIO header 1 x Front panel header 1 x HDD back plane board header 1 x TPM header 1 x Serial header 1 x LPC header 1 x Chassis intrusion header 1 x PMBus connector 1 x PMBus selector jumper 1 x BIOS recovery jumper 1 x Skip supervisor password jumper 1 x ME recovery jumper 1 x Clear CMOS jumper 1 x BMC_FRB1 jumber 1 x LAN3_ACT header 1 x BMC LED header 1 x BIOS write protect jumper 1 x PCIe switch jumper
Rear I/O 4 x USB 3.0 2 x USB 2.0 1 x PS/2 1 x Serial 1 x VGA 2 x RJ45 1 x ID button with LED
TPM 1 x TPM header
OS Supported Windows Server 2008 SP2 (x86) Windows Server 2008 R2 SP1 (x64) Windows Server 2012 (x64) Windows Server 2012 R2 (x64) Windows 7 (x86/x64) Red Hat Enterprise Linux 5.7 (x86/x64) Red Hat Enterprise Linux 6.1 (x86/x64)
Board Management -
PSU Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connectors
Retail Packaging Content 1 x Driver CD 1 x I/O shield 2 x SATA cables (500mm)
Reference Numbers Retail: 9M6PXSVLMR-SI
