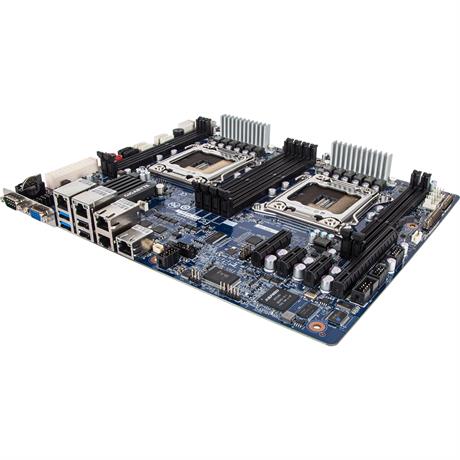

| Form Factor |
ATX
305W x 244D (mm) |
| CPU |
Supports:
Intel® Xeon® E5-2600 V2 processors
Intel® Xeon® E5-1600 V2 processors (single CPU configuration only)
Intel® Xeon® E5-2600 processors
Intel® Xeon® E5-1600 processors (single CPU configuration only)
|
| Socket |
2 x LGA 2011
Mounting pitch: square ILM (80x80mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
| Chipset |
Intel® C602 |
| Memory |
8 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel Xeon E5-2600 V2 processors onlyDownload the detailed memory configuration table for the E5-1600/2600 V2 processorsDownload the detailed memory configuration table for the E5-1600/2600 processors |
| LAN |
4 x GbE LAN ports (Intel® 82574L)
1 x 10/100 management LAN port |
| Video |
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Audio |
Realtek® ALC887 controller
Supports 2/4/5.1/7.1 channel configurations
Support for S/PDIF-Out
|
| SAS |
4 x SAS ports (for 4 x SATA II 3Gb/s ports)
Can be upgraded to SAS 3Gb/s via upgrade ROM |
| SATA |
2 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports |
| RAID |
Intel® SATA RAID 0/1/10/5
Intel® SAS RAID 0/1/10 (via upgrade ROM) |
| Expansion Slots |
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x4 (Gen3 x4 bus) slot
2 x PCIe x1 (Gen2 x1 bus) slots |
| Internal I/O |
2 x 8-pin ATX 12V power connectors
1 x 24-pin ATX main power connector
1 x CMOS battery
1 x PMBus connector
1 x Chassis intrusion header
2 x SATA III 6Gb/s ports (SATA1 support SATA DOM function)
2 x SATA II 3Gb/s ports
4 x SAS/SATA 3Gb/s ports
2 x CPU fan headers
4 x System fan headers
1 x HDD back plane board header
1 x Front panel header
1 x IPMB connector
2 x USB 2.0 headers
1 x Serial header
1 x PS/2 header
1 x BMC firmware readiness LED
1 x S/PDIF-Out header
1 x TPM header
1 x Front audio header
1 x Flash descriptor security jumper
1 x BIOS write protect jumper
1 x Intel C600 series upgrade key
2 x SATA SGPIO headers
1 x PMBUS select jumper
1 x S3 power on select jumper
1 x Force to stop FRB1 timer jumper
1 x Clear CMOS jumper
1 x ME recovery jumper
1 x Cleaning supervisor password jumper
1 x BIOS recovery jumper |
| Rear I/O |
2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x Serial
5 x RJ45 |
| TPM |
1 x TPM header |
| OS Supported |
Windows Server 2003 R2 SP2 (x86/x64)
Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x64)
Windows 7 SP1 Ultimate (x86/x64)
Windows 8 Enterprise (x86/x64)
Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)
SuSE Linux Enterprise Server 11.3 SP3 (x86/x64) |
| Board Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| PSU Connectors |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors |
| Retail Packaging Content |
1 x Driver CD
1 x User manual
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm) |
| Reference Numbers |
Retail: 9M7PXSL1MR-00
Bulk: 9M7PXSL1NR-00 |
