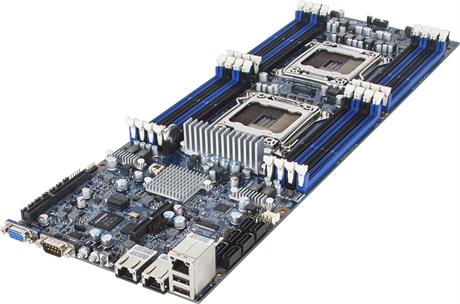

| Form Factor |
Proprietary half-width form factor
165W x 490D (mm) |
| CPU |
Supports:
Intel® Xeon® E5-2600 V2 processors
Intel® Xeon® E5-2600 processors
|
| Socket |
2 x LGA 2011
Mounting pitch: square ILM (80x80mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
| Chipset |
Intel® C602 |
| Memory |
16 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors onlyDownload the detailed memory configuration table for the E5-1600/2600 V2 processorsDownload the detailed memory configuration table for the E5-1600/2600 processors |
| LAN |
2 x GbE LAN ports (Intel® I350-AM2)
1 x 10/100 management LAN |
| Video |
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Audio |
- |
| SAS |
SAS ports available via upgrade ROM |
| SATA |
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports |
| RAID |
Intel® SATA RAID 0/1/10/5 |
| Expansion Slots |
1 x Mezzanine I/F PCIe x8 (Gen3 x8 bus) slot
1 x Low profile PCIe x16 (Gen3 x16 bus) slot |
| Internal I/O |
2 x 18-pin power connectors
1 x Front panel header
1 x Battery socket
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x SATA SGPIO header
1 x Front USB 2.0 header
1 x LPC header |
| Rear I/O |
2 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45
1 x Power button
1 x ID switch button with LED
1 x NMI button
1 x BMC reset button
1 x Power status LED |
| TPM |
- |
| OS Supported |
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 SP1 (x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
| Board Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| PSU Connectors |
2 x 18-pin power connectors |
| Retail Packaging Content |
- |
| Reference Numbers |
9M7PTSHNR-00 |
