| Form Factor |
E-ATX / SSI EEB
305W x 330D (mm) |
| CPU |
Supports:
Intel® Xeon® E5-2600 V2 processors
Intel® Xeon® E5-1600 V2 processors (single CPU configuration only)
Intel® Xeon® E5-2600 processors
Intel® Xeon® E5-1600 processors (single CPU configuration only)
|
| Socket |
2 x LGA 2011
Mounting pitch: square ILM (80x80mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
| Chipset |
Intel® C602 |
| Memory |
8 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors onlyDownload the detailed memory configuration table for the E5-1600/2600 V2 processorsDownload the detailed memory configuration table for the E5-1600/2600 processors |
| LAN |
2 x GbE LAN ports (Intel® I210)
1 x 10/100 management LAN |
| Video |
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
128MB memory
1920x1200@60Hz 32bpp |
| Audio |
- |
| SAS |
- |
| SATA |
2 x SATA III 6Gb/s
8 x SATA II 3Gb/s |
| RAID |
Intel® SATA RAID 0/1/10/5 |
| Expansion Slots |
2 x PCIe x16 (Gen3 x16 bus) slots
2 x PCIe x16 (Gen3 x8 bus) slots |
| Internal I/O |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
4 x System fan headers
1 x USB 2.0 header
2 x SATA III 6Gb/s ports
8 x SATA II 3Gb/s ports
2 x SATA port DOM support jumpers
2 x SATA SGPIO headers
1 x Front panel header
1 x HDD back plane board header
1 x TPM header
1 x Serial header
1 x IPMB header
1 x Chassis intrusion header
1 x PMBus jumper
1 x BIOS recovery jumper
1 x Skip supervisor password jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x S3_MASK jumper
1 x Flash descriptor security jumper
1 x Force to Stop FRB3 Timer jumper
1 x BIOS write protect jumper
1 x SKU key header |
| Rear I/O |
4 x USB 3.0
2 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED |
| TPM |
1 x TPM header |
| OS Supported |
Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x86/x64)
Red Hat Enterprise Linux 5.8 (x64)
Red Hat Enterprise Linux 6.3 (x64)
SUSE Linux Enterprise Server 11.3 (x86/x64) |
| Board Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| PSU Connectors |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors |
| Retail Packaging Content |
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm) |
| Reference Numbers |
Retail: 9M7PESVLMR-00
Bulk: 9M7PESVLNR-00 |

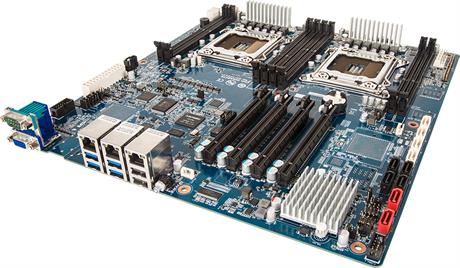

![](/admin/imgs/gigabyte/GA-7PESVL.jpg?8.68268297593207")
