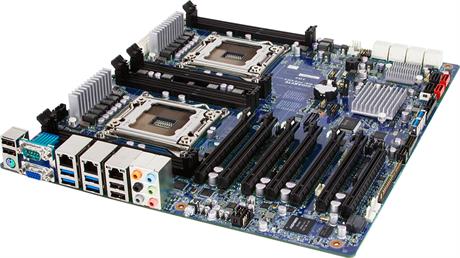

| Form Factor |
E-ATX / SSI EEB
305W x 330D (mm) |
| CPU |
Supports:
Intel® Xeon® E5-2600 V2 processors
Intel® Xeon® E5-1600 V2 processors (single CPU configuration only)
Intel® Xeon® E5-2600 processors
Intel® Xeon® E5-1600 processors (single CPU configuration only)
|
| Socket |
2 x LGA 2011
Mounting pitch: square ILM (80x80mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
| Chipset |
Intel® C602 |
| Memory |
8 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors onlyDownload the detailed memory configuration table for the E5-1600/2600 V2 processorsDownload the detailed memory configuration table for the E5-1600/2600 processors |
| LAN |
2 x GbE LAN ports (Intel® 82574L)
1 x 10/100 management LAN |
| Video |
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Audio |
Realtek® ALC892 controller
Supports 2/4/5.1/7.1 channel configurations
Support for Dolby Home Theater
Support for S/PDIF In/Out
Support for CD-In
|
| SAS |
8 x SAS 6Gb/s ports |
| SATA |
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports |
| RAID |
Intel® SATA RAID 0/1/10/5
LSI® SAS2008 RAID 0/1/1E/10 |
| Expansion Slots |
1 x PCIe x16 (Gen3 x16 bus) slot
6 x PCIe x16 (Gen3 x8 bus) slots
or (via PCIe switch):
4 x PCIe x16 (Gen3 x16 bus) slots
Support NVIDIA® SLI™ and AMD® CrossFireX™ technologies (4-way) |
| Internal I/O |
2 x CPU fan headers
4 x System fan headers
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x PMBus connector
2 x SAS SGPIO headers
4 x SAS 6Gb/s ports
1 x SATA SGPIO header
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x LSI RAID key header
2 x SATA port DOM support jumpers
2 x USB 3.0 vertical Type A
1 x TPM header
1 x CMOS battery
1 x BIOS write protect jumper
1 x Clear CMOS jumper
1 x USB 3.0 header
1 x USB 2.0 header
1 x HDD back plane board header
1 x Front panel header
1 x Skip supervisor password jumper
1 x S3 Power On Select jumper
1 x ME recovery jumper
1 x Chassis intrusion header
1 x BIOS recovery jumper
1 x IPMB connector
1 x BMC firmware readiness LED
1 x Force to Stop FRB1 Timer jumper
1 x Front audio header
1 x S/PDIF-Out header
1 x PMBus Power Select jumper |
| Rear I/O |
4 x USB 3.0
4 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
3 x RJ45
6 x Audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
1 x ID button with LED |
| TPM |
1 x TPM header |
| OS Supported |
Windows Server 2008 SP2 (x86) & R2 (x64)
Windows Vista SP2 (x86/x64)
Red Hat Enterprise Linux 5.6 (x86/x64)
Red Hat Enterprise Linux 6.11 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
| Board Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| PSU Connectors |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors |
| Retail Packaging Content |
1 x Driver CD
1 x Quick reference guide chassis sticker
1 x I/O shield
1 x Quad SLI™ bridge
1 x Tri SLI™ bridge
1 x SLI™ bridge
3 x CrossFireX™ bridges
1 x Dual USB 3.0 ports front panel
1 x Dual USB 2.0 ports bracket
2 x SATA III 6Gb/s cables (600mm)
4 x SATA II 3Gb/s cables (500mm) |
| Reference Numbers |
Retail: 9A7PESH3MS-00
Bulk: 9M7PESH3NS-00 |
