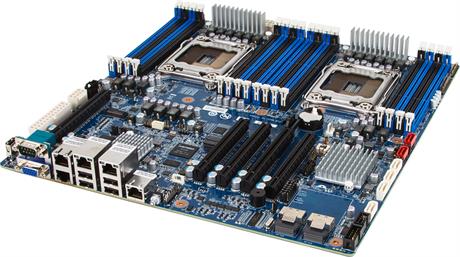

| Form Factor |
E-ATX / SSI EEB
305W x 330D (mm) |
| CPU |
Supports:
Intel® Xeon® E5-2600 V2 processors
Intel® Xeon® E5-1600 V2 processors (single CPU configuration only)
Intel® Xeon® E5-2600 processors
Intel® Xeon® E5-1600 processors (single CPU configuration only)
|
| Socket |
2 x LGA 2011
Mounting pitch: narrow ILM (56x94mm)Recommended cooling device dimension: 70x106mm
Compatible coolers (for reference only):Noctua NH-U9DX i4
Noctua NH-U12DX i4
Dynatron R27
Dynatron R25
Dynatron R24
Dynatron T318A
Dynatron R23
Dynatron T318
Dynatron R13
Dynatron R19
Dynatron R14
Dynatron R12
Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard |
| Chipset |
Intel® C602 |
| Memory |
16 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors onlyDownload the detailed memory configuration table for the E5-1600/2600 V2 processorsDownload the detailed memory configuration table for the E5-1600/2600 processors |
| LAN |
4 x GbE LAN ports (Intel® I350-AM4)
1 x 10/100 management LAN |
| Video |
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Audio |
- |
| SAS |
1 x Mini-SAS (for 4 x SATA 3Gb/s ports)
1 x Mini-SAS (disabled, can be enabled via Intel® upgrade key) |
| SATA |
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports |
| RAID |
Intel® SATA RAID 0/1/10/5 |
| Expansion Slots |
3 x PCIe x16 (Gen3 x16 bus) slots
2 x PCIe x16 (Gen3 x8 bus) slots
or (via PCIe switch):
4 x PCIe x16 (Gen3 x16 bus) slots |
| Internal I/O |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x PMBus connector
4 x System fan headers
2 x CPU fan headers
1 x USB 2.0 vertical Type A port
1 x HDD back plane board header
1 x Front panel header
1 x SATA1 port DOM support jumper
1 x SATA2 port DOM support jumper
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x USB 2.0 header
1 x Serial header
2 x Mini-SAS cable connectors
1 x S3_MASK jumper
1 x Flash descriptor security jumper
1 x Clear CMOS jumper
1 x ME recovery jumper
1 x Skip supervisor password jumper
1 x BIOS recovery jumper
1 x Force to Stop FRB3 Timer jumper
1 x BIOS write protect jumper
1 x TPM header
1 x SATA SGPIO header
1 x IPMB connector
1 x Chassis intrusion header |
| Rear I/O |
4 x USB 2.0
1 x VGA
1 x Serial
5 x RJ45
1 x ID button with LED |
| TPM |
1 x TPM header |
| OS Supported |
Windows Server 2008 SP2 (x86)
Windows Server 2008 R2 (x64)
Windows Vista SP2 (x86/x64)
Red Hat Enterprise Linux 5.6 (x86/x64)
Red Hat Enterprise Linux 6.1 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2 |
| Board Management |
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)
|
| PSU Connectors |
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors |
| Retail Packaging Content |
1 x Driver CD
1 x I/O shield
1 x Dual USB 2.0 ports bracket
1 x Serial port bracket
2 x SATA III 6Gb/s cables (600mm)
4 x SATA II 3Gb/s cables (500mm)
1 x Mini-SAS to 4 x SAS 6Gb/s cable
1 x Power cable extension (180mm) |
| Reference Numbers |
Retail: 9M7PESH4MS-00
Bulk: 9M7PESH4NS-00 |
