製品情報

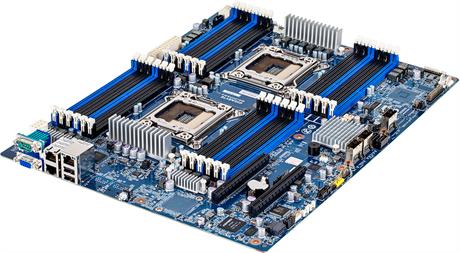

GA-7PPSH2 (rev. 1.0)

製品種別 マザーボード
CPUソケット数
CPU

CPUソケット LGA2011
マザーボードサイズ Extended ATX (SSI EEB)
製品説明

製品仕様

Form Factor Proprietary form factor, compatible with EEB 305W x 395D mm
CPU Supports: Intel® Xeon® E5-2600 V2 processors Intel® Xeon® E5-1600 V2 processors (single CPU configuration only) Intel® Xeon® E5-2600 processors Intel® Xeon® E5-1600 processors (single CPU configuration only)
Socket 2 x LGA 2011 Mounting pitch: square ILM (80x80mm)Max. length of M4 screw threads: 3.7mmScrews longer than 3.7mm might damage the motherboard
Chipset Intel® C602
Memory 24 x DIMM slots Quad channel memory architecture ECC & non-ECC UDIMM/RDIMM modules supported Single and dual rank UDIMM modules up to 8GB supported Single, dual and quad rank RDIMM modules up to 32GB supported 1.35V modules: 1066/1333/(1600*) MHz 1.5V modules: 1066/1333/1600/(1866*) MHz *Supported by Intel® Xeon® E5-2600 V2 processors onlyDownload the detailed memory configuration table for the E5-1600/2600 V2 processorsDownload the detailed memory configuration table for the E5-1600/2600 processors
LAN 2 x GbE LAN ports (Intel® I350-AM2) 1 x 10/100 management LAN
Video Integrated in Aspeed® AST2300 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp
Audio -
SAS 1 x Mini-SAS (for 4 x SATA II 3Gb/s ports) 2 x Mini-SAS (disabled, can be enabled via Intel® upgrade key)
SATA 2 x SATA III 6Gb/s ports
RAID Intel® SATA RAID 0/1/5/10
Expansion Slots 1 x PCIe x16 (Gen3 x16 bus) slot 1 x PCIe x16 (Gen3 x8 bus) slot
Internal I/O 2 x 8-pin ATX 12V power connectors 1 x 24-pin ATX main power connector 1 x PMBus connector 1 x HDD back plane board connector 2 x CPU fan headers 2 x System fan headers 1 x Front panel header 3 x Mini-SAS cable connectors 2 x SATA III 6Gb/s ports 2 x USB 2.0 headers 1 x IPMB connector 1 x TPM header 1 x Patsburg-A SKU Select connector 1 x RAID select connector 1 x Serial header 1 x CMOS battery
Rear I/O 2 x USB 2.0 1 x VGA 1 x Serial 3 x RJ45 1 x ID button with LED
TPM 1 x TPM header
OS Supported Windows Server 2003 R2 SP1 (x64) Windows Server 2008 SP2 (x86/x64) Red Hat Enterprise Linux 6.2 (x86/x64) SUSE Linux Enterprise Server 11.2 (x86/x64) VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management Aspeed® AST2300 management controller Avocent® MergePoint IPMI 2.0 web interface:Network settings Network security settings Users control Services settings IPMI settings Sessions control LDAP settings Power control Voltages, fans and temperatures monitoring System event log Events management (platform events, trap settings, email settings) Serial Over LAN vKVM & vMedia (launch, configuration)
PSU Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
Retail Packaging Content -
Reference Numbers Bulk: 9M7PPSH2NR-00
