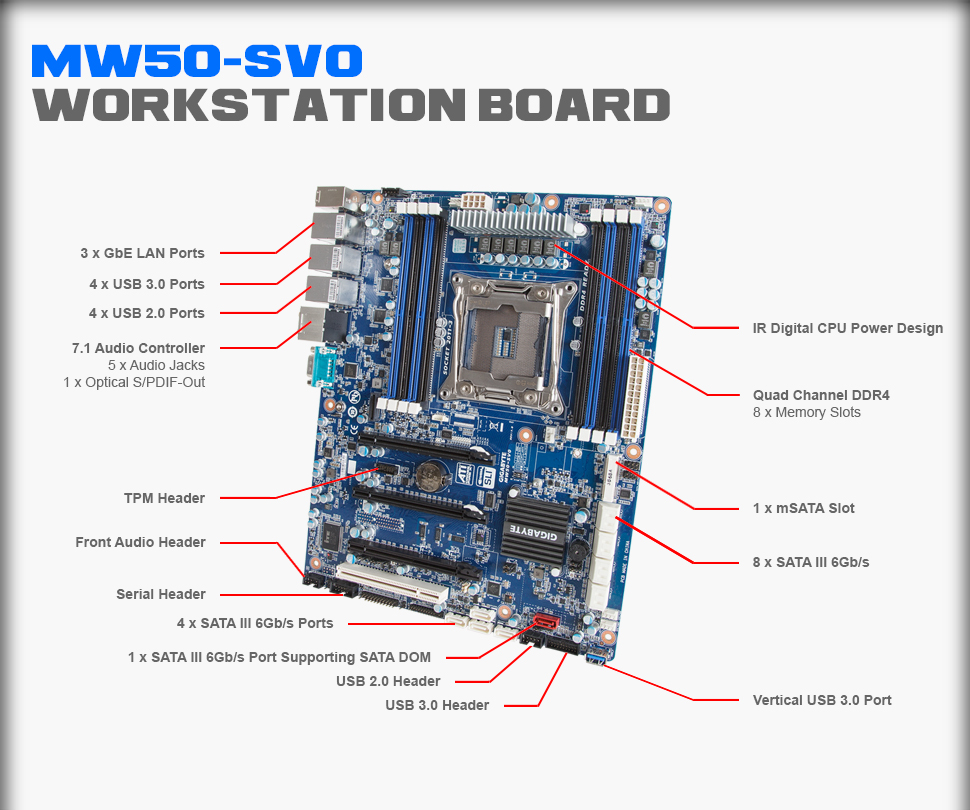

MW50-SV0 (rev. 1.0)
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA2011 |
| マザーボードサイズ | ATX |
| 製品説明 |
製品仕様
| Form Factor | ATX 305W x 244D (mm) |
|---|---|
| CPU | Supports:
|
| Socket | 1 x LGA 2011-3 Mounting pitch: square ILM (80x80mm) Max. length of M4 screw threads: 3.7mm Screws longer than 3.7mm might damage the motherboard |
| Chipset | Intel® C612 |
| Memory | 8 x DIMM slots DDR4 memory supported only Quad channel memory architecture RDIMM modules up to 32GB supported LRDIMM modules up to 64GB supported 3DS LRDIMM modules up to 128GB supported 1.2V modules: 1600/1866/2133/2400 MHz |
| LAN | 2 x GbE LAN ports (Intel® I210) 1 x GbE LAN port (Intel® I218) |
| Video | - |
| Audio | Realtek® ALC887 controller Supports 2/4/5.1/7.1 channel configurations |
| SAS | - |
| SATA | 8 x SATA III 6Gb/s ports 4 x SATA III 6Gb/s ports (Marvell 88SE9230® controller) 1 x SATA III 6Gb/s port supporting SATA DOM 1 x mSATA 6Gb/s slot |
| RAID | Intel® SATA RAID 0/1/10/5 Marvell® SATA RAID 0/1/10 |
| Expansion Slots | 2 x PCIe x16 (Gen3 x16 bus) slots 1 x PCIe x16 (Gen3 x8 bus) slot 1 x PCIe x4 mezzanine card slot 1 x PCI slot Support NVIDIA® SLI™ and AMD® CrossFireX™ technologies (2-way, 3-way) |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 4 x System fan headers 1 x USB 3.0 vertical Type A 1 x USB 3.0 header 1 x USB 2.0 header 1 x Front audio header 1 x S/PDIF-In header 1 x PMBus connector 2 x SATA SGPIO headers 1 x Clear CMOS jumper 13 x SATA III 6Gb/s ports 1 x SATA DOM jumper 1 x Chassis intrusion header 1 x Front panel header 1 x HDD back plane board header 1 x Serial header 1 x TPM header 1 x JPI header 1 x BIOS recovery jumper 2 x PCIe switch jumpers 1 x PMBus selection jumper |
| Rear I/O | 4 x USB 3.0 4 x USB 2.0 1 x PS/2 1 x Serial 3 x RJ45 5 x Audio jacks 1 x Optical S/PDIF-Out |
| TPM | 1 x TPM header |
| OS Compatibility | Windows Server 2008 R2 (x64) Windows Server 2012 (x64) Windows Server 2012 R2 (x64) Windows Server 2016 Windows 7 Ultimate SP1 (x86/x64) Windows 8 Enterprise (x86/x64) Windows 8.1 Enterprise (x86/x64) Windows 10 (x64) Red Hat Enterprise Linux 6.7 (x86/x64) Red Hat Enterprise Linux 7.2 (x64) SUSE Linux Enterprise Server 11.4 (x86/x64) SUSE Linux Enterprise Server 12 (x64) Ubuntu 12.04 LTS (x86/x64) Ubuntu 14.04 LTS (x86/x64) VMware ESXi 5.1 U2 VMware ESXi 5.5 U2 VMware ESXi 6.0 U1 |
| Board Management | Intel® Active Management Technology |
| PSU Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Content | 1 x MW50-SV0 1 x Driver CD 1 x I/O shield 1 x User manual 2 x SATA III 6Gb/s cables (500mm) 1 x Mini-PCIe card bracket 1 x CrossFire™ bridge 1 x 2-way SLI™ bridge 1 x 3-way SLI™ bridge Box dimensions: 360 x 330 x 80 mm |
| Bulk Packaging Content | 10 x MW50-SV0 10 x I/O shields Carton dimensions: 473 x 600 x 495 mm |
| Reference Numbers | Retail: 9AW50SV0MR-00 Bulk: 9MW50SV0NR-00 |
