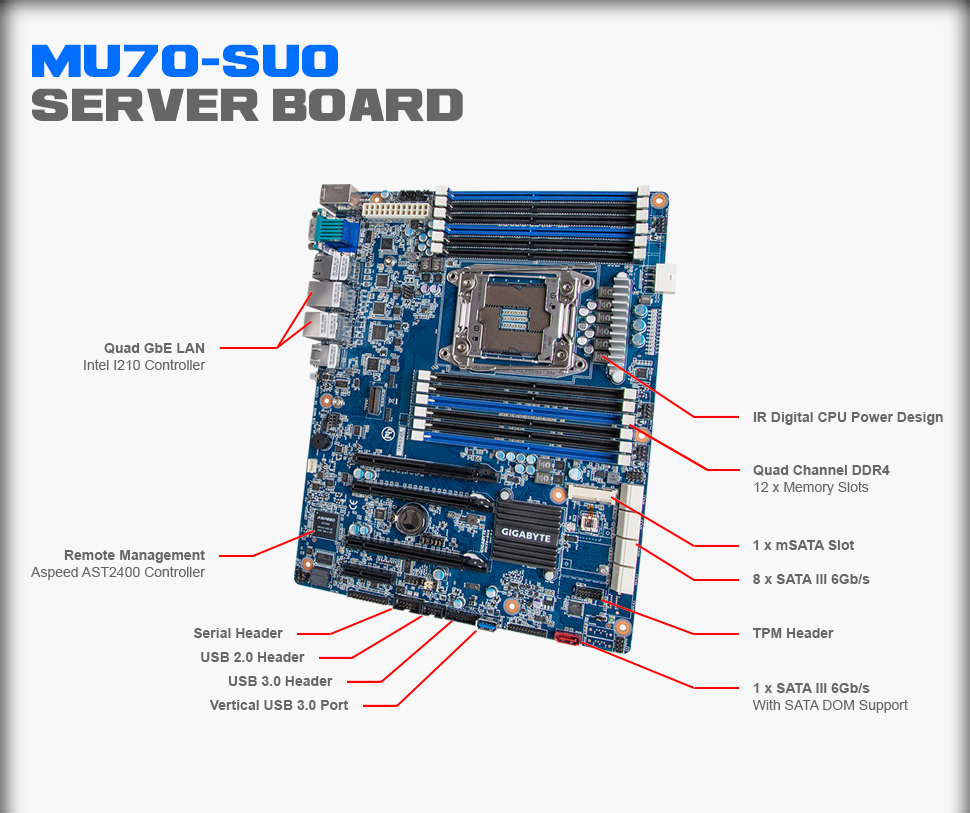

MU70-SU0 (rev. 1.0)

製品種別 マザーボード
CPUソケット数
CPU 　
　
　
　
CPUソケット LGA2011
マザーボードサイズ ATX
製品説明

製品仕様

Form Factor ATX
305W x 244D (mm)
CPU Supports:
  • Intel® Xeon® E5-2600 V3 processors
  • Intel® Xeon® E5-1600 V3 processors
  • Intel® Xeon® E5-2600 V4 processors
  • Intel® Xeon® E5-1600 V4 processors
Socket 1 x LGA 2011-3
Mounting pitch: narrow ILM (56x94mm)
Recommended cooling device dimension: 70x106mm
Compatible coolers (for reference only):
  • Noctua NH-U9DX i4
  • Noctua NH-U12DX i4
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset Intel® C612
Memory 12 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN 4 x GbE LAN ports (Intel® I210)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio -
SAS -
SATA 8 x SATA III 6Gb/s ports
1 x SATA III 6Gb/s port supporting SATA DOM
1 x mSATA 6Gb/s slot
RAID Intel® SATA RAID 0/1/10/5
Expansion Slots 2 x PCIe x16 (Gen3 x16 bus) slots
1 x PCIe x16 (Gen3 x8 bus) slot (Gen3 x4 bus if the mezzanine slot is used)
1 x PCIe x4 (Gen2 x2 bus) slot
1 x PCIe x4 mezzanine card slot
Internal I/O 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
4 x System fan headers
9 x SATA III 6Gb/s ports
1 x USB 3.0 vertical type A
1 x USB 3.0 header
1 x USB 2.0 header
1 x Serial header
1 x PMBus connector
1 x IPMB connector
2 x SATA SGPIO headers
1 x TPM header
1 x Chassis intrusion header
1 x HDD back plane board header
1 x Front panel header
1 x JTAG header
1 x SATA DOM jumper
1 x PCIe switch jumper
1 x PMBus selection jumper
1 x Software RAID jumper
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
Rear I/O 4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x Serial
1 x VGA
5 x RJ45
1 x ID button with LED
TPM 1 x TPM header
OS Compatibility Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016

Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)

SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)

Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)

VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Board Management Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
PSU Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content 1 x MU70-SU0
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA III 6Gb/s cables
Box dimensions: 360 x 330 x 80 mm
Bulk Packaging Content 10 x MU70-SU0
10 x I/O shields
Carton dimensions: 473 x 600 x 495 mm
Reference Numbers Retail: 9MU70SU0MR-00
Bulk: 9MU70SU0NR-00
