製品情報

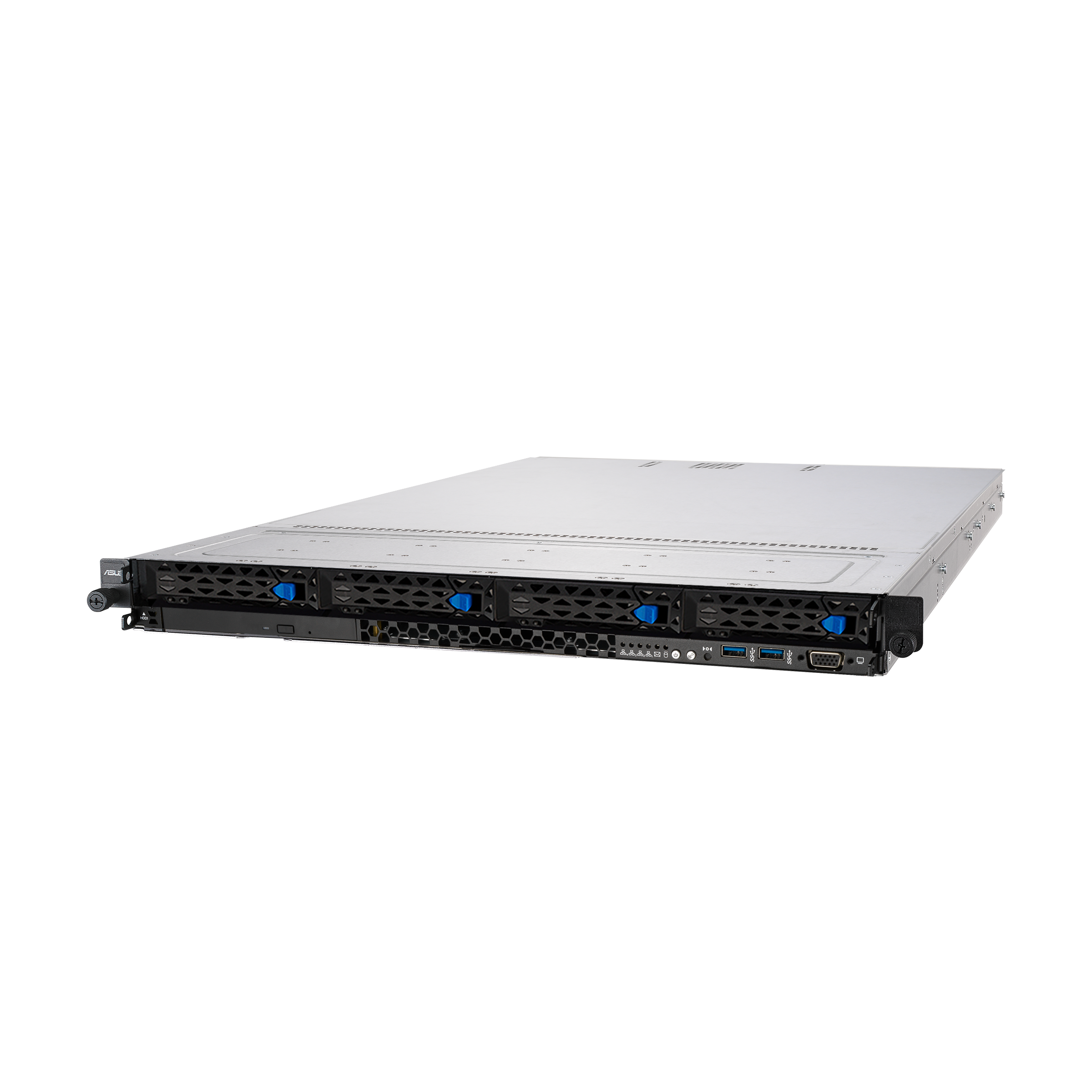

RS700-E10-RS4U

製品種別 サーバ
CPUソケット数 2
CPU
筐体サイズ 1U
最大GPU数 1
電源仕様 リダンダント電源
用途/特長
製品説明 最大32枚のDIMM、1つのデュアルスロットGPU、4つのNVMe、4つのPCIeスロット、1つのOCP 3.0、デュアルM.2、ASUS ASMB10-iKVMをサポートする第3世代Intel Xeon Scalableプロセッサを搭載した1Uデュアルソケットサーバー

第3世代 Intel Xeon Scalable プロセッサーについて


製品仕様

対応/搭載CPU 2 x Socket P+ (LGA 4189)
3rd Gen Intel® Xeon® Scalable Processors Family(270w)
Generation E10
チップセット Intel® C621A Chipset
メインメモリ Total Slots :
32 (8-channel per CPU, 16 DIMM per CPU)
Capacity :
Maximum up to 6TB per socket
Memory Type :
DDR4 3200/2933 RDIMM
DDR4 3200/2933 LRDIMM
DDR4 3200/2933 RDIMM 3DS
Dual Channel 3200/2933
Memory Size :
64GB, 32GB, 16GB, 8GB RDIMM
256GB, 128GB, 64GB RDIMM 3DS
128GB LRDIMM/LR-DIMM 3DS
512GB, 256GB, 128GBIntel® Optane™ DC persistent memory 200 Series (DCPMM)
* Refer to support page for more information
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
拡張スロット Up to 3 x Expansion slots + 1 x Internal PIKE slot
1 x PCIe Gen4 x16, FHFL (CPU1)
1 x PCIe Gen4 x16, FHFL or OCP3.0 (CPU2)
1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2)

*Installing GPU cards will occupied expansion slots.
ストレージ機能 Storage Controller :
Intel C621A
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
Intel®VROC (For Linux/Windows)
(Support Software RAID 0/1/5/10 )
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
Broadcom MegaRAID 9560-16i (Optional)
ドライブベイ 4 x 3.5" hot-swap bays (4 x NVMe/SAS*/SATA)
2 x M.2 connector (NGFF 2280/2260. PCIe Gen4x4 link)

*SAS support only from SAS HBA/RAID card
搭載ビデオカード 9 (if support GPU SKU, it will have external fan)
ネットワーク機能 Option 1
1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
or
Option 2
1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN
or
None x + 1 x Mgmt LAN
グラフィックス機能 Aspeed AST2600 with 64MB VRAM
Multi-GPU Support Please find the latest GPU support from https://servers.asus.com/support/gpu
前面インターフェース 2 x USB 3.2 Gen1 ports
1 x VGA port
後面インターフェース 2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Mgmt LAN port
4/2 x NIC ports*

* The number of NIC ports available depends on the LAN Controller card installed.
Switch/LED Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Reset Switch
1 x Location Switch (w/ LED)
1 x HDD Access LED*
1 x Message LED
LAN 1-4 LED (on NIC module)**
* The HDD Access LED is only functional when an ASUS PIKE II
card is installed and connected.
** The number of LAN LEDs available depends on the LAN
Controller card installed.

Rear Switch/LED:
1 x Port 80 LED (Q-Code)
1 x Power Switch w/ LED
1 x Location Switch w/ LED
対応OS Please find the latest OS support from https://servers.asus.com/support/os
管理マネージメントソリューション ASUS Control Center(Classic) On-Board ASMB10-iKVM for KVM-over-IP
企業コンプライアンス BSMI, CE, FCC(Class A)
サイズ 842.5mm x 449mm x 44mm (1U)
33.17” x 17.68” x 1.73”
フォームファクター(サイズW×D) 1U
質量 Net Weight : 13.7KG
電源仕様 1+1 Redundant 1600W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac, 13A/9.5A (for each inlet), 50-60Hz, Class I

1+1 Redundant 1200W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac, 10A/8A (for each inlet), 50/60Hz, Class I

1+1 Redundant 800W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac, 10A/5A (for each inlet), 50/60Hz, Class I
動作環境 Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 60℃
Non operation humidity: 20% ~ 90% ( Non condensing)
その他 If only 1 CPU is installed, some functions might be not available.
