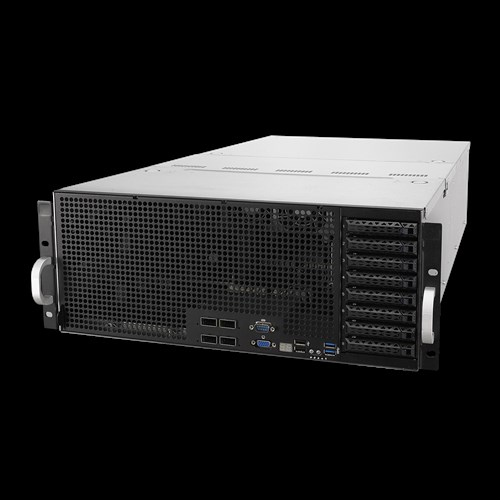

ESC8000 G4/10G
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 4U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family *Refer to support page for more information |
|---|---|
| Core Logic | Intel® Lewisburg PCH C621 |
| Memory | Total Slots : 24 (6-channel per CPU, 12 DIMM per CPU) Capacity : Maximum up to 3072GB LRDIMM Memory Type : DDR4 2933/2666/2400 /2133 RDIMM DDR4 2933/2666/2400 /2133 LRDIMM DDR4 2933/2666/2400 /2133 LR-DIMM 3DS DDR4 Intel® Optane™ DC Persistent Memory Memory Size : 64GB, 32GB, 16GB RDIMM 128GB, 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information |
| Expansion Slots | Full-length/Full-height 8 x PCI-E x16 (Gen3 x16 link) , FH, FL Half-length/Low-profile Rear: Dual root topology: 2 x PCI-E x16 (Gen3 x 16 link), LP, HL or Single root topology: 1 X PCI-E x16 (Gen3 x16 link), LP, HL Front: 1 x PCI-E x8 (Gen3 x8 link) , LP, HL |
| Storage | SATA Controller : Intel® C621 8 x SATA3 6Gb/s ports + 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link 22110/2280/2260) or 6 x SATA3 6Gb/s ports + 2 x NVMe drives + 2 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link 22110/2280/2260) Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) Intel®VROC (For Linux/Windows) (Support Software RAID 0/1 ) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card ASUS PIKE II 3108 8-port SAS HW RAID card 12G SAS Support |
| HDD Bays | 8 x Hot-swap 2.5" HDD Bays |
| Networking | 1 x Dual Port Intel X550-AT2 10GbE LAN controller + 1 x Mgmt LAN |
| Graphic | Aspeed AST2500 with 64MB VRAM |
| Front I/O Ports | 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x VGA port 1 x COM port |
| Rear I/O Ports | 2 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port |
| Switch/LED | Front Switch/LED: 1 x Q-Code/Port 80 LED 1 x Power switch/LED 1 x Location switch/LED 1 x HDD Access LED 1 x Message LED Front Switch/LED: 1 x Q-Code/Port 80 LED 1 x Power switch/LED 1 x Location switch/LED 1 x HDD Access LED 1 x Message LED 2 x LAN LED |
| OS Support | Please find the latest OS support from http://www.asus.com/ |
| Management Solution | ACC On-Board ASMB9-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, FCC(Class A) |
| Dimensions | 798mm x 439mm x 175.6mm |
| Form Factor | 4U |
| Power Supply | 2+1 Redundant 1600W 80PLUS Platinum Power Supply; 100-127 / 200-240Vac, 12.9 / 9.5A（for each inlet）, 47-63Hz, Class I |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
