製品情報

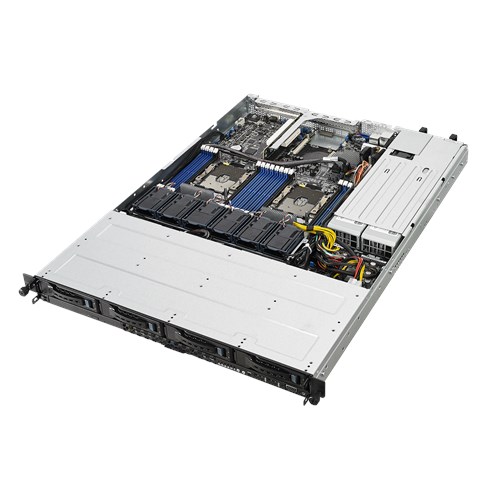

RS500-E9-RS4

製品種別 サーバ
CPU
筐体サイズ 1U
電源仕様
用途/特長
製品説明

製品仕様

Processor / System Bus 2 x Socket P (LGA 3647)
Intel® Xeon® Scalable Processors Family (205W)
Generation E9
Core Logic Intel® Lewisburg PCH C621
Memory Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 2048GB LRDIMM
Memory Type :
DDR4 2666/2400 /2133 RDIMM
DDR4 2666/2400 /2133 LRDIMM
DDR4 2666/2400 /2133 LR-DIMM 3DS
Expansion Slots 1 x PCIe 3.0 x16 Slot(Gen3 x16 link); FH,HL
1 x PCIe 3.0 x8 Slot(Gen3 x8 link); FH,HL
1 x OCP 2.0 Mezzanine Conn.(Gen3 x16 link)
Storage SATA Controller :
Intel® C621
SATA Controller :
Intel® C621
2 x M.2 connector
Optional kits Controller :
ASUS PIKE II 3008 8-port SAS HBA card
ASUS PIKE II 3108 8-port SAS HW RAID card
Drive Bays 4 x 3.5" Hot-swap Storage Bays (Backplane Supports 4 x 3.5" or 2.5" SATA/SAS Devices)
Auxiliary Storage FDD/CD/DVD Optinal Slim-type DVD Drive
Networking 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
Graphic Aspeed AST2500 with 64MB VRAM
Front I/O Ports 2 x USB 3.0 ports
1 x VGA port
Rear I/O Ports 2 x USB 3.0 ports
1 x VGA port
2 x RJ-45 1GbE LAN ports
1 x RJ-45 Management port
Switch/LED Rear:
- 1 x Power Switch/LED
- 1 x Q-Code/Port 80 LED
- 1 x Locatation LED
- 1 x Message LED
Front:
- 1 x Power Switch/LED
- 1 x Location Switch/LED
- 1 x Reset Switch
- 1 x Message LED
- 4 x LAN LED (LED1~2 for on-board LAN, 3~4 for OCP LAN)
OS Support Windows® Server 2016
RedHat® Enterprise Linux
SuSE® Linux Enterprise Server
CentOS
Ubuntu
VMware
Citrix XenServer
Management Solution ASUS Control Center
ASMB9-iKVM for KVM-over-IP
Regulatory Compliance BSMI, CE, FCC(Class A)
Dimensions 24.3 x 17.5 x 1.7 in
616 x 444 x 44 mm
Form Factor 1U
Weight Net Weight: 24.3 lb
Gross Weight: 37.5 lb

Net Weight: 11 Kg
Gross Weight: 17 Kg
Power Supply 1+1 Redundant 770W 80 PLUS Platinum Power Supply
Rating: 100-127/200-240 Vac, 10A/5A, 50-60Hz, Class I
Up to 205W CPU

1+1 Redundant 450W 80 PLUS Gold Power Supply
Rating: 100-127/200-240 Vac, 5.5A/3A, 50-60Hz, Class I
Up to 85W CPU
Note For the full function of the system, please install both CPUs on CPU sockets.
