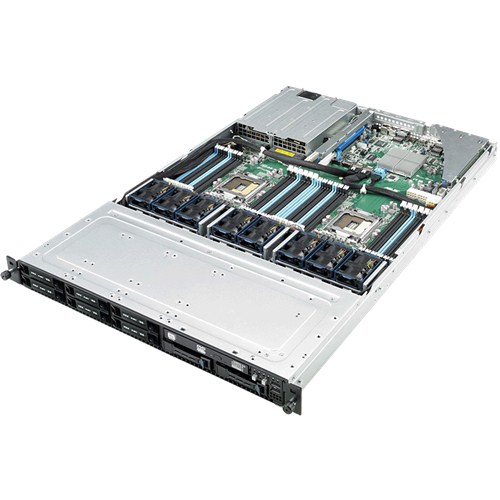

RS700-E7-SYNC2

製品種別 サーバ
CPU


筐体サイズ 1U
電源仕様
用途/特長
製品説明

製品仕様

Processor / System Bus 2 x Socket 2011
Intel® Xeon® processor E5-2600 product family (150W) *
Intel® Xeon® processor E5-2600 v2 product family (150W) *
QPI 6.4 / 7.2 / 8.0 GT/s
*Refer to www.asus.com for CPU Support list
*Please refer to overview for details
Core Logic Intel® C602-A PCH
Memory Total Slots : 24 (4-channel per CPU, 12 DIMM per CPU)
Capacity : Maximum up to 512GB RDIMM/Maximum up to 768GB LRDIMM
Memory Type :
DDR3 1866/1333/1066 LRDIMM *1
DDR3 1866/1600/1333/1066/800 RDIMM with ECC*1
DDR3 1866/1600/1333/1066 UDIMM *1
Memory Size :
32GB, 16GB, 8GB, 4GB, 2GB, 1GB RDIMM
8GB, 4GB, 2GB, 1GB UDIMM
32GB, 16GB, 8GB LRDIMM
Expansion Slots 2 x PCI-E x16 (Gen3 x16 Link) (FH/HL )
1 x PIKE Slot for Stroage Enhancement
Storage SATA Controller :
Intel® C602-A AHCI
4 x SATA2 3Gb/s ports
2 x SATA3 6Gb/s ports
Intel® Rapid Storage Technology(RST) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
SATA Controller :
Intel® C602-A SCU
4 x SATA2 3Gb/s ports
SAS Controller :
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2308 8-port SAS 6G RAID card (Optional)
HDD Bays 8 x 2.5" HDD Bays *2
Auxiliary Storage FDD/CD/DVD 1 x Slim-type Optical Drive Bay
Options: No Device / DVD-RW
Networking 1 x Quad Port Intel Ethernet Controller i350-AM4 + 1 x Mgmt LAN
Graphic Aspeed AST2300 with 16MB VRAM
On Board I/O 5 x RJ-45 ports (One for ASMB6-iKVM)
4 x USB 2.0 ports (Front x 2, Rear x 2)
1 x Internal A Type USB Port
1 x VGA port
1 x PS/2 keyboard port
1 x PS/2 mouse port
OS Support Windows® Server 2008 R2
Windows® Server 2008 Enterprise 32/64-bit
RedHat® Enterprise Linux AS5.6/6.0 32/64-bit
SuSE® Linux Enterprise Server 11.2 32/64-bit
VMWare ESX4.1/ESXi4.1

*(Subject to change without any notice)
Management Solution ASWM Enterprise
On-Board ASMB6-iKVM for KVM-over-IP
Regulatory Compliance BSMI, CCC, CE, C-Tick, FCC(Class A)
Dimensions 689.5mm x 444mm x 43mm
Form Factor 1U
Weight 18Kg
Power Supply 1+0 Redundant 800W 80PLUS Platinum Power Supply
Environment Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box 1 x Bag of Screws
2 x AC Power Cable
1 x RS700-E7 Support DVD
1 x RS700-E7 User's Guide
1 x ASWM ENTERPRISE DVD
1 x ASUS ASWM Enterprise User's Guide
1 x ASMB6-iKVM SDVD
1 x ASWM6-iKVM User Guide
Optional Items ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2008/IMR RAID card (90-S00CS0140T)
ASUS PIKE 2108-32PD H/W RAID card (90-S00CS0150T)
ASUS PIKE 2308 RAID card (90SKC000-M08AN0)
Note * >135W support under 25 °C environment
*1 DDR3 1866 can only be supported with Intel® Xeon® processor E5-2600 v2 product family, refer to HYPERLINK "http://www.asus.com/"www.asus.com for latest memory AVL update
*2 ASUS PIKE RAID card is required for the HDDs to be recognized for system boootup
For 8x SATA 2.5” HDD JBOD configuration , Please make sure the Mini-SAS cables are plugged into
ISATA1(AHCI) port (HDD5~HDD6 (6Gb/s);HDD7~HDD8 (3Gb/s) ) from PSAS2 port
ISAS1(SCU) port (HDD1~HDD4 (3Gb/s) ) from PSAS1 port
