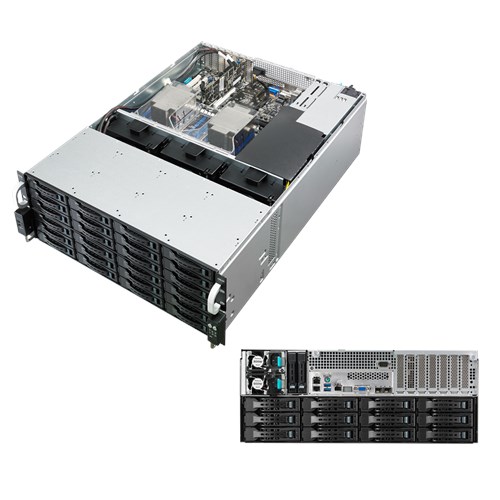

RS540-E8-RS36-ECP
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 4U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket R3 (LGA 2011-3) Intel® Xeon® processor E5-2600 v4 product family (145W) * Intel® Xeon® processor E5-2600 v3 product family(145W)* QPI 6.4 / 8.0 / 9.6 GT/s *Refer to www.asus.com for CPU Support list |
|---|---|
| Generation | E8 |
| Core Logic | Intel® C612 PCH |
| Memory | Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) per Node Capacity : Maximum up to 1024GB LRDIMM Memory Type : DDR4 2400 /2133 /1866*/1600/1333 RDIMM DDR4 2400 /2133 /1866*/1600/1333 LRDIMM Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM * Please refer to ASUS server AVL for the latest update |
| Expansion Slots | 3+1 Low-profile 1 x PCI-E x16 (Gen3x 8 link) 2 x PCI-E x8 (Gen3 x8 link) 1 x PCI-E x8 (Gen3 x8 link), OCP Mezzanine* * Support for MCB-10G-2S (Dual Port 10 Gigabit/s Ethernet card) (optional) |
| Storage | SATA Controller : Intel® C612 9 x SATA3 6Gb/s ports + 1 x M.2 connector Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card(Optional) ASUS PIKE II 3108 8-port SAS HW RAID card 12G SAS Support |
| HDD Bays | 36 x Hot-Swap 3.5”HDD Bays (BP w/Expander ) 2 x Hot-Swap 2.5” SSD Bays (Rear) |
| Networking | 2 x Intel® I210AT + 1 x Mgmt LAN |
| Graphic | Aspeed AST2400 with 32MB VRAM |
| Front I/O Ports | 2 x USB 2.0 ports |
| On Board I/O | 2 x RJ-45 ports 1 x RJ-45 Mgmt LAN port 2 x USB 3.0 ports 1 x Q-Code/Port 80 LED 1 x VGA port 1 x PS/2 KB/MS port 1 x External Serial Port |
| OS Support | Windows® Server 2012 R2 Windows® Server 2012 Windows® Server 2008 R2 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Ubuntu VMware Citrix XenServer *(Subject to change without any notice) |
| Management Solution | ASWM Enterprise On-Board ASMB8-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, C-Tick, FCC(Class A) |
| Dimensions | 615mm x 444mm x 176mm 24.21" x 17.48" x 6.92" |
| Form Factor | 4U |
| Weight | Net Weight: 25.915 Kg Gross Weight: 34.95 Kg |
| Power Supply | 1+1 Redundant 800W 80 PLUS Platinum Power Supply Rating: 100-127Vac/200-240Vac,10A/5A ,50/60Hz, Class I |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
パーツ仕様
| Chassis | ASUS R40D 4U Rackmount Chassis (13SV0006AM2001) | ||||
|---|---|---|---|---|---|
| MB | Z10PR-D16 Server board (60SB03V0-SB0A3J) | ||||
| HDD Backplane | 1 x BP12EX12G-35-R20F (60SC06P0-SC0A03) 1 x BP24EX12G-35-R40B (60SC06Y0-SC0A01) 1 x BP2LX-R12PD (60SC0440-SC0A02) |
||||
| Front Panel Board | 1 x Front I/O Board (FPB-R20F) (60SC0630-SC0A01) | ||||
| USB Board | 1 x Front USB Board (USB-R20A) (60SC00U0-SC0A01) | ||||
| Power Distribution Board | 1 x PDB-R20E (60SC07J0-SC0A01) 1 x PDB-R20E-C (60SC07R0-SC0A01) 1 x PSB-R20E (60SC07I0-SC0A01) |
||||
| CPU Heatsink/ Cooler | 2 x CPU Heatsink (13071-01790100) | ||||
| Power Supply Unit | 2 x POWER 800W 80+ PLATINUM (0A100-00080900) | ||||
| HDD Tray | 36 x R21A 3-5 HDD TRAY ASSY (13GS1I0AM061-1) 2 x R12A 2-5 HDD TRAY ASSY (13GS120AM021-1) |
||||
| HDD Cage | 1 x R9 D 25HDD CAGE ASSY (13SV0001AM0421) | ||||
| Fan | 3 x System Fans (120mm x 38mm) (13070-00560000) | ||||
| Air Duct/Mylar | 1 x R20 F Z10PR-D16 PLASTIC-DUCT (13SV0004P03011) | ||||
| Mounting Rails | 1 x Tool-less Rail Kit (13SV0006AM0921) | ||||
| Cable | 1 x MINI SAS TO 4 SATA L:400MM (14011-00050200) 1 x POWER CABLE 8P TO 4P,200MM (14017-00170000) 3 x INTERNAL SAS HD CABLE, L=85CM (14011-00480500) 1 x USB CABLE 2*4 TO 2*5,L=1280MM (14001-00300200) 1 x FPB CAB2*8/1*10+1*6+2*10 950MM (14001-00800500) 1 x POWER CABLE 24P TO 24P,200MM (14017-00050100) 2 x POWER CABLE 8P TO 8P,150MM (14017-00030200) 1 x POWER CABLE 8P TO 8P,600MM (14017-00030100) 3 x W.H CABLE 4P TO 4P, L:150MM (14G030011552) 3 x FAN CABLE 4P/M TO 4P/F, L100MM (14G000015410) 1 x PMBUS CABLE 5P TO 5P L:500MM (14G000611200) 1 x SMBUS CABLE 1*6 TO 1*6,L=350mm (14G030042900) 1 x LAN LED CBL 2*4P TO 1*5P L=900 (14001-00790000) 2 x POWER CABLE 8P TO 8P,480MM (14017-00030400) |
