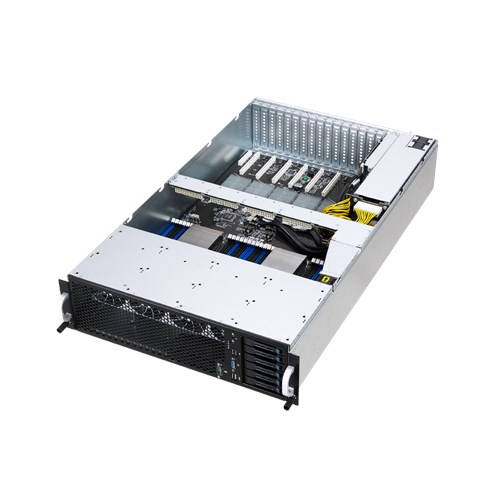

ESC8000 G3
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 3U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket R3 (LGA 2011-3) Intel® Xeon® processor E5-2600 v4 product family (145W) Intel® Xeon® processor E5-2600 v3 product family(145W) QPI 6.4 / 8.0 / 9.6 GT/s *Refer to support page for more information |
|---|---|
| Core Logic | Intel® C612 PCH |
| Memory | Total Slots : 24 (4-channel per CPU, 12 DIMM per CPU) Capacity : Maximum up to 1536GB LRDIMM Memory Type : DDR4 2400 /1866*/2133 /1600/1333 RDIMM*1 DDR4 2400 /1866*/2133 /1600/1333 LRDIMM*1 DDR4 2400 /1866*/2133 /1600/1333 NVDIMM*1 Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM * Refer to support page for more information |
| Expansion Slots | Total: 10 Full-length/Full-height 8 x PCI-E 3.0 x16 (x16 Link) + 1 x PCI-E 3.0 x16 (x8 Link) Half-lenth/Low-profile 1 x PCI-E 3.0 x8 (x8 Link) |
| Storage | SATA Controller : Intel® C612 6 x SATA3 6Gb/s ports 1 x M.2 connector (2280/2260/2242) Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card*2 ASUS PIKE II 3108 8-port SAS HW RAID card*2 |
| HDD Bays | 6 x Hot-swap 2.5" HDD Bays |
| Networking | 2 x Intel® I210AT + 1 x Mgmt LAN |
| InfiniBand | Optional kits: PEM-FDR PEB-10G/57840-2S PEB-10G/57811-1S |
| Graphic | Aspeed AST2400 with 32MB VRAM |
| Front I/O Ports | 1 x COM port 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x VGA port |
| Rear I/O Ports | 3 x RJ-45 ports (One for ASMB8-iKVM) |
| OS Support | Windows® Server 2016 Windows® Server 2012 R2 Windows® Server 2012 Windows® Server 2008 Enterprise R2 SP1 64-bit RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Ubuntu VMware Citrix XenServer *Subject to change without any notice |
| Management Solution | ASWM Enterprise Default 1 x ASMB8-iKVM for KVM-over-Internet |
| Regulatory Compliance | BSMI, CE, FCC(Class A) |
| Dimensions | 759mm x 447mm x 130.6mm (3U) |
| Form Factor | 4U |
| Weight | 29.2kg (exluding CPU/memory/HDD/add-on cards) |
| Power Supply | 2+1 Redundant 1600W 80PLUS Platinum Power Supply; 1000W: 100-127 Vac, 12.9 A, 47-63 Hz, Class I 1600W: 200-240 Vac, 9. 5A, 47-63 Hz, Class I |
| Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessory Box | 1 x MB Support DVD 1 X ASWM Enterprise DVD 1 x ASMB8 SDVD 1 x Bag of Screws 3 x AC Power Cable 16 x GPU air ducts (8 for Intel Xeon Phi; 8 for AMD/Nvidia) 8 x mylar for GPU air ducts for AMD GPU cards 16 x VGA power cable 8 x VGA power cable for Nvidia 300W and above cards |
| Optional Items | PEM-FDR PEB-10G/57840-2S PEB-10G/57811-1S PIKE II 3108 PIKE II 3008 |
| Note | *1: 2133MT/s@1DPC only *2: Optional and require extra mini SAS HD to mini SAS cable |
パーツ仕様
| MB | ASUS Z10PG-D24 Server Board | ||||
|---|---|---|---|---|---|
| HDD Backplane | 1 x SAS/SATA Backplane (BP6LX-R30A) (90SC04S0-M0XBN0) | ||||
| Front Panel Board | 1 x Front I/O Board (FPB-R30A) (90SC04T0-M0XBN0) | ||||
| Power Distribution Board | 1 x Redundant Power Supply Power Distribution Board (PDB-R30A) (90SC04N0-M0XBN0) 1 x Power Sharing Board for GPU cards(PSB-R30A) (90SC04V0-M0XBN0) |
||||
| Midplane/Connection Board/Convert Board | 1 x Rear I/O Board (CB-RIO-R30A) (90SC04U0-M0XBN0) | ||||
| CPU Heatsink/ Cooler | 2 x CPU Heatsink (13071-00091800) |
||||
| Power Supply Unit | 3 x 1600W Redundant Power Supply (0A100-00250000) | ||||
| HDD Tray | 6 x 2.5" HDD Tray (13GS120AM021-1) | ||||
| Fan | 8 x System Fans (80mm x 38mm) (13G074187000) 6 x CPU Fans (40mm x 28mm) (13070-00790000) |
||||
| Air Duct/Mylar | 2 x CPU Air Duct Mylar (13SV000EL11011) 1 x DIMM Fan duct (13SV000EL08011) (front side) GPU Fan duct for PSB: 1 x GPU Fan Duct Mylar-A (13SV000EL10011) 3 x GPU Fan Duct Mylar-B (13SV000EL09011) Main GPU fan duct (2U/3U): 1 x FAN GPU FAN DUCT A (13SV000EL07011) 1 x FAN GPU FAN DUCT B (13SV000EL06011) 3 x FAN GPU FAN DUCT C (13SV000EL05011) 8 x NVIDIA Tesla /AMD Firepro GPU Air Duct (13GS1U0AM021-2) 8 x Intel Xeon Phi series Co-processor Air Duct (13GS1U0AM050-1) 8 x AMD FAN DUCT MYLAR (13SV0005L12011) |
||||
| Mounting Rails | 1 x Friction rail kit (13SV0006AM0911) | ||||
| Cable | 1 x MINI SAS CABLE,L=780MM (14022-00030000) 2 x MINI SAS CABLE,L=600MM (14022-00020000) 1 x MINI SAS CABLE,L=340MM (14022-00010000) 1 x POWER CABLE 8P TO 8P,655MM (14017-00030000) 1 x SATA SGPIO+ TR+ SMBUS CABLE (14013-00010000) 1 x BP POWER CABLE 4P TO 4P,300MM (14017-00040000) 1 x FPB CAB2*8/1*10+1*6+2*10 610MM (14011-00120000) 1 x VGA CABLE 2*8 TO 2*8 L=580MM (14011-00110000) 16 x VGA PWR CABLE 6P TO 6+2P,L=220 (14017-00020100) 8 x K80 VGA PWR CABLE 8PTO6P,L=220 (14017-00070000) 3 x PDB PWR CABLE 24P TO 24P,170MM (14017-00050000) 1 x COM PORT CABLE, L=580MM (14015-00020000) 4 x FAN CABLE, L=100MM (14011-00100100) 2 x FAN CABLE,L=200MM (14011-00100200) 1 x LAN CABLE (SHILDING),L=360MM (14023-00010200) 1 x 12P SMBUS+12VSB_ATX+ PWROK (14011-00130100) |
