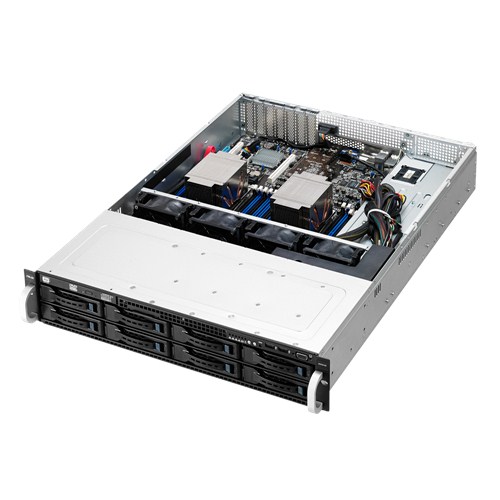

RS520-E8-RS8 V2
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 2U |
| 最大GPU数 | |
| 電源仕様 | |
| 用途/特長 | |
| 製品説明 |
製品仕様
| Processor / System Bus | 2 x Socket R3 (LGA 2011-3) Intel® Xeon® processor E5-2600 v4 product family (145W) * Intel® Xeon® processor E5-2600 v3 product family(145W)* QPI 6.4 / 8.0 / 9.6 GT/s *Refer to www.asus.com for CPU Support list |
|---|---|
| Generation | E8 |
| Core Logic | Intel® C612 PCH |
| Memory | Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 1024GB LRDIMM Memory Type : DDR4 2400 /2133 /1866*/1600/1333 RDIMM DDR4 2400 /2133 /1866*/1600/1333 LRDIMM Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM * Please refer to ASUS server AVL for the latest update |
| Expansion Slots | 3 + 1 Low-profile 1 x PCI-E Gen3 x16 (x8 link) 2 x PCI-E Gen3 x8 (x8 link) 1 x PCI-E x8 (Gen3 x8 link), OCP Mezzanine* * Support for MCB-10G-2S (Dual Port 10 Gigabit/s Ethernet card) (optional) |
| Storage | SATA Controller : Intel® C612 9 x SATA3 6Gb/s ports 1 x M.2 connector Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card(Optional) ASUS PIKE II 3108 8-port SAS HW RAID card(Optional) 12G SAS Support |
| HDD Bays | 8 x Hot-swap 3.5" Storage Bays |
| Auxiliary Storage FDD/CD/DVD | 1 x Slim-type Optical Drive Bay Options: No Device / DVD-RW |
| Networking | 2 x Intel® I210AT + 1 x Mgmt LAN |
| Graphic | Aspeed AST2400 with 32MB VRAM |
| Front I/O Ports | 2 x USB 2.0 ports 1 x VGA port |
| On Board I/O | 2 x RJ-45 ports 1 x RJ-45 Mgmt LAN port 2 x USB 3.0 ports 1 x VGA port 1 x PS/2 KB/MS port 1 x External Serial Port(Optional) 1 x Q-Code/Port 80 LED |
| OS Support | Windows® Server 2016 Windows® Server 2012 R2 Windows® Server 2012 Windows® Server 2008 R2 RedHat® Enterprise Linux SuSE® Linux Enterprise Server CentOS Ubuntu VMware Citrix XenServer *(Subject to change without any notice) |
| Management Solution | ASWM Enterprise On-Board ASMB8-iKVM for KVM-over-IP |
| Regulatory Compliance | BSMI, CE, C-Tick, FCC(Class A) |
| Dimensions | 615mm x 444mm x 88mm 24.21" x 17.48" x 3.46" |
| Form Factor | 2U |
| Weight | Net Weight: 14.80 Kg Gross Weight: 21.53 Kg |
| Power Supply | 1+1 Redundant 770W 80PLUS Platinum Power Supply Rating: 100-127Vac/200-240Vac,10A/5A ,50-60Hz, Class I |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
パーツ仕様
| Chassis | ASUS R20F 2U Rackmount Chassis | ||||
|---|---|---|---|---|---|
| MB | ASUS Z10PR-D16 Server board (EN-0208367)(60SB03V0-SB0A1D) | ||||
| HDD Backplane | 1 x SAS/SATA Backplane (BP8LX12G-35-R20E) (60SC06D0-SC0A01) |
||||
| Front Panel Board | 1 x Front I/O Board (FPB-R20D) (60SC03Z0-SC0B01) |
||||
| Power Distribution Board | 1 x Redundant Power Supply Power Distribution Board (PDB-R20A/E7) (60SC02B0-SC0B04) |
||||
| CPU Heatsink/ Cooler | 2 x CPU Heatsink (13071-00091600) | ||||
| Power Supply Unit | 1 x 770W Redundant Power Supply (0A100-00220100) |
||||
| HDD Tray | 8 x Hot-swap 3.5" HDD trays (13GS1I0AM061-1) |
||||
| Fan | 4 x System Fans (80mm x 38mm) (13G074154010) | ||||
| Air Duct/Mylar | 1 x Air Duct (13SV0004P03011) |
||||
| Optical Drive | 1 x Slim DVD-RW (Optional)(17601-00012500) 1 x R10E ODD BEZEL ASSY (Optional)(13GS1600P031-1) |
||||
| Mounting Rails | 1 x Tool-less rail kit (13SV0006AM0811) | ||||
| Cable | 1 x PMBUS CABLE 5P TO 5P L:500MM (14G000611200) 2 x POWER CABLE 8P TO 8P,420MM (14G000610120) 1 x POWER CABLE 24P TO 24P,460MM (14G000603750) 1 x MINI SATA 13P TO 7P+4P,390MM (14G000114512) 4 x W.H CABLE 4P TO 4P, L:150MM (14G030011552) 1 x FPB CAB2*8/1*10+1*6+2*10 750MM (14001-00800400) 1 x VGA CABLE 2*8 TO 2*8 L=700MM (14002-00210000) 1 x LAN LED CBL 2*4P TO 1*5P L=900MM (14001-00790000) 1 x USB3.0 180 TO USB2.0 L=650MM (14002-00340000) 1 x POWER CABLE 8P TO 8P & 4P,70MM (14001-00250300( |
