産業用PC

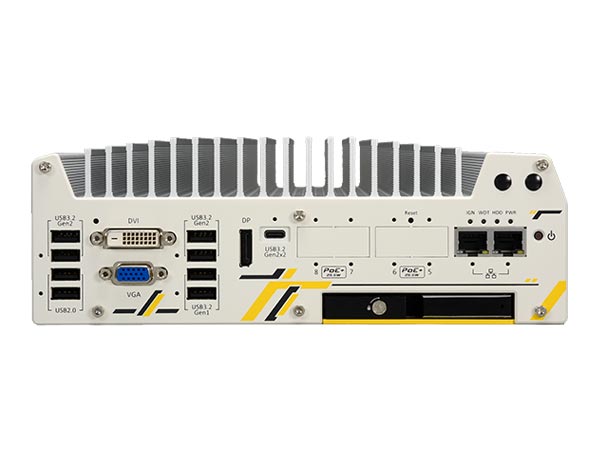

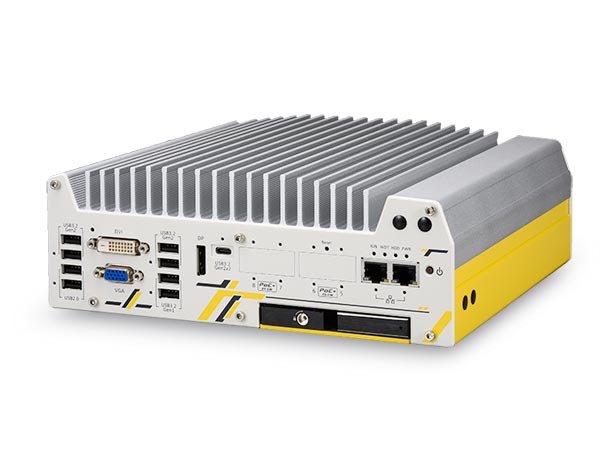

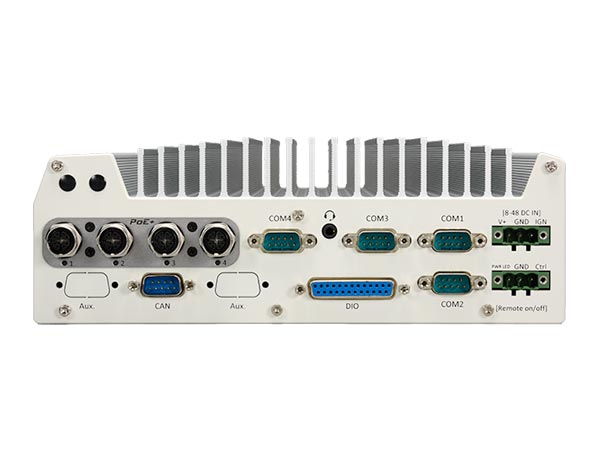

Nuvo-9100VTC
Intel® 第14世代/第13世代/第12世代 Core™ 搭載車載コンピュータ（M12×4、RJ45×4、RJ45 PoE+×8ポート）
BOX型 Core i9-14900Core i9-13900Core i9-12900Core i7-14700Core i7-13700Core i7-12700Core i5-14000Core i5-13000Core i5-12000Core i3-14000Core i3-13000Core i3-12000Pentium Gold G7400Celeron G6900 DC電源 (or ACアダプタ) 車載 ファンレス DC電源対応 DIO PoE
- Intel® 第14世代/第13世代/第12世代 Core™ 24コア/32スレッド 35W/65W CPUに対応
- M12またはRJ45コネクタ経由の802.3at PoE+ポート×4または×8
- USB 3.2 Gen2x2 Type-Cポート×1、USB 3.2/2.0 Type-Aポート×8
- 車載通信用オンボード絶縁CANバス
- 絶縁DI×4チャネル、絶縁DO×4チャネル
- M.2 Gen4 x4 NVMe SSDスロット
- 8V～48Vの広範囲DC入力、イグニッション電源制御機能内蔵
- 2つのSATAポート（ホットスワップ対応HDDトレイ1基付き）、RAID 0/1対応
- E-Mark/EN 45545認証取得、EN 50155 EMC準拠
製品仕様
| System Core | ||
|---|---|---|
| Processor | Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-14900/ i9-14900T – Intel® Core™ i7-14700/ i7-14700T – Intel® Core™ i5-14500/ i5-14400/ i5-14500T – Intel® Core™ i3-14100/ i3-14100T |
|
| Supporting Intel® 13th-Gen Core™ CPU(LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE – Intel® Core™ i7-13700E/ i7-13700TE – Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE – Intel® Core™ i3-13100E/ i3-13100TE |
Support Intel® 12th-Gen Core™ CPU(LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-12900E/ i9-12900TE – Intel® Core™ i7-12700E/ i7-12700TE – Intel® Core™ i5-12500E/ i5-12500TE – Intel® Core™ i3-12100E/ i3-12100TE – Intel® Pentium® G7400E/ G7400TE – Intel® Celeron® G6900E/ G6900TE |
|
| Chipset | Intel® Q670E platform controller hub | |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) | |
| Memory | Up to 128 GB DDR5 4800 SDRAM (two SODIMM slots) | |
| AMT | Supports Intel vPro/ AMT 16.0 | |
| TPM | Supports dTPM 2.0 | |
| I/O Interface | |
|---|---|
| Ethernet | 1x 2.5G Ethernet by I226-IT/ I225-IT and 1x Gigabit Ethernet by I219-LM with screw-lock |
| PoE+ | 4x IEEE 802.3at Gigabit PoE+ ports by Intel® I210 – M12 X-coded connector (Nuvo-9100VTC) – RJ45 connector (Nuvo-9104VTC) 4x IEEE 802.3at Gigabit PoE+ ports by Intel® I210 and 4x 2.5G PoE+ ports by I226-IT/ I225-IT – RJ45 connector (Nuvo-9108VTC) |
| USB 3.2 | 1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors 2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors |
| USB 2.0 | 2x USB 2.0 ports |
| CAN Bus | 1x isolated CAN 2.0 port |
| Video Port (Integrated Graphics) |
1x VGA, supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| Serial Port | 2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2) 2x RS-232 ports (COM3/COM4) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Storage Interface | |
|---|---|
| SATA HDD | 1x hot-swappable 2.5″ HDD tray (7mm HDD/ SSD) and 1x internal 2.5″ SATA ports |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| Expansion Bus | |
|---|---|
| Mini PCI Express | 1x full-size mini-PCIe socket 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets |
| M.2 | 1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module 1x M.2 2242/3052 B key socket with SIM slot for M.2 4G module |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8V to 48V DC input (IGN/ GND/ V+) |
| Ignition Control | Built-in ignition power control |
| Remote Ctrl. & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical | |
|---|---|
| Dimension | 240 mm (W) x 225 mm (D) x 84 mm (H) |
| Weight | 3.7kg |
| Mounting | Wall-mount with damping bracket |
| Environmental | |
|---|---|
| Operating Temperature | With 35W CPU -40°C ~ 70°C[1] (with 1 memory module installed) -40°C ~ 60°C[2][3] (with 2 memory modules installed)With 65W CPU -40°C ~ 50°C[2][3] (configured as 65W TDP with 2-slots memory) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted |
| Shock | EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted |
| EMC | E-Mark, EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035 |
| EN 45545 | EN 45545-2 |
[1] Due to high heat generation of DDR5 memory, please configure the CPU to 35W mode and utilize only one memory slot, while operating at a temperature of 70°C.
[2] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
[3] For CPU operating at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to allow higher operating temperature.
