産業用PC

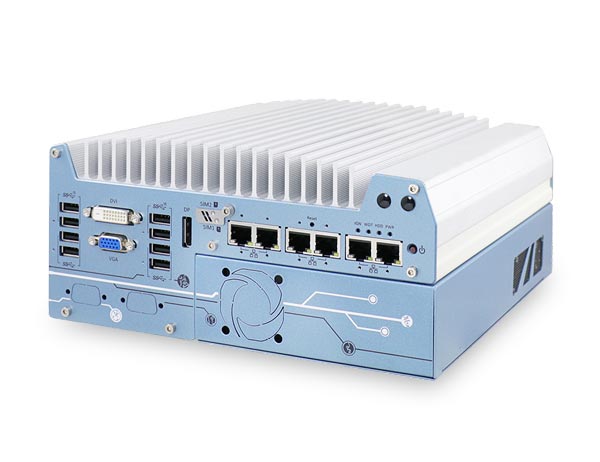

Nuvo-7000E/P/DE Series
Intel® 第9世代/第8世代 Core™ i7/i5/i3 搭載の堅牢型ファンレスコンピュータ（6つのGbEポート、特許取得済みのカセット式モジュール、MezIO™インターフェース搭載）
BOX型 Core i7-9700Core i7-8700Core i5-9000Core i5-8000Core i3-9000Core i3-8000Pentium Gold G5600, G5500, G5400Celeron G4900 DC電源 (or ACアダプタ) ファクトリーオートメーション 監視用 マシンビジョン 車載 ファンレス PoE ラックマウント可能
- Intel® 第9世代/第8世代 Core™ i 35W/65W LGA1151 CPU
- PCI/PCIe拡張カード用特許取得済みカセット
- 機能拡張が容易なMezIO™インターフェース
- 堅牢設計、-25°C～70°Cの広温度範囲でファンレス動作
- 最大6つのGigEポート、9.5 KBジャンボフレーム対応
- NVMe SSDまたはIntel® Optane™メモリに対応したM.2 2280 Mキーソケット（Gen3 x4）
- USB 3.1 Gen2ポート×4、USB 3.1 Gen1ポート×4
- VGA/DVI/DPによる3画面独立出力、4K2K解像度対応
製品仕様
| System Core | |
|---|---|
| Processor | Supporting Intel® 9th/ 8th-Gen CPU (LGA1151 socket, 65W/ 35W TDP) – Intel® Core™ i7-8700/ i7-8700T/ i7-9700E/ i7-9700TE – Intel® Core™ i5-8500/ i5-8500T/ i5-9500E/ i5-9500TE – Intel® Core™ i3-8100/ i3-8100T/ i3-9100E/ i3-9100TE – Intel® Pentium® G5400/ G5400T – Intel® Celeron® G4900/ G4900T |
| Chipset | Intel® Q370 Platform Controller Hub |
| Graphics | Integrated Intel® UHD Graphics 630 |
| Memory | Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots) |
| AMT | Supports AMT 12.0 |
| TPM | Supports TPM 2.0 |
| I/O Interface | |
|---|---|

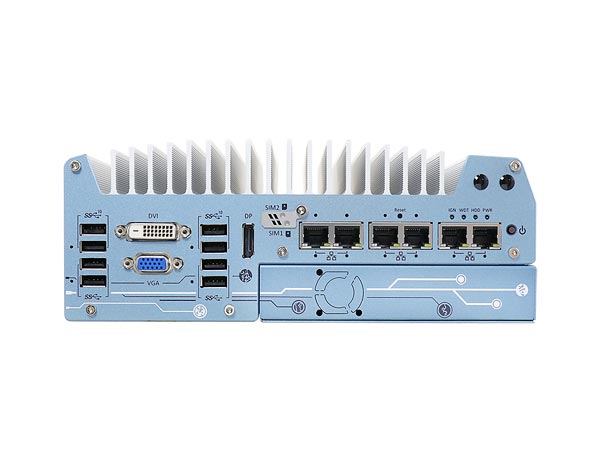

| Ethernet Port | 2x Gigabit Ethernet ports by I219 and I210 (Nuvo-7002E/ P/ DE) 6x Gigabit Ethernet ports by I219 and 5x I210 (Nuvo-7006E/ P/ DE) |
| POE+ | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget |
| USB | 4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |

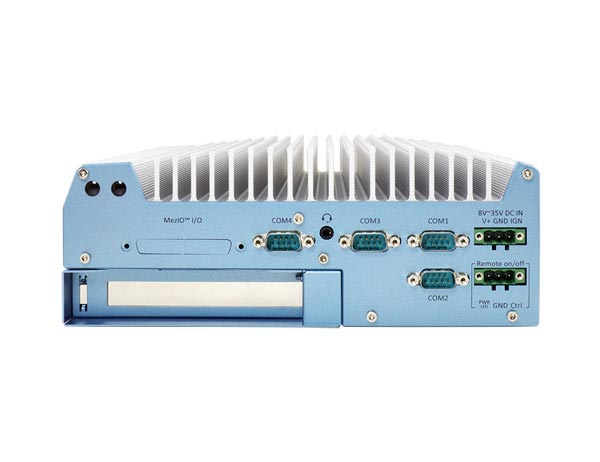

| Serial Port | 2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Internal Expansion Bus | |
|---|---|

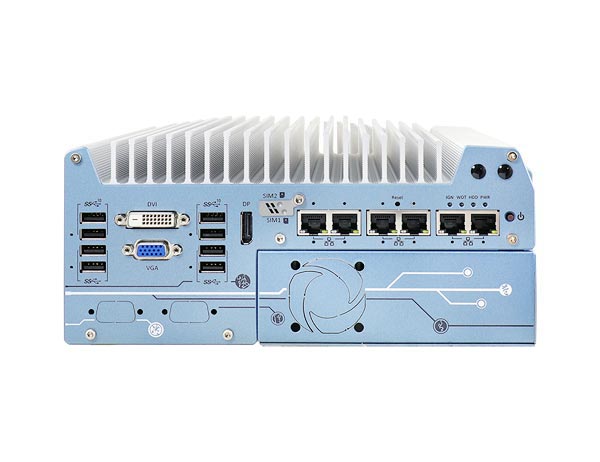

| PCI/PCI Express | 1x PCIe x16 slot @ Gen3, 8-lanes PCIe signals in Cassette (Nuvo-7000E) 1x PCI slot in Cassette (Nuvo-7000P) 2x PCIe x16 slots @ Gen3, 8-lanes PCIe signals in Cassette (Nuvo-7000DE) |
| Mini PCI-E | 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA) |
| M.2 | 1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module |
| Expandable I/O | 1x MezIO™ expansion port for Neousys MezIO™ modules |
| Storage interface | |
|---|---|
| SATA HDD | 2x internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1 |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3/ x4) for NVMe SSD or Intel® Optane™ memory installation (supports SATA signal) |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input |
| Remote Ctrl. & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical | |
|---|---|
| Dimension | 240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-7000E/ P series) 240 mm (W) x 225 mm (D) x 110.5 mm (H) (Nuvo-7000DE series) |
| Weight | 3.58 kg (Nuvo-7000E/P series) 3.7 kg (Nuvo-7000DE series) |
| Mounting | Wall-mounting (standard) or DIN-Rail mounting (optional) |
| Environmental | |
|---|---|
| Operating temperature | with 35W CPU -25°C ~ 70°C **with 65W CPU -25°C ~ 70°C */** (configured as 35W TDP) -25°C ~ 50°C */** (configured as 65W TDP) |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55024 |
| Safety | UL62368-1, IEC62368-1 |
* For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**For sub-zero operating temperature, a wide temperature range HDD or Solid State Disk (SSD) is required.
