産業用PC

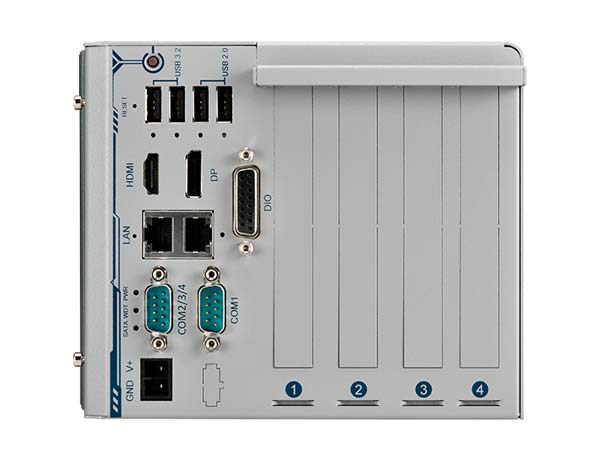

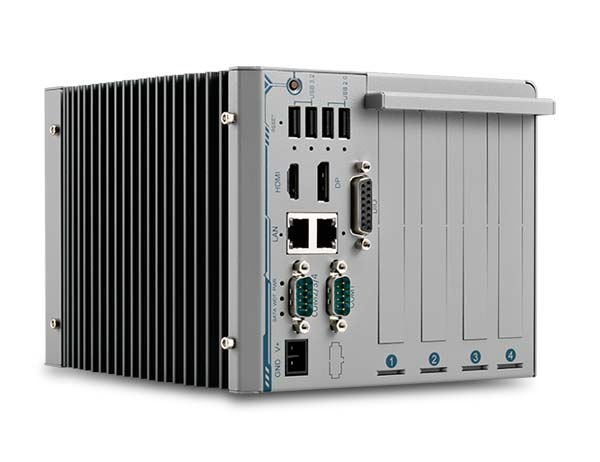

Nuvo-2822
Intel® Alder Lake N 搭載コンパクト拡張ボックスPC（PCIeスロット×2、PCIスロット×2）
BOX型 その他 DC電源 (or ACアダプタ) ファクトリーオートメーション 車載 DC電源対応 DIO PCIスロット
- Intel® Alder Lake N97 プロセッサ（12W、E-Core 4基搭載）
- PCIeスロット×2、PCIスロット×2
- GbEポート×2、USB 3.2ポート×2、USB 2.0ポート×2
- ストレージ用M.2 2280スロット×1、RS232/422/485ポート×1、RS232ポート×3
- DP++×1、HDMI 1.4b×1
- 4チャンネル絶縁DI + 4チャンネル絶縁DO
- 12～24V DC入力、シャットダウン状態時の超低消費電力
製品仕様
| System Core | |
|---|---|
| Processor | Intel® Alder Lake N97 processor (4C/4T, 2.0 /3.6 GHz, 12W TDP) |
| Graphics | Integrated Intel® UHD Graphics with 24EUs |
| Memory | Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket) |
| TPM | Supports dTPM 2.0 |
| I/O Interface | |
| Ethernet Port | 2x Gb Ethernet by Intel I210-IT (1x with WoL) |
| USB3.2 | 2x USB 3.2 Gen2 ports with screw-lock |
| USB2.0 | 2x USB 2.0 ports with screw-lock |
| Video Port | 1x DP++, Supporting 4096 x 2160 resolution 1x HDMI1.4b, Supporting 3840 x 2160 30Hz |
| Serial Port | 1x Software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Storage Interface | |
| M.2 SATA | 1x M.2 2280 SATA interface |
| Internal I/O Interface | |
| PCI Express | 1x PCIe x4 slot @ Gen3, 4-lanes 1x PCIe x4 slot @ Gen3, 1-lanes |
| PCI | 2x 33MHz/ 32-bit 5V PCI slots |
| Power Supply | |
|---|---|
| DC Input | 1x 2-pin pluggable terminal block for 12 to 24V DC input |
| Remote Ctrl. & LED Output | 1x 10-pin (2×5) wafer connector for remote on/off control and status LED output |
| Mechanical | |
| Dimension | 164.6mm (W) x 214.6mm (D) x 135.6mm (H) |
| Weight | 2.3 kg |
| Mounting | Wall-mount (Optional) |
| Fan | Optional 80mm x 80mm fan for system heat dissipation |
| Environmental | |
| Operating temperature | With FAN Kit -10°C ~ 70°C [1]/[2] Without FAN Kit -10°C ~ 60°C [1] |
| Storage temperature | -40°C ~85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
[1] For sub-zero and over 60°C operating temperature, a wide temperature Solid State Disk (SSD) is required.
[2] The optional fan kit is recommended for operating at ambient temperatures higher than 60°C.
