産業用PC
Nuvo-2615RL Series
EN50155 および EN45545 準拠、Intel® Elkhart Lake Atom® x6425E 搭載鉄道用コンピュータ（110 VDC 入力および 4 ポート M12 PoE+ 対応）
BOX型 Atom x6000E DC電源 (or ACアダプタ) 車載 ファンレス DC電源対応 DIO PoE
- EN 50155の必須試験およびEN 45545-2に準拠
- 堅牢設計：-40°C～70°Cでのファンレス動作、EN 50155 Class OT4に準拠
- 43V～160Vの広範囲DC入力、1500Vdc絶縁
- Intel® Elkhart Lake Atom® x6425E クアッドコア 2.0GHz/3.0GHz 12Wプロセッサ

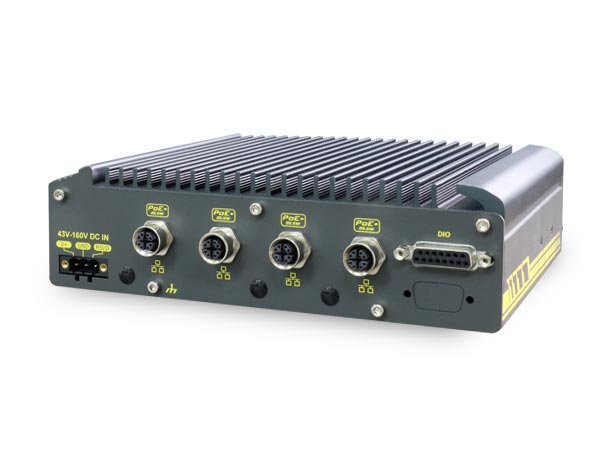

- M12クロスコードコネクタ経由のPoE+対応GbEポート×4
- 30秒以上の停電に備えた内蔵SuperCAP UPS（Nuvo-2615RLのみ）
- 前面アクセス可能な2.5インチ15mm HDDトレイ×1およびM.2 2280 SATA SSD×1
- フルサイズmini-PCIeソケット×2およびM.2 3042/3052 B Key×1
製品仕様
| System Core | |
|---|---|
| Processor | Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/3.0GHz 12W processor |
| Graphics | Integrated Intel® UHD Graphics |
| Memory | Up to 32 GB DDR4-3200 SDRAM by one SODIMM socket |
| TPM | Supports fTPM 2.0 |
| Panel I/O Interface | |
|---|---|
| Ethernet Port | 4x Gigabit Ethernet ports via M12 x-coded connectors by Intel® I210 |
| PoE Capability | In compliant with IEEE 802.3at PoE+ PSE, maximum 25.5W output on single PoE+ port. Total PoE+ power budget: 50W |
| Video Port | VGA and DVI dual display outputs via DVI-I connector |
| USB 3.1 | 1x USB 3.1 gen1 ports with screw-lock |
| USB 2.0 | 2x USB 2.0 port with screw-lock |
| Serial Port | 1x isolated RS-485 port with 15 kV ESD protection (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 (COM2) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Expansion Bus | |
|---|---|
| Mini-PCIe | 1x full-size mini PCI Express socket with PCIe and USB 2.0 signal 1x full-size mini PCI Express socket with USB 2.0 signal |
| M.2 B key | 1x M.2 3042/3052 B key (USB 3.1 + USB 2.0) for 4G/5G module with dual internal micro SIM socket |
| Storage Interface | |
|---|---|
| M.2 SATA | 1x M.2 2280 M key (SATA interface only) socket for SATA SSD installation |
| SATA HDD | 1x front-accessible HDD tray for 2.5″ HDD/ SSD installation (up to 15mm height) |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for isolated 43V to 160V DC input |
| Power Backup | |
|---|---|
| Capacity | 2500 watt-second (Nuvo-2615RL Only) |
| Mechanical | |
|---|---|
| Dimension | 205 mm (W) x 155 mm (D) x 58 mm (H) (Nuvo-2610RL) 205 mm (W) x 156 mm (D) x 86 mm (H) (Nuvo-2615RL) |
| Weight | 2.1kg (Nuvo-2610RL) 2.7kg (Nuvo-2615RL) |
| Mounting | Damping bracket (default) Wall-mount (optional) |
| Environmental | |
|---|---|
| Operating temperature | -40°C to 70°C*, compliant with EN50155 Class OT4 |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10%~90%, non-condensing |
| Vibration | IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) |
| Shock | IEC61373:2010, Category 1, Class B Body Mounted (part of EN 50155) |
| EMC | EN 50155:2017, Clause 13.4.8 CE/FCC Class A, according to EN 55032 & EN 55035 |
| EN50155 | All mandatory sections of EN 50155:2017 Nuvo-2610RL: EN50155 Class S1, EN50155 C1 Nuvo-2615RL: EN50155 Class S3, EN50155 C2 |
| EN45545 | EN 45545-2 (Fire protection on railway vehicles) |
* For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
