産業用PC

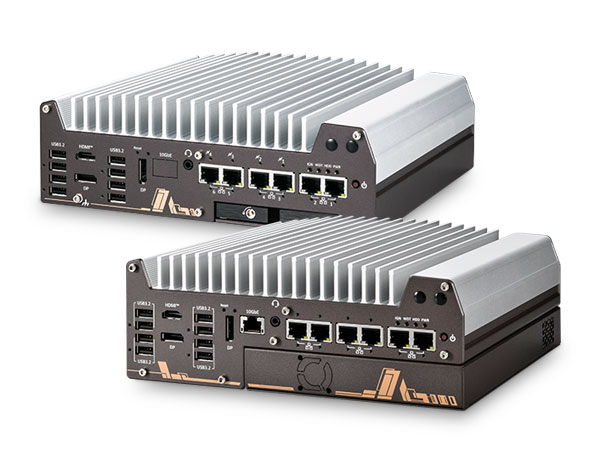

Nuvo-11000
Intel® Core™ Ultra 200Sシリーズファンレス組込みコンピュータ、2.5GbE/ GbE、USB 3.2、8チャンネルDIO、10GbEと拡張カセット& MezIO®インターフェース（オプション）搭載
BOX型 Core Ultra 5 200Core Ultra 7 200Core Ultra 9 200 DC電源 (or ACアダプタ) ファクトリーオートメーション 監視用 マシンビジョン 車載 ファンレス DIO PoE
- Intel® Core™ Ultra 200Sシリーズ24C/ 24T 35W/ 65W LGA1851 CPUをサポート
- 堅牢な-25°C～70°Cのファンレス動作
- 最大2.5GbEポートx5とGigEポートx1、オプションでPoE+、9.5 KBジャンボフレームをサポート
- 最大USB 3.2 Gen2ポート x8
- 4チャンネル絶縁DI + 4チャンネル絶縁DO
- オプションで10GBase-Tイーサネット x1
- PCIeとアドオンカードを格納する拡張カセット
- MezIO®インターフェースで手軽に機能拡張
製品仕様
| System Core | |||
|---|---|---|---|
| Processor | Supports Intel® Core™ Ultra 200S series CPU (LGA 1851 socket), 35W and 65W TDP – Intel® Core™ Ultra 9 285/285T – Intel® Core™ Ultra 7 265/265T – Intel® Core™ Ultra 5 245/245T |
||
| Chipset | Intel® Q870 Platform Controller Hub (Nuvo-11006) Intel® H810 Platform Controller Hub (Nuvo-11002) |
||
| Graphics | Integrated Intel Xe LPG Graphics | ||
| AI Engine | Integrated neural processing unit | ||
| Memory | Up to 128GB non-ECC DDR5 6400 SDRAM (Dual SODIMM slots) | ||
| AMT | Supports Intel vPro/ AMT 16.0 (Nuvo-11006 only) | ||
| TPM | Supports dTPM 2.0 | ||
| I/O Interface | |||
| Ethernet Port | 1x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM (Nuvo-11002E/ LP) with screw-lock 5x 2.5G Ethernet by I226-IT and 1x Gigabit Ethernet by I219-LM (Nuvo-11006E/ LP) with screw-lock 1x optional 10GBASE-T Ethernet (Nuvo-11006E/ LP) |
||
| PoE+ | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget | ||
| USB | 8x USB 3.2 Gen2 ports (Nuvo-11006E/ LP) 2x USB 3.2 Gen2, 2x USB3.2 Gen1 and 4x USB2.0 ports (Nuvo-11002E/ LP) |
||
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO | ||
| Video Port | 1x HDMI™, supporting 3840 x 2160 resolution 2x DisplayPort, supporting 3840 x 2160 resolution |
||
| Serial Port | 2x software-programmable RS-232/ 422/ 485 ports (COM1/ 2) 2x 3-wire RS-232 ports (COM3/ 4) |
||
| Audio | 1x 3.5 mm jack for mic-in and speaker-out | ||
| Storage Interface | |||
| SATA HDD | 2x internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1 (Nuvo-11000E) 1x hot-swappable 2.5″ HDD tray (7mm HDD/ SSD) and 1x internal 2.5″ SATA port, supporting RAID 0/ 1 (Nuvo-11000LP) |
||
| M.2 NVMe | 1x M.2 2280 M key NVMe socket (PCIe Gen5x4) for NVMe SSD (Nuvo-11006E/ LP) |
||
| Internal Expansion Bus | |||
| PCI Express | 1x PCIe x16 slot@Gen4, 16-lanes PCIe signals in Cassette (Nuvo-11002E/ 11006E) | ||
| Mini PCI Express | 2x full-size mini PCI Express socket | ||
| Expandable I/O | 1x MezIO® expansion port for Neousys MezIO® modules | ||
| USB2.0 | 1x USB 2.0 port with Type-A connector (internal, Nuvo-11006E/ LP) | ||
| Power Supply | |||
| DC Input | 1x 3-pin pluggable terminal block for 8V to 48VDC DC input with optional ignition power control | ||
| Remote Ctrl. & LED Output | 1x 10-pin (2×5) wafer connector for remote on/off control and status LED output | ||
| Mechanical | |||
| Dimension | 240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-11000E series) 240 mm (W) x 225 mm (D) x 79 mm (H) (Nuvo-11000LP series) |
||
| Weight | 3.58 kg (Nuvo-11000E Series) 3.36 kg (Nuvo-11000LP series) |
||
| Mounting | Wall-mount (standard) or DIN-rail mount (optional)) | ||
| Environmental | |||
| Operating Temperature | With 35W CPU – 25°C to 70°C* With 65W CPU – 25°C to 70°C* (configured as 35W TDP) – 25°C to 50°C* (configured as 65W TDP) |
||
| Storage Temperature | -40°C ~ 85°C | ||
| Humidity | 10%~90% , non-condensing | ||
| Vibration | MIL-STD-810H, Method 514.8, Category 4 | ||
| Shock | MIL-STD-810H, Method 516.8, Procedure I | ||
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 | ||
* 動作温度が氷点下または60°Cを超える場合は、広温度範囲対応のHDD/SSD/NVMeが必要です。
** 10G LANの場合、周囲温度60°Cまで動作可能です。
