産業用PC

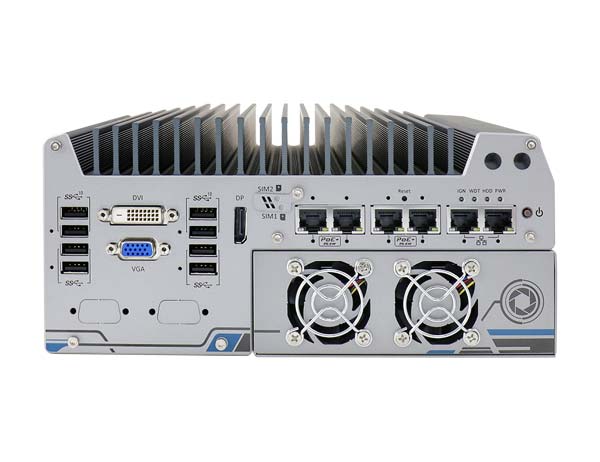

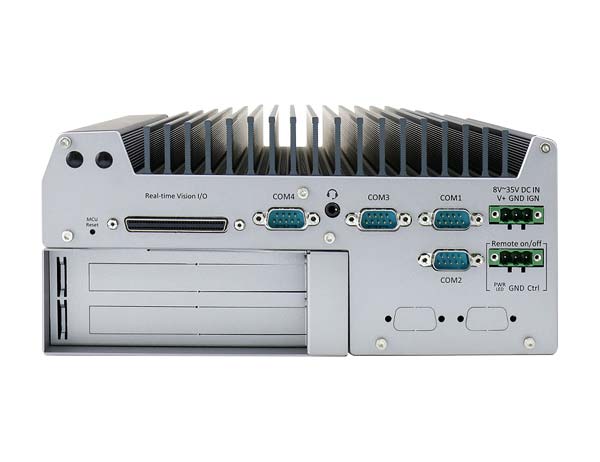

Nuvis-7306RT
Intel® 第9世代/第8世代 Core™ i 搭載のマシンビジョン用コンピュータ。ビジョン専用I/O、リアルタイムコントローラ、GPUコンピューティングを搭載
BOX型 Core i7-9700Core i7-8700Core i5-9000Core i5-8000 DC電源 (or ACアダプタ) マシンビジョン 高温・低温対応 DC電源対応 PoE
- Intel® 第9世代/第8世代 Core™ i7/i5 LGA1151ソケット型CPU
- ビジョン専用I/Oを内蔵
- 4チャンネルCC/CV照明コントローラ
- 4チャンネルカメラトリガー出力
- 1チャンネルクワドラチュアエンコーダ入力
- 8チャンネル絶縁型DIおよび8チャンネル絶縁型DO
- DTIO V2およびNuMCUによる、特許取得済みのMCUベースのリアルタイムI/O制御
- 内蔵カメラインターフェース
- ネジロック式4チャンネルIEEE 802.3atギガビットPoE+ポート
- ネジロック式8チャンネルUSB 3.1ポート
- NVIDIA 120W GPUおよび/または画像キャプチャカード用x16 PCIeスロット×2
製品仕様
| System Core | |
|---|---|
| Processor | Supporting Intel® 9th/ 8th-Gen Coffee Lake CPU (LGA1151 socket, 65W/ 35W TDP) – Intel® Core™ i7-9700E/ i7-9700TE/ i7-8700/ i7-8700T – Intel® Core™ i5-9500E/ i5-9500TE/ i5-8500/ i5-8500T |
| Chipset | Intel® Q370 platform controller hub |
| Graphics | Integrated Intel® UHD graphics 630 |
| Memory | Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots) |
| AMT | Supports AMT 12.0 |
| TPM | Supports TPM 2.0 |
| Vision-Specific I/O Interface | |
| LED Lighting Controller | 4-CH LED lighting controller output, supporting – Constant current mode (up to 2A per channel, 100 kHz dimming control) – Constant voltage mode (24 VDC, 100 kHz dimming control) |
| Camera Trigger | 4-CH camera trigger output (Isolated 12 VDC output) |
| Encoder Input | 1-CH quadrature encoder input (A/B/Z) |
| Isolated Digital Output | 4-CH isolated high-speed digital output (< 2 us transient time, for strobe/PWM) 4-CH isolated high-current digital output (up to 500 mA rated current for actuator) |
| Isolated Digital Input | 8-CH isolated high-speed digital input (< 2 us transient time) |
| Real-time I/O Control | Patented MCU-based real-time I/O control with DTIO V2 or NuMCU firmware |
| I/O Interface | |
| Ethernet port | 6x Gigabit Ethernet ports by I219 and I210 |
| PoE+ | 4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 with RJ45 connector |
| USB | 4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports 1x USB 2.0 port (internal use) |
| Video Port | 1x VGA , supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| Serial Port | 2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Storage Interface | |
|---|---|
| SATA HDD/ SSD | 2x internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1 |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| Expansion Bus | |
| PCI Express | 2x PCIe x16 slot @ Gen3, 8-lane PCIe signals in Cassette, supporting – 120W NVIDIA® GPU card – COTS CameraLink and CoaXPress camera interface card |
| Mini PCI-E | 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA) |
| M.2 | 1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module |
| Power Supply | |
| DC Input | 1x 3-pin pluggable terminal block for 8~35V DC input |
| Remote Ctrl. & Status Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical | |
| Dimension | 240 mm (W) x 225 mm (D) x 111 mm (H) |
| Weight | 3.7 kg |
| Mounting | Wall-mount |
| Environmental | |
| Operating Temperature | with 35W CPU and NVIDIA® 120W GPU -25°C ~ 60°C ** with 65W CPU and NVIDIA® 120W GPU -25°C ~ 60°C */ ** (configured as 35W TDP mode) -25°C ~ 50°C */ ** (configured as 65W TDP mode) |
| Storage Temperature | -40°C ~85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55024 |
* For i7-9700E and i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
** For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
