産業用PC
NRU-170-PPC
IP66防水対応 10.1インチ AIパネルPC（NVIDIA® Jetson Orin™ NX/Nano搭載、GMSL2ポート×6またはPoE+対応GbEポート×4）
BOX型 Jetson Orin NXJetson Orin Nano DC電源 (or ACアダプタ) GPUコンピューティング ファンレス DC電源対応 DIO PoE 防水 防塵
- NVIDIA® Jetson Orin™ NX または Orin™ Nano SoM（JetPack 同梱）を搭載
- IP66 準拠の防水・防塵仕様
- 解像度 1920 x 1200、輝度 1000 cd/m²、高コントラスト比 1000:1 の 10.1 インチタッチスクリーン
- -25°C～60°Cでのファンレス動作（MAXN TDPモード時、60°Cでもスロットリングなし）

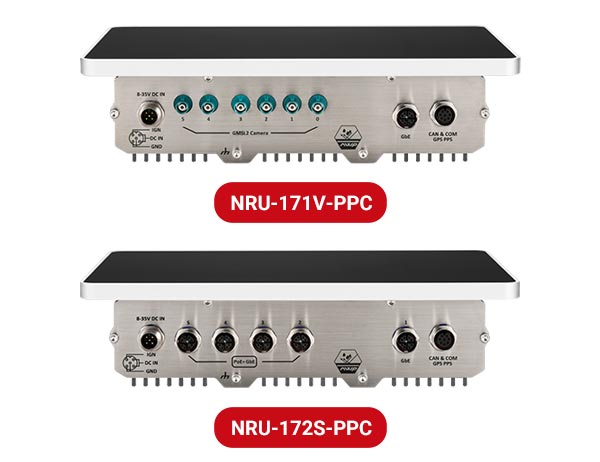

- FAKRA Zコネクタ経由のGMSL2自動車用カメラ×6台（NRU-171V-PPC）
- M12 Xコードコネクタ経由のPoE+ GbE×4ポート（NRU-172S-PPC）
- M12 Aコードコネクタ経由でCAN FD×1、RS232×1
- イグニッション電源制御内蔵の8V～35V広範囲DC入力
- プリビルドドライバ対応のGMSL2カメラ
製品仕様
| System Core | ||
|---|---|---|
| Processor | NVIDIA® Jetson Orin™ NX system-onmodule (SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU | NVIDIA® Jetson Orin™ Nano systemon-module (SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU |
| Memory | 16GB/ 8GB LPDDR5 @ 3200 MHz on SOM | 8GB/ 4GB LPDDR5 @ 2133 MHz on SOM |
| eMMC | N/A | |
| Panel | ||
| Touch Screen | 10.1″ touch screen with 1920 x 1200 resolution, 1000 cd/m2 brightness, and 1000:1 high contrast ratio. (Single-finger touch capability when screen is wet) | |
| Panel I/O Interface | ||
| GMSL2 | NRU-171V-PPC | |
| 6x waterproof GMSL2 FAKRA Z connectors, supporting multiple configurations: Configuration A. 6x AC-IMX390 (2MP@30FPS) Configuration B. 6x AC-ISX031 (3MP@30FPS) Configuration C. 4x AC-IMX490 (5MP@30FPS) |
||
| Ethernet Port | NRU-171V-PPC | |
| 1x Gigabit Ethernet port via M12 X-coded 8-pin connector | ||
| NRU-172S-PPC | ||
| Port 0: 1x Gigabit Ethernet port via M12 X-coded 8-pin connector Port 1 to Port 4: 4x GbE ports by Intel® I350-AM4 via M12 X-coded 8-pin connector |
||
| PoE+ | NRU-172S-PPC | |
| IEEE 802.3at PoE+ PSE for Port 1 to Port 4 with 50W total power budget | ||
| USB | 2x USB 2.0 ports via M12 A-coded 8-pin connector 1x USB Type C port (for system flashing and OTG, under service door) |
|
| Serial Port | 1x RS-232 port via M12 A-coded 8-pin connector | |
| CAN bus | 1x CAN FD port via M12 A-coded 8-pin connector | |
| Isolated DIO | 1x isolated GPS PPS input via M12 A-coded 8-pin connector | |
| Internal I/O Interface | |
|---|---|
| Mini PCI Express | 1x full-size mini PCI Express socket (PCIe + USB 2.0) |
| M.2 | 1x M.2 3042/3052 B key (USB 3.2 Gen 1 + USB 2.0) for LTE/5G module with dual micro SIM support |
| Storage | |
| M.2 NVMe | 1x M.2 2242 M key socket (PCIe Gen 3×1) for NVMe SSD |
| Power Supply | |
| DC Input | 8V to 35V DC input and ignition power control via M12 A-coded, 5-pin connector (IGN/ GND/ V+) [1] |
| Mechanical | |
| Dimension | 257 mm (W) x 65 mm (D) x 176 mm (H) |
| Weight | 3.8 kg |
| Mounting | VESA 75 mount (standard) |
| Environmental | |
| Operating Temperature | -25°C to 60°C with passive cooling (MAXN TDP mode)[2] |
| With full CPU+GPU stressing: NRU-170-PPC non-throttling at 60°C with 25W TDP mode (Orin NX MAXN) |
|
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/ FCC Class A, according to EN 55032 & EN 55035 EN 50121-3 (EN 50155:2017, Clause 13.4.8) (NRU-172S-PPC only) |
[1]The required DC input range is 8V to 35V when the system load is under 60W. The required DC input range is 12V to 35V when the system load is between 60W to 96W. The required DC input range is 20V to 35V when the system load is between 96W to 160W.
[2] For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
