産業用PC
NRU-160-AWP
IP66定格防水NVIDIA® Jetson Orin™ NX/Nano AIコンピュータ、GMSL2 x6またはPoE+ GbEポート x4
BOX型 Jetson Orin NXJetson Orin Nano DC電源 (or ACアダプタ) GPUコンピューティング ファクトリーオートメーション 監視用 マシンビジョン 車載 ファンレス DC電源対応 DIO PoE 防水 防塵
- NVIDIA® Jetson NX Orin™ Nano SoMにJetPack をバンドルして駆動
- IP66定格の防水・防塵性
- 堅牢な-25°C～70°Cのファンレス動作（20W TDPモードで、70°Cでもスロットリングなし）

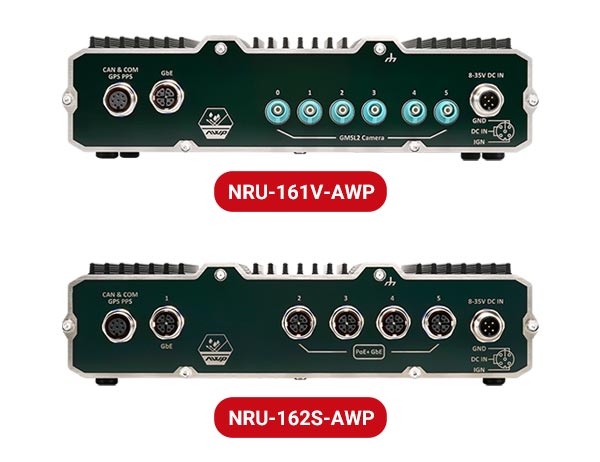

- FAKRA Zコネクタ経由でGMSL2車載カメラ x6をサポート（NRU-161V-AWP）
- M12 X-codedコネクタ経由でPoE+GbEポート x4(NRU-162S-AWP)
- M12 A-codedコネクタ経由でCAN FD x1 と RS232 x1
- 225 x 136 x 55 mmの薄型設計
- プリビルド済みドライバー対応のGMSL2カメラ
製品仕様
| System Core | ||
|---|---|---|
| Processor | NVIDIA® Jetson Orin™ NX system-onmodule (SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU | NVIDIA® Jetson Orin™ Nano systemon-module (SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU |
| Memory | 16GB/ 8GB LPDDR5 @ 3200 MHz on SOM | 8GB/ 4GB LPDDR5 @ 2133 MHz on SOM |
| Panel I/O Interface | ||
| GMSL2 | NRU-161V-AWP | |
| 6x waterproof GMSL2 FAKRA Z connectors, supporting multiple configurations: Configuration A. 6x AC-IMX390 (2MP@30FPS) Configuration B. 6x AC-ISX031 (3MP@30FPS) Configuration C. 4x AC-IMX490 (5MP@30FPS) |
||
| Ethernet Port | NRU-161V-AWP | |
| 1x Gigabit Ethernet port via M12 X-coded 8-pin connector | ||
| NRU-162S-AWP | ||
| Port 0: 1x Gigabit Ethernet port via M12 X-coded 8-pin connector Port 1 to Port 4: 4x GbE ports by Intel® I350-AM4 via M12 X-coded 8-pin connector |
||
| PoE+ | NRU-162S-AWP | |
| IEEE 802.3at PoE+ PSE for Port 1 to Port 4 with 50W total power budget | ||
| USB | 2x USB 2.0 ports via M12 A-coded 8-pin connector 1x USB Type C port (for system flashing and OTG, under service door) |
|

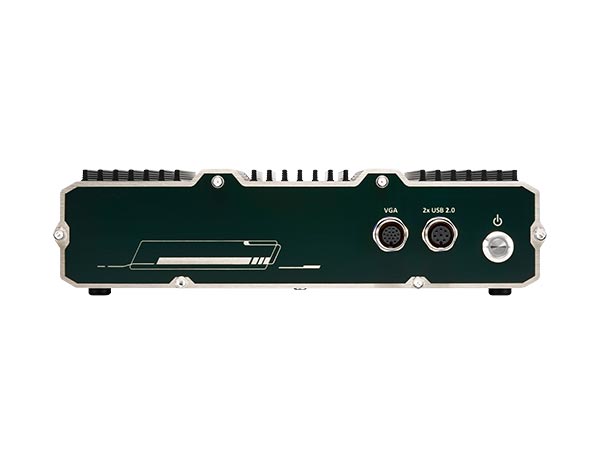

| Video Port | 1x VGA, supporting 1920×1080 at 60Hz via M12 A-coded 17-pin connector | |
| Serial Port | 1x RS-232 port via M12 A-coded 8-pin connector | |
| CAN bus | 1x CAN FD port via M12 A-coded 8-pin connector | |
| Isolated DIO | 1x isolated GPS PPS input via M12 A-coded 8-pin connector | |
| Internal I/O Interface | |
|---|---|
| Mini PCI Express | 1x full-size mini PCI Express socket (PCIe + USB 2.0) |
| M.2 | 1x M.2 3042/3052 B key (USB 3.2 Gen 1 + USB 2.0) for LTE/5G module with dual micro SIM support |
| Storage | |
| M.2 NVMe | 1x M.2 2242 M key socket (PCIe Gen 3×1) for NVMe SSD |
| Power Supply | |
| DC Input | 8V to 35V DC input and ignition power control via M12 A-coded, 5-pin connector (IGN/ GND/ V+) [1] |
| Mechanical | |
| Dimension | 225 mm (W) x 136 mm (D) x 55 mm (H) (excluding wall-mount) |
| Weight | 3.0 kg (excluding wall-mount) |
| Mounting | VESA 75 mount (standard), Wall-mount (standard) |
| Environmental | |
| Operating Temperature | -25°C to 70°C with passive cooling (20W TDP mode) [2] |
| With full CPU+GPU stressing: 1. NRU-160-AWP non-throttling at 70°C with 20W TDP mode 2. NRU-160-AWP non-throttling at 60°C with 25W TDP mode (Orin NX MAXN) |
|
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | MIL-STD-810H, Method 514.8, Category 4 |
| Shock | MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/ FCC Class A, according to EN 55032 & EN 55035 EN 50121-3 (EN 50155:2017, Clause 13.4.8) (NRU-162S-AWP only) |
[1]The required DC input range is 8V to 35V when the system load is under 60W. The required DC input range is 12V to 35V when the system load is between 60W to 96W. The required DC input range is 20V to 35V when the system load is between 96W to 160W.
[2]For sub-zero and over 60°C operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
