産業用PC

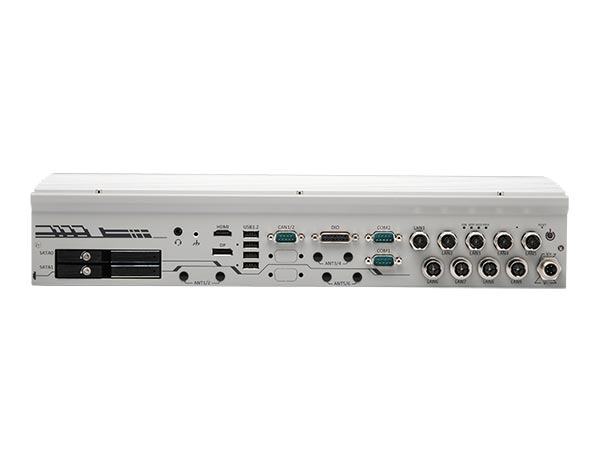

GT-92RL-H
NVIDIA® 2000 ADAを搭載し、Intel®第14/13/12世代Core™プロセッサーをサポートして、絶縁付きの43V～160V DC入力に対応するEN50155 & EN45545 19"ラックマウント鉄道GPUコンピュータ
BOX型 Core i9-14900Core i9-13900Core i9-12900Core i7-14700Core i7-13700Core i7-12700Core i5-14000Core i5-13000Core i5-12000Core i3-14000Core i3-13000Core i3-12000 1GPU DC電源 (or ACアダプタ) GPUコンピューティング マシンビジョン 車載 ファンレス DC電源対応 DIO PoE ラックマウント可能
- EN 50155必須テストとEN 45545-2に準拠
- Intel®第14/13/12世代LGA1700プロセッサー（35W/65W）
- NVIDIA® RTX 2000 ADAを搭載するファンレスGPUコンピュータ
- ラックまたは壁掛けに対応する2U 19"シャーシ
- M12 Kコーデッドコネクタを通じた43V～160V広範囲DC入力
- M12 Xコーデッドコネクタを通じたGbE x9ポート
- NVMeストレージ用のPCIe-Gen 4x4搭載M.2 2280 Mキー x1
- MVBモジュール用のフルサイズmPCIeソケット x2
- -40°C～55°Cの広範囲温度ファンレス動作
製品仕様
| System Core | ||
|---|---|---|
| Processor | Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)[1][2] – Intel® Core™ i9-14900/ i9-14900T – Intel® Core™ i7-14700/ i7-14700T – Intel® Core™ i5-14500/ i5-14400/ i5-14500T – Intel® Core™ i3-14100/ i3-14100T |
|
| Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) – Intel® Core™ i9-13900E/ i9-13900TE – Intel® Core™ i7-13700E/ i7-13700TE – Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE – Intel® Core™ i3-13100E/ i3-13100TE |
Support Intel® 12th-Gen Core™ CPU(LGA1700 socket, 35W/ 65W TDP) – Intel® Core™ i9-12900E/ i9-12900TE – Intel® Core™ i7-12700E/ i7-12700TE – Intel® Core™ i5-12500E/ i5-12500TE – Intel® Core™ i3-12100E/ i3-12100TE – Intel® Pentium® G7400E/ G7400TE – Intel® Celeron® G6900E/ G6900TE |
|
| Chipset | Intel® R680E platform controller hub | |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) | |
| Acceleration GPU | NVIDIA® RTX™ 2000 ADA | |
| Memory | Up to 128 GB ECC/ non-ECC DDR5 4800 SDRAM (two SODIMM slots) | |
| AMT | Supports Intel vPro/ AMT 16.0 | |
| TPM | Supports dTPM 2.0 | |
| I/O Interface | ||
| Ethernet Port | 1x GbE Ethernet by Intel I219-LM via M12 x-coded connector(with WoL) 8x GbE Ethernet by Intel I350-AM4 via M12 x-coded connectors |
|
| POE+ | None | |
| CAN Bus | 2x isolated CAN 2.0 port, supporting SocketCAN in Linux | |
| USB | 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors | |
| Video Port | 1x HDMI 1.4, supporting 4096×2160 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
|
| Serial Port | 2x isolated 3-wire RS232/ 422/ 485 port (COM1/ COM2) | |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO | |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out | |
| Storage interface | |
|---|---|
| SATA HDD | 2x hot-swappable HDD trays for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1 |
| M.2 | 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD |
| Internal Expansion Bus | |
| Mini PCI Express | 2x full-size mini PCI Express socket with SIM slot |
| Power Supply | |
| DC Input | 43V to 160V DC input (M12 K-coded) |
| Mechanical | |
| Dimension | 440mm (W) x 250mm (D) x 88mm (H) (excl. rack-mount bracket) |
| Weight | 8.0 kg |
| Mounting | Rack-mounting (optional) and wall-mounting (optional) |
| Environmental | |
| Operating temperature | with 35W CPU -40°C ~ 55°C [1], compliant with EN50155 Class OT2 with 65W CPU -40°C ~ 35°C [1] |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | EN 50155:2021/ IEC 61373, Category I, Class B – Body mounted |
| Shock | EN 50155:2021/ IEC 61373, Category I, Class B – Body mounted |
| EMC | EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035 |
| EN 50155 | All mandatory sections of EN 50155:2021 (110V) – Interruptions of voltage supply Class S3: 0V/ 20ms – Supply change-over Class C2: 0V/ 30ms – Voltage withstand test: 1500V DC |
| EN 45545 | EN 45545-2 (Fire protection on railway vehicles |
[1] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
